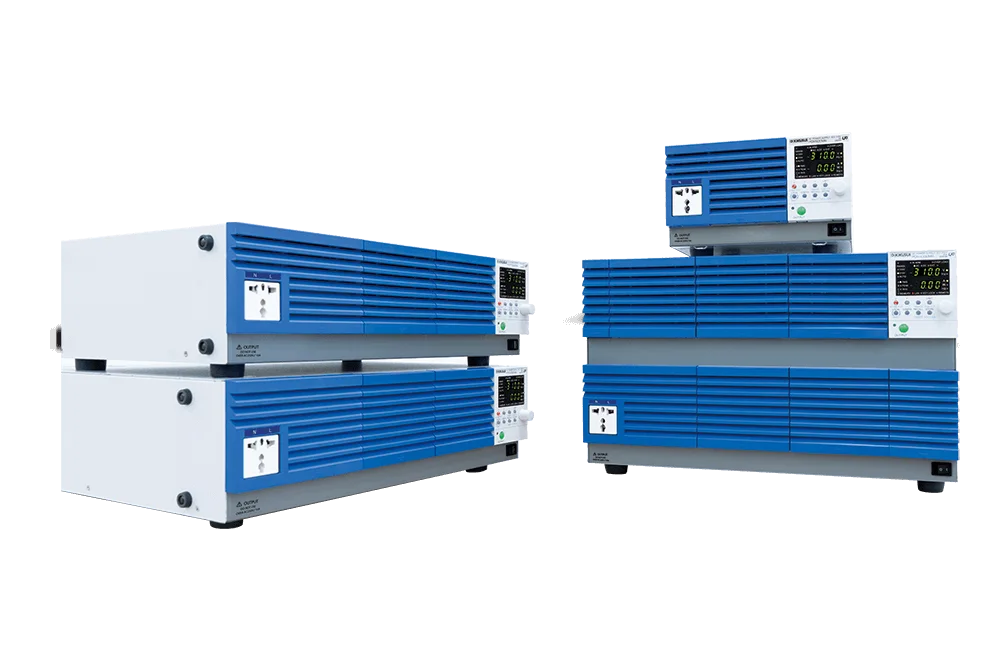

Compact AC Power Supply PCR-MA Series
Compact, switching AC power supply
PWM inverter method
Features
Wide-range, programable output voltage up to 310 Vrms
with a user friendly interface designed for maximum practicality and convenience.
The PCR-MA AC power supply series is a PWM inverter type (switching) power supply that builds on the success of our conventional model, the PCR-M. Maximum output voltage has been increased to 310 Vrms AC while maintaining a compact, portable design. The digital interface now includes LAN (LXI) and USB as standard, with GPIB as a option for easy integration into any test system. The LXI compliant LAN interface allows the operator to easily monitor and control the instrument via virtual interface wherever they are.
Various features including a remote sensing function have been introduced to ensure precise voltage and current measurements. Other features including DC mode, memory functions, and various protections make the PCR-MA the most accessible AC power supply on the market.
Compact

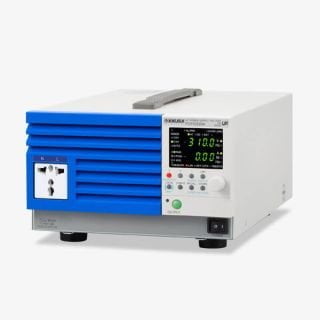

Small enough to fit on your work desk! Only 214W × 124H × 350D mm! Weighs only 6.5kg and easy to carry!（PCR500MA）
Versatile output modes
In addition to “AC mode” and “DC mode”, an AC+DC external analog interface board option (EX08-PCR-MA) allows for output control via “EXT-AC mode” and “EXT-DC mode” through external analog signals.
| Output Mode | Description |
|---|---|
| AC mode | AC output |
| DC mode | DC output |
| AC+DC mode | Superimpose DC voltage on the AC voltage and output *1 |
| EXT-AC mode | Output sine waves using external DC signals *2 |
| EXT-DC mode | Simply amplify and output the waveform applied externally *2 |
*1 Only communication commands *2 Only when the analog interface board (EX08-PCR-MA) is installed.
AC mode
The PCR-MA output voltage range can be set in two ranges (0-155V, 0-310V) with a programmable frequency up to 500 Hz in order to comply with nominal, single phase voltage anywhere in the world. This is especially useful for power supply systems found in aircraft, boats, and actuators.
| Settable Voltage Range | Frequency setting range | |
|---|---|---|
| 155 V range | 310 V range | |
| 0.0 V to 157.5 V | 0.0 V to 315.0 V | 40 Hz to 500 Hz |
DC mode
The output voltage can be varied from ±0V to 219V or ±0V to 438V
| Output Voltage Setting | |
|---|---|
| 155 V range | 310 V range |
| -222.5 V to +222.5 V | -445 V to +445 V |
AC+DC mode
The output voltage can be varied from ±0V to 219V or ±0V to 438V
| Output Voltage Setting | |
|---|---|
| 155 V range | 310 V range |
| -222.5 V to +222.5 V | -445 V to +445 V |
* AC + DC mode is a function used to superimpose DC voltage on AC voltage or AC voltage on DC voltage. It can only be used with the communication commands.
Versatile measurement capability
THE PCR-MA is capable of measuring the voltage, current and power of AC and DC output. It can also display the true RMS and average (DC) values of the output voltage as well as the true RMS, peak, and average (DC) values for the output current. When used with digital interface, the PCR-MA can also measure apparent power (VA), reactive power (VAR), power factor (PF), and peak hold current.
Sensing function (ON/OFF)
The new remote sensing feature compensates for voltage drops along long load wires to ensure maximum accuracy.
Output-on phase angle
The output-on phase angle can be set in AC mode. The output-off phase angle is turned off at the zero-crossing phase.
Memory function
The PCR-MA can store up to three sets of output voltage, frequency, and limit value setting via front panel. Additionally, when using communication commands, the internal memory can store up to 11 settings.
Maximum peak current
Maximum peak current of up to three times the rated maximum current (rms value) can be output to a capacitor-input rectifier load. Maximum peak current = rated maximum current (rms) × 3.
EXT-AC mode
The output AC voltage value can be varied according to the input DC signal.
EXT-DC mode
Amplifies the waveforms that it receives and outputs the result.
Protection functions
The following protection features are available:
- Protection against non-rated input voltage
- Protection against overheating (OHP)
- Protection against overloading: Current limit (OCP)/monitoring for exceeded power (OPP)/Monitoring for exceeded peak current (OCPP)
- Detection of voltage abnormalities:Increased voltage (OVP)/decreased voltage (LVP)
- Abnormal sensing cable connection detection (SF)
Easy remote control and monitoring from your Web browser!
Use a browser from a PC, smartphone, or tablet to access the web server built into the PCR-MA series for convenient control and monitoring.
[Recommended browser]
Requires for the Microsoft Edge 10 / Requires for the Internet Explorer version 9.0 or laterater / Requires for the Firefox 8.0 or laterater / Requires for the safari / mobile Safari 5.1 or later / Requires for the Chrome 15.0 or later / Requires for the Opera 11.0 or later
*Connecting with a smartphone, tablet, etc. requires a Wi-Fi environment (wireless LAN router etc.).
Applications
AC power supply for standby power measurement.
The PCR-MA can be used alongside the KPM1000 Digital Power Meter to conduct measurements compliant with IEC62301, 1st edition. You can also measure the “standby and off mode power” of household and office electronic equipment as required by standards such as Erp Directive Lot 6.
AC power supply for harmonic current measurement.
When used with the KHA1000 Harmonic/Flicker Analyzer, the PCR-MA can be used to conduct harmonic measurements of power supplies compliant with IEC61000-3-2.
AC power supply for capacitator testing.
Combined with the Contact Checker, the PCR-MA can allow you to detect current flowing throw the capacitor, and verify whether it has been connected or not.
DC power supply for simple power supply variation tests.
When used alongside our PBZ40-10 Bipolar Power Supply and PLZ164WH electronic load, the PCR-MA can help conduct simplified power variation tests for high voltage DC components found in automotive equipment.
Specifications
For product-specific specifications, please refer to the individual product pages.
Output rating AC mode
| Item/Model | PCR500MA | PCR1000MA | PCR2000MA | PCR4000MA | |
|---|---|---|---|---|---|
| Voltage range (155V/310V range) | Rated voltage range | 0V to 155V/0V to 310V | |||
| Settable voltage range | 0 V to 157.5 V/0 V to 315.0 V | ||||
| Voltage setting resolution | 0.1 V | ||||
| Voltage setting accuracy *1 | ±(1 % of set + 0.6 V/1.2 V) | ||||
| Number of output phases | Single phase | ||||
| Maximum current *2 | 5 A/2.5 A | 10A/5A | 20A/10A | 40A/20A | |
| Maximum peak current *3 | 15A/7.5A | 30A/15A | 60A/30A | 120A/60A | |
| Load power factor | 0 to 1 (leading or lagging) | ||||
| Power capacity | 500VA | 1kVA | 2kVA | 4kVA | |
| Frequency setting range | 40.0 Hz to 500.0 Hz | ||||
| Frequency resolution | 0.1Hz | ||||
| Frequency setting accuracy | ≤ ±2 × 10-4 | ||||
*1. For an output voltage of 13.5 V to 155 V/27 V to 310 V, an output frequency of 45 Hz to 65 Hz, no load, and 23°C ± 5°C. *2. For an output voltage of 1 V to 100 V/2 V to 200 V. Limited by the power capacity when the output voltage is 100 V to 155 V/200 V to 310 V. *3. For the capacitor-input rectifying load. Limited by the maximum current.
Output rating DC mode
| Item/Model | PCR500MA | PCR1000MA | PCR2000MA | PCR4000MA | |
|---|---|---|---|---|---|
| Voltage range (155V/310V range) | Rated voltage range | -219 V to +219 V/-438 V to +438 V | |||
| Settable voltage range | -222.5 V to +222.5V/-445.0 V to +445.0 V | ||||
| Voltage setting resolution | 0.1 V | ||||
| Voltage setting accuracy *4 | ±(1 % of set + 0.6 V/1.2 V) | ||||
| Maximum current (output 155 V/310 V range) *5 | 4A/2A | 8A/4A | 16A/8A | 32A/16A | |
| Maximum instantaneous current (output 155 V/ 310 V range) *6 | 12A/6A | 24A/12A | 48A/24A | 96A/48A | |
| Power capacity | 400W | 800W | 1600W | 3200W | |
*4. For an output voltage of 19 V to 219 V/38 V to 438 V, no load, and 23°C ± 5°C. *5. For an output voltage of 1.4 V to 100 V/2.8 V to 200 V. Limited by the power capacity when the output voltage is 100 V to 219 V/200 V to 438 V. *6. Limited by the maximum current.
Output voltage stability
| Item/Model | PCR500MA | PCR1000MA | PCR2000MA | PCR4000MA |
|---|---|---|---|---|
| Line regulation *7 | ≤ ±0.15 % | |||
| Load variation (output 155 V/310 V range) *8 | 40 Hz to 100 Hz, DC : ≤ ±0.15V/±0.3V
Other than above : ≤ ±0.5 V/±1 V | |||
| Output frequency variation *9 | ≤ ±1 % | |||
| Ripple noise *10 | 0.8 Vrms/1.6 Vrms (TYP) | |||
| Ambient temperature variation *11 | 100 ppm/°C (TYP) | |||
| Output voltage waveform distortion ratio *12 | ≤ 0.5 % | |||
| Output voltage response speed *13 | 150 μs (TYP) | |||
| Efficiency *14 | ≥ 70 % | |||
*7. For changes in the rated range. *8. For an output voltage of 80 V to 155 V/160 V to 310 V, a load power factor of 1, output voltage variation between 0 A and maximum current, using the output terminal on the rear panel. *9. For an output voltage of 100 V/200 V and a load power factor of 1. Output voltage variation with 60 Hz as a reference. *10. For 5 Hz to 1 MHz components in DC mode using the output terminal on the rear panel. *11. For an output voltage of 100 V/200 V, an output current 0 A, within the operating temperature range. *12. For an output voltage of 50 V to 155 V/100 V to 310 V, a load power factor of 1, in AC mode. *13. For an output voltage of 100 V/200 V, a load power factor of 1, and an output current variation between 0 A and maximum current. *14. For AC mode, at an output voltage of 100 V/200 V, maximum current, a load power factor of 1, and an output frequency of 40 Hz to 500 Hz.
Indicators *15
| Item/Model | PCR500MA | PCR1000MA | PCR2000MA | PCR4000MA | ||
|---|---|---|---|---|---|---|
| Voltage measurement | Resolution | 0.1 V | ||||
| Accuracy (output 155 V/310 V range) | RMS, AVE *16 | 45 Hz to 65 Hz, DC : ±(0.5 % of reading +0.3 V/0.6 V) Other than above : ±(0.7 % of reading +0.9 V/1.8 V) | ||||
| Current measurement | Resolution | 0.01 A | 0 A to 99.99 A (RMS, AVE): 0.01 A 100 A to (RMS, AVE), IPK: 0.1A | |||
| Accuracy (output 155 V/310 V range) | RMS, AVE *17 | 45 Hz to 65 Hz, DC: ±(0.5 % of reading +0.02 A/0.01 A)
Other than above: ±(0.7 % of reading +0.04 A/0.02 A) | 45 Hz to 65 Hz, DC: ±(0.5 % of reading +0.04 A/0.02 A)
Other than above: ±(0.7 % of reading +0.08 A/0.04 A) | 45 Hz to 65 Hz, DC: ±(0.5 % of reading +0.08 A/0.04 A)
Other than above: ±(0.7 % of reading +0.16 A/0.08 A) | 45 Hz to 65 Hz, DC: ±(0.5 % of reading +0.16 A/0.08 A)
Other than above: ±(0.7 % of reading +0.32 A/0.16 A) | |
| Wattmeter | Resolution | 0.1W | 0.1W (<1 000 W), 1 W (1000 W≤) | |||
| Accuracy *18 | ±(2 % of reading +0.5 W) | ±(2 % of reading +1 W) | ±(2 % of reading +2 W) | ±(2 % of reading +4 W) | ||
*15 RMS, average (AVE), and power (W) are derived using the following equations.
RMS (true rms computation) = ( Σ (square of the instantaneous voltage or instantaneous current)/ the number of samples.)
AVE = (instantaneous voltage or instantaneous current)/the number of samples
WAC = Σ (instantaneous voltage x instantaneous current)/the number of samples
WDC = VAVG x IAVG
•Sample period: 100 ms to 125 ms for AC output (an integer multiple of the output waveform period. 125 ms for DC output.
•Update interval: Approx. 3 times/s, averaging over 2s when averaging is turned on.
•Peak current value holds the maximum value of the absolute value of the peak current for 0.3s or approximately 5s.
•The voltage display is set to RMS in AC mode and AVE in DC mode.
*16 AC mode: For an output voltage of 13.5 V to 155 V/27 V to 310 V and 23°C ± 5°C.
DC mode: For an output voltage of 19 V to 219 V/38 V to 438 V and 23°C ± 5°C.
*17 For waveforms with a crest factor of 3 or less. At 5 % to 100 % of the maximum rated current, 23°C ±5°C
*18 For an output voltage of 50 V or greater, an output current in the range of 10 % to 100 % of the maximum rated current, a load power factor of 1, an output frequency of 45 Hz to 65 Hz or DC, and 23°C ± 5°C.
Input rating
| Item/Model | PCR500MA | PCR1000MA | PCR2000MA | PCR4000MA | |
|---|---|---|---|---|---|
| AC input | Nominal input rating | 100 Vac to 120 Vac/200 Vac to 240 Vac, 50 Hz/60 Hz, single phase | |||
| Input voltage range | 90Vac to 132Vac/180Vac to 264Vac (auto detection at power-on) | ||||
| Input frequency range | 47 Hz to 63 Hz | ||||
| Apparent power | Approx. 800 VA | Approx. 1600 VA | Approx. 3200 VA | Approx. 6400 VA | |
| Power factor *19 | 0.9 (standard value) | ||||
| Current | Input 90 V to 115 V | 8 A/6.3 A or less | 16 A/12.5 A or less | 32 A/25 A or less | 64 A/50 A or less |
| Input 180 V to 230 V | 4 A/3.2 A or less | 8 A/6.3 A or less | 16 A/12.5 A or less | 32 A/25 A or less | |
*19. For an output voltage of 100 V/ 200 V (155 V/310 V range), maximum current, and a load power factor of 1.
General
| Item/Model | PCR500MA | PCR1000MA | PCR2000MA | PCR4000MA | |
|---|---|---|---|---|---|
| Insulation resistance | Between input and case, between output and case, between input and output | 500 Vdc, 30 MΩ or more | |||
| Withstanding voltage | Between input and case, between output and case, between input and output | 1.5 kVac for 1 minute | |||
| Earth continuity | 25 Aac/0.1 Ω or less | ||||
| Electromagnetic compatibility *1 *2 | Conforms to the requirements of the directive and standard below. EMC Directive 2014/30/EU EN 61326-1 (Class A), EN 55011 (Class A, Group 1), EN 61000-3-2, EN 61000-3-3 | ||||
| Applicable under the following conditions: Load cables are less than 30 m. Other cables connected to the product are all less than 3 m. | |||||
| Safety *1 | Conforms to the requirements of the directive and standard below. Low Voltage Directive 2014/35/EU EN 61010-1 (Class I, Pollution Degree 2) | ||||
| Circuit method | PWM inverter system | ||||
| Environment | Operating environment | Indoor use, overvoltage category II | |||
| Operating temperature and humidity range | 0°C to 40°C, 20 % to 80 %rh (no condensation) | ||||
| Storage temperature and humidity range | -10°C to 60°C, 0 % to 90 %rh (no condensation) | ||||
| Altitude | Up to 2000 m | ||||
| Dimensions | 214(8.43)W×124(4.88)H× 350(13.78)D mm(inches) | 429(16.89)W×128(5.04)H× 350(13.78)D mm(inches) | 429(16.89)W×128(5.04)H× 450(17.72)D mm(inches) | 429(16.89)W×262(10.31)H× 520(20.47) Dmm (inches) | |
| Weight | Approx. 6.5kg | Approx. 11kg | Approx. 16kg | Approx. 32kg | |
| Input terminal | (Inlet) | M4 terminal block | M6 terminal block | M6 terminal block | |
| Output terminal | M4 terminal block | M6 terminal block | |||
| Accessories | Power cord | 1 pc.
with plug Length: Approx. 2.5 m | 1 pc.
3-core flexible cable Nominal cross-sectional area : 3.5 mm2 without plug Length: Approx. 3 m | 1 set
with ferrite core 1-core cable : 3pcs. Nominal cross-sectional area : 5.5 mm2 without plug Length: Approx. 3 m | 1 set
1-core cable : 3pcs. Nominal cross-sectional area : 14 mm2 without plug Length: Approx. 3 m |
| Core | 1 pc. | 1 pc. | 1 pc. | 1 pc. | |
| Cable tie | 1 pc. | 1 pc. | 1 pc. | 1 pc. | |
| CD-ROM *3 | 1 disc | ||||
| Packing List(1 pc.), Quick Reference(Japanese 1 sheet, English 1 sheet), Safety Information(1 copy) | |||||
*1 Not applicable to custom order models. *2 Only on models that have the CE marking on the panel. *3 Included in the user’s manual, and communication interface manual.
Analog interface specifications (EX08-PCR-MA: optional)
| Input terminal | Maximum allowable input voltage | ±15 V | |
|---|---|---|---|
| Type | BNC | ||
| Input impedance | 10 kΩ ±5 % (unbalanced) | ||
| Isolation voltage | 42 Vpk | ||
| EXT-AC mode *1 | Input voltage range | 0 V to ±10 V (DC) | |
| Voltage amplification rate (155 V/310 V range) | 15.5 times or 31 times | ||
| Frequency setting range | 40 Hz to 500 Hz | ||
| EXT-DC mode | Input voltage range *2 | ATT OFF | 0 V to ±2.19 Vpeak (0 to 155 Vrms sine wave) |
| ATT ON | 0 V to ±10 V (DC) | ||
| Input frequency range | ATT OFF | 40 Hz to 500 Hz (sine wave) / 40 Hz to 100 Hz (square wave) /DC | |
| Frequency characteristics | ATT OFF | -0.3 dB at 500 Hz (typical value) with 55 Hz as a reference | |
| Voltage amplification rate (155 V/310 V range) | ATT OFF | 100 times or 200 times | |
| ATT ON | 21.9 times or 43.8 times | ||
| Output voltage distortion ratio *3 | Main unit specifications + 0.5 % or less | ||
*1 ATT is always set to on. *2 Measurable range for voltage, current and power is DC and from 40 Hz to 500 Hz. The frequency is set based on the input waveform cycle*3 In the EXT-AC mode, when direct current is input. In the EXT-DC mode, when a sine wave with [IB22] [EX08-PCR-MA] [IB22] Analog interface board [EX08-PCR-MA] 0.1 % or less distortion rate is input.
Specifications of the communication interfacen
| LAN | Complies with IEEE 802.3 100base-TX/10Base-T Ethernet 1.5 LXI Device Specification 2016, RJ-45 connector |
|---|---|
| USB | Complies with the USB 2.0 specifications. Communication speed: 480 Mbps (High-speed) Complies with the USBTMC-USB488 device class specifications. |
| GPIB (IB22: optional) | Complies with IEEE STD. 488.1-1978 specifications. SH1, AH1,T6, L4, SR1, RL1, PP0, DC1, DT1, C0, E1 |
| Common specifications | Software protocol: IEEE 488.2 STD 1992 Command language: SCPI Specification 1999.0 |
