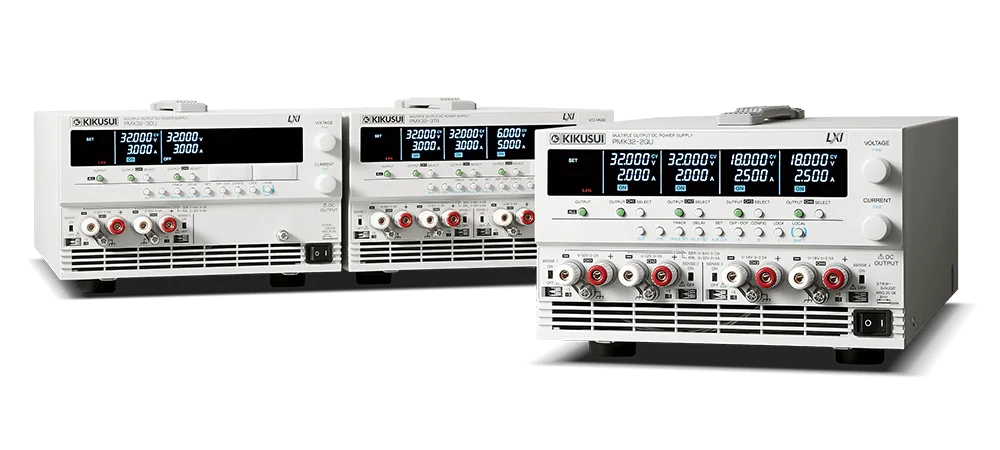

Compact Multi-Output DC Power SupplyPMX-MultiSeries
- Power supply for tests involving transistors, IC circuits and operational amplifiers
- Integration into semiconductor evaluation test systems
- Power supply for research and development and manufacturing line integration
Each output is isolated
Simple series/parallel connection between channels
200 W Output Capacity.
Three models with 2, 3 and 4 outputs.
Features
Three models with 2, 3 and 4 outputs.
Ideal for use in research and development and on production lines
The PMX-Multi series is a multi-channel DC power supply with isolated outputs on each
channel. The PMX32-3DU (2ch), PMX32- 3TR (3ch), and PMX32-2QU (4ch) are all capable
of simultaneous output in all channels and come with an output tracking feature.
Also, channels 1 & 2 of each model can be easily connected in either series or parallel to
increase the output voltage/current at the press of a button. LAN (LXI Compliant), USB, and
RS232C are included as standard digital interfaces for easy system integration.
The PMX-Multi benefits from a low noise, series regulator design that makes this series the
perfect choice for experiments involving transistors, IC circuits, and op amp circuits as well
as R&D and production line applications.
- Three models with 2, 3 and 4 outputs
- Each output is isolated
- High setting resolution (Voltage: 1 mV, Current: 0.1 mA)
- Tracking control in all channels
- Simultaneous display of all channel statuses
- ON/OFF delay of each output
- Simple series/parallel connection between channels (CH1 & CH2)
- LAN (LXI Compliant)/USB/RS232C standard interface
- Turning output on and off using an external contact
- Remote sensing function
- Key lock, 3-point preset memory function
- High quality LCD panel for improved visibility
| Image | Specifications | Output | Ripple | Line regulation | Load regulation | Input | Weight | Price | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | CH | CV | CC | CV | CC | CV | CC | CV | CC | AC | Power | |||
 | PMX32-3DU | 1 | 32.000V | 3.000A | 500μV | 1mA | 3mV | 0.01% + 0.25mA | 4mV | 5mA | 217Vac * ± 10 ％ | 700VA | Approx. 13 kg(28.66 lb) | 125,000円 （税込：137,500円） |
| 2 | 32.000V | 3.000A | 1mA | 3mV | 4mV | |||||||||
 | PMX32-3TR | 1 | 32.000V | 3.000A | 1mA | 3mV | 4mV | 900VA | 148,000円 （税込：162,800円） | |||||
| 2 | 32.000V | 3.000A | 1mA | 3mV | 4mV | |||||||||
| 3 | 6.000V | 5.000A | 2mA | 1mV | 5mV | |||||||||
 | PMX32-2QU | 1 | 32.000V | 2.000A | 1mA | 3mV | 2mV | 800VA | 168,000円 （税込：184,800円） | |||||
| 2 | 32.000V | 2.000A | 1mA | 3mV | 2mV | |||||||||
| 3 | 18.000V | 2.500A | 1mA | 1mV | 3mV | |||||||||
| 4 | 18.000V | 2.500A | 1mA | 1mV | 3mV | |||||||||
* 100 Vac, 117 Vac, 200 Vac and 234 Vac are factory options.
Simple Series/Parallel Connection Between Channels

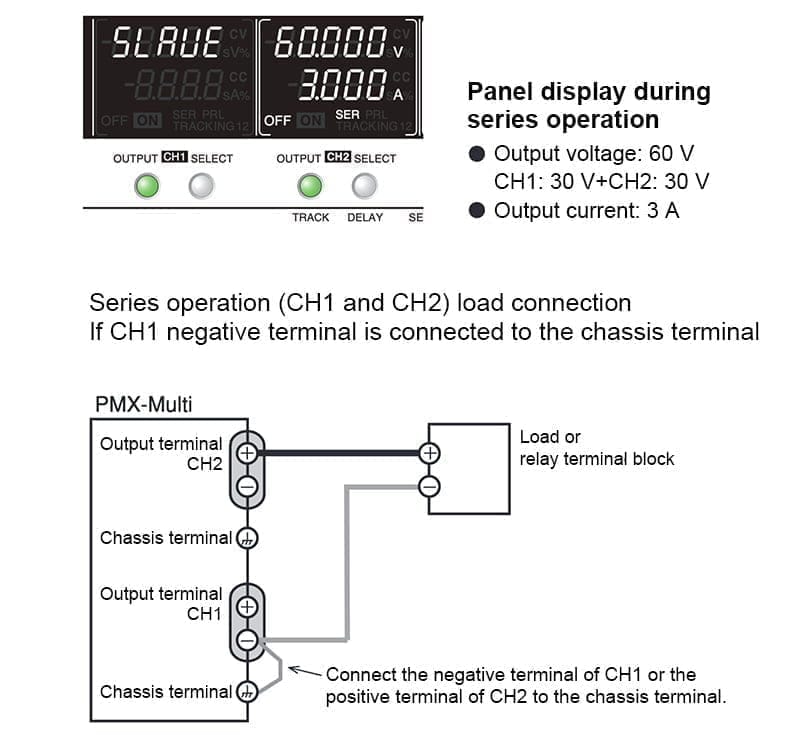

Series operation
CH1 and CH2 can be connected in series to increase the overall voltage output range. CH2 operates as master and CH1 as slave. The total output voltage will be the sum of CH1 and CH2.

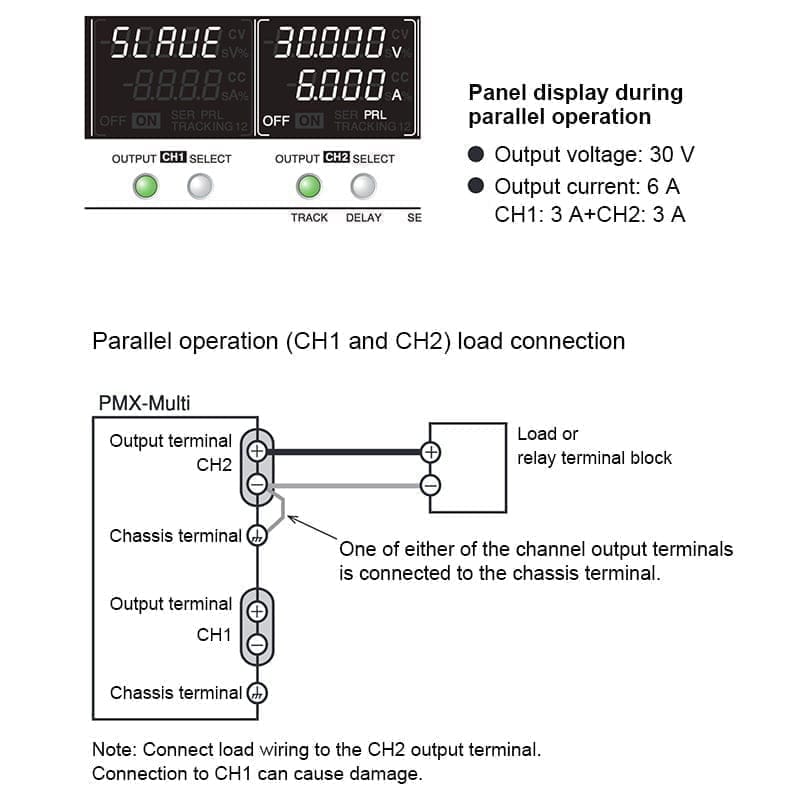

Parallel operation
CH1 and CH2 can beconnected in parallel to increase the overall current range. CH2 operates as master and CH1 as slave. The total output current will be the sum of CH1 and CH2.
Tracking Feature
The tracking feature allows the operator to control the ratio for increase/decrease of output among multiple channels within the power rating. This feature can be used freely among all channels with two ratio options:absolute value variation and variation ratio.
Absolute value change
This mode allows for voltage/current settings in all specified channels to change at the same rate as a selected channel.
Variation Ratio
This mode allows for voltage/current settings in all specified channels to change in equal proportion to a selected voltage or current rating.*The variable range is from 0.0% to 200.0%

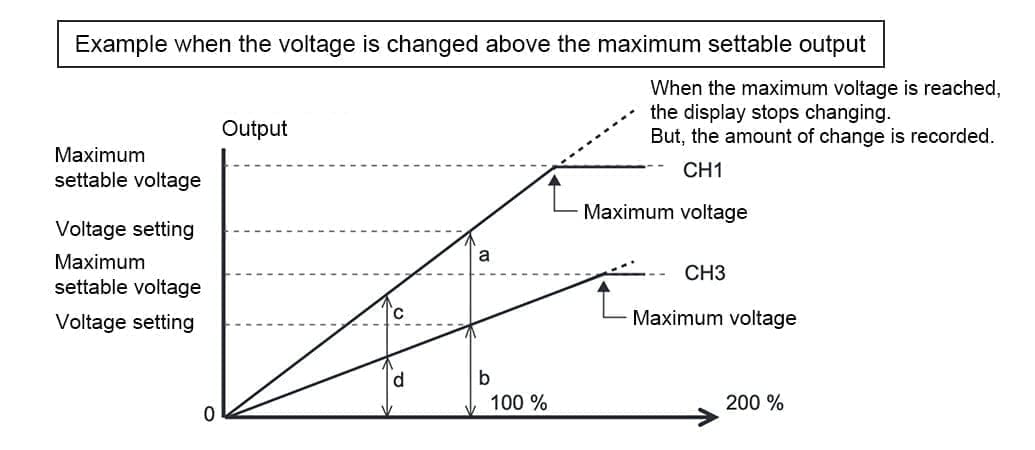

Example of operation of tracking feature: PMX32-2QU
When you turn the rotary knob during tracking operation, the outputs change at the same percentage as the preset output percentage (b/a).
b/a = d/c
This proportional expression is satisfied.

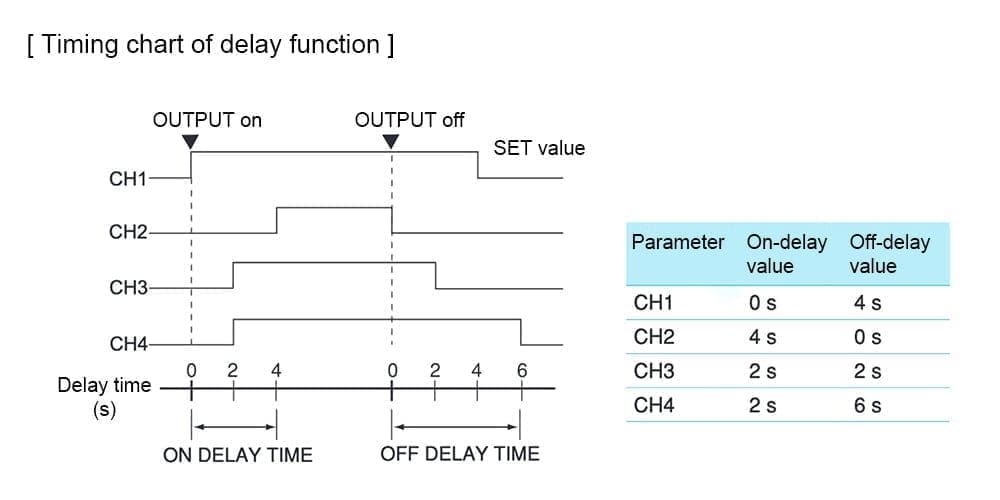

Delay Function
The optional setting creates a programmable delay between the OUTPUT switch being activated and the actual output being released. The setting range for DELAY TIME is from 0.1 – 99.9 seconds.
When power supplies are not activated properly, there is the slight risk of damage being caused to the overall system. For this reason ON delay control is a very important feature that is required for power source output. This feature is also necessary when turning output OFF, and is highly convenient for operating circuits.
Note: The actual rise/fall time with output off will vary depending on the output and load conditions. Note that the timing chart above ignores rise and fall time. There are cases where the actual delay time varies by a few tens of milliseconds even when the delay time is set to 0 seconds.
LAN (LXI Compliant)/USB/RS232C standard interface
Specifications
AC input
| Model | PMX32-3DU | PMX32-3TR | PMX32-2QU |
|---|---|---|---|
| Nominal input rating | 217 Vac *1, 50 Hz/ 60 Hz, single phase | ||
| Input voltage range | ± 10 ％ | ||
| Input frequency range | 47 Hz to 63 Hz | ||
| Inrush current *2 | 150 A | ||
| Power (MAX) | 700 VA | 900 VA | 800 VA |
* 1. 100 Vac, 117 Vac, 200 Vac, and 234 Vac are factory options. * 2. Excludes the charge current component that flows through the capacitor of the internal EMC filter circuit immediately after the POWER switch is turned on (for approximately 1 ms).
Output
| Model | PMX32-3DU | PMX32-3TR | PMX32-2QU | ||
|---|---|---|---|---|---|
| Rating | Output voltage | CH1 | 32.000 V | 32.000 V | 32.000 V |
| CH2 | 32.000 V | 32.000 V | 32.000 V | ||
| CH3 | – | 6.000 V | 18.000 V | ||
| CH4 | – | – | 18.000 V | ||
| Output current | CH1 | 3.000 A | 3.000 A | 2.000 A | |
| CH2 | 3.000 A | 3.000 A | 2.000 A | ||
| CH3 | – | 5.000 A | 2.500 A | ||
| CH4 | – | – | 2.500 A | ||
| Constant voltage | Maximum voltage setting | CH1 | 33.600 V | 33.600 V | 33.600 V |
| CH2 | 33.600 V | 33.600 V | 33.600 V | ||
| CH3 | – | 6.300 V | 18.900 V | ||
| CH4 | – | – | 18.900 V | ||
| Setting resolution | 1 mV | ||||
| Voltage setting accuracy *1 | ±（0.03 % set +5 mV） | ||||
| Input line regulation *2 | CH1 | 3 mV | 3 mV | 3 mV | |
| CH2 | 3 mV | 3 mV | 3 mV | ||
| CH3 | – | 1 mV | 1 mV | ||
| CH4 | – | – | 1 mV | ||
| Load regulation *3 | CH1 | 4 mV | 4 mV | 2 mV | |
| CH2 | 4 mV | 4 mV | 2 mV | ||
| CH3 | – | 5 mV | 3 mV | ||
| CH4 | – | – | 3 mV | ||
| Transient response *4 | 50 μs | ||||
| Ripple noise (rms) *5 | 500 μV | ||||
| Command delay | 80 ms | ||||
| Rise time (at rated load) *6 | 10 ms ± 30 % | ||||
| Fall time (at no load) *7 | CH1 | 350 ms ± 30 % | 350 ms ± 30 % | 350 ms ± 30 % | |
| CH2 | 350 ms ± 30 % | 350 ms ± 30 % | 350 ms ± 30 % | ||
| CH3 | – | 220 ms ± 30 % | 240 ms ± 30 % | ||
| CH4 | – | – | 240 ms ± 30 % | ||
| Temperature coefficient (TYP) | 100 ppm/℃ | ||||
| Constant current | Maximum current setting | CH1 | 3.150 A | 3.150 A | 2.100 A |
| CH2 | 3.150 A | 3.150 A | 2.100 A | ||
| CH3 | – | 5.250 A | 2.625 A | ||
| CH4 | – | – | 2.625 A | ||
| Setting resolution | 0.1 mA | ||||
| Current setting accuracy *1 | ±（0.3 % set + 0.1 % rating) | ||||
| Input line regulation *2 | 0.01 % + 0.25 mA | ||||
| Load regulation *8 | 5 mA | ||||
| Ripple noise (rms) *5 | CH1 | 1 mA | 1 mA | 1 mA | |
| CH2 | 1 mA | 1 mA | 1 mA | ||
| CH3 | – | 2 mA | 1 mA | ||
| CH4 | – | – | 1 mA | ||
| Temperature coefficient (TYP) | 200 ppm/℃ | ||||
* 1. At an ambient temperature of 23 °C ±5 °C. * 2. 90% to 100% or 100% to 110% of the nominal input voltage rating, rated load. * 3. The amount of change that occurs when the load is changed from no load to rated load at the rated output voltage. The value is measured at the sensing point. * 4. The amount of time required for the output voltage to return to a value within “rated output voltage ± (0.05% + 10 mV).” When the load current is changed from 10% to 100% of the rated output current. The value is measured at the sensing point. * 5. When the measurement frequency bandwidth is 5 Hz to 1 MHz. * 6. The time for the output voltage to rise from 10% to 90% of the rating when the output is turned on. * 7. The time for the output voltage to fall from 90% to 10% of the rating when the output is turned off. * 8. The amount of current change when the load is changed from 10% of the rated voltage or 1 V, whichever is higher, to the rated voltage at rated output current.
Display function
| Model | PMX32-3DU | PMX32-3TR | PMX32-2QU | ||
|---|---|---|---|---|---|
| Voltmeter | Maximum display | 99.999 (fixed decimal point) | |||
| Display accuracy *1 | ±（0.1 % of reading +10 mV） | ||||
| Ammeter | Maximum display | 9.999 (fixed decimal point) | |||
| Display accuracy *1 | ±（0.2 % of reading +5 mA） | ||||
| Operation display | OUTPUT ON/OFF | Output on: “ON” display (green) Output off: “OFF” display | |||
| Output-on delay/ off delay | Displays “DELAY SET” when set. “DELAY” blinks during output-on delay/ off delay. “DELAY” is displayed after the output-on delay/off delay has passed. | ||||
| CV operation | “CV” display (green) | ||||
| CC operation | “CC” display (red) | ||||
| Alarm operation | Displays “ALARM” (red) when a protection function is activated. | ||||
| Memory | Displays “PRESET A,” “PRESET B,” or “PRESET C” when a memory area is in use. | ||||
| key lock | Displays “LOCK” when the keys are locked. | ||||
| Tracking | Displays “TRACKING 1” or “TRACKING 2” when tracking is in operation. | ||||
| Remote operation | Displays “REMOTE” during remote control. | ||||
| LAN operation | Displays or blinks “LAN” (depending on the status).
| ||||
*1. At an ambient temperature of 23 °C±5 °C.
Protection functions
| Model | PMX32-3DU | PMX32-3TR | PMX32-2QU | |
|---|---|---|---|---|
| Overvoltage protection （OVP） | Operation | Turns the output off, displays “OVP,” and displays “ALARM” (red). | ||
| Selectable range | 10% to 110% of the rated output voltage | |||
| Setting accuracy | ±(1 % of rating) | |||
| Setting resolution | 1 mV | |||
| Overcurrent protection (OCP) | Action *1 | Turns the output off, displays “OCP,” and displays “ALARM” (red). | ||
| Selectable range | 10% to 110% of the rated output current | |||
| Setting accuracy | ±(1 % of rating) | |||
| Setting resolution | 0.1 mA | |||
| Overheat protection （OHP） | Operation | Turns the output off, displays “OHP,” and displays “ALARM” (red). | ||
*1. This does not protect against the discharge current peak that is generated from the capacitors inside the product’s output section when the load is changed suddenly.
Signal output
| Model | PMX32-3DU | PMX32-3TR | PMX32-2QU | |
|---|---|---|---|---|
| Status Signal output *1 | OUTPUT ON STATUS | On when output is on. | ||
| ALARM STATUS | On when an alarm is activated (OVP, OCP, OHP). | |||
| POWER ON STATUS | Turns on when the power is turned on | |||
*1. This does not protect against the discharge current peak that is generated from the capacitors inside the product’s output section when the load is changed suddenly.
Control functions
| Model | PMX32-3DU | PMX32-3TR | PMX32-2QU | |
|---|---|---|---|---|
| External control | Output on/off control (OUTPUT ON/OFF CONT) | Logic selectable:
| ||
Sensing
| Model | PMX32-3DU | PMX32-3TR | PMX32-2QU |
|---|---|---|---|
| Sensing | 0.6 V for a single line (but the output terminals are controlled at the rated voltage) | ||
Parallel operation / Series operation
Parallel operation
| Model | PMX32-3DU | PMX32-3TR | PMX32-2QU | |
|---|---|---|---|---|
| Applicable channels | Master: CH2, slave: CH1 | |||
| Constant voltage | Operating range | 0 V to 32 V | ||
| Selectable range | 0 V to 33.6 V | |||
| Setting accuracy *1 | 0.3 % set + 0.1 % rating | |||
| Setting resolution | 1 mV | |||
| Constant current | Operating range | 0 A to 6 A | 0 A to 4 A | |
| Selectable range | 0 A to 6.3 A | 0 A to 4.2 A | ||
| Setting accuracy *1 | 0.4 % set + 0.1 % rating | |||
| Setting resolution | 0.2 mA | |||
| Voltmeter | Maximum display | 99.999 (fixed decimal point) | ||
| Display accuracy *1 | ±（0.5 % of reading + 10 digit） | |||
| Ammeter | Maximum display | 9.999 (fixed decimal point) | ||
| Display accuracy *1 | ±（1 % of reading + 10 digit） | |||
*1. At an ambient temperature of 23 °C±5 °C.
Series operation
| Model | PMX32-3DU | PMX32-3TR | PMX32-2QU | |
|---|---|---|---|---|
| Applicable channels | Master: CH2, slave: CH1 | |||
| Constant voltage | Operating range | 0 V to 64 V | ||
| Selectable range | 0 V to 67.2 V | |||
| Setting accuracy *1 *2 | 0.3 % set + 0.1 % rating | |||
| Setting resolution | 2 mV | |||
| Constant current | Operating range | 0 A to 3 A | 0 A to 2 A | |
| Selectable range | 0 A to 3.15 A | 0 A to 2.1 A | ||
| Setting accuracy *1 | 0.4 % set + 0.1 % rating | |||
| Setting resolution | 0.1 mA | |||
| Voltmeter | Maximum display | 99.999 (fixed decimal point) | ||
| Display accuracy *1 | ±（0.5 % of reading + 20 digit） | |||
| Ammeter | Maximum display | 9.999 (fixed decimal point) | ||
| Display accuracy *1 | ±（1 % of reading + 5 digit） | |||
* 1 At an ambient temperature of 23 °C ±5 °C. * 2 The value is measured at the sensing point.
Other functions
| Item | PMX32-3DU | PMX32-3TR | ||
|---|---|---|---|---|
| Output-on/ off delay | Applicable channels | All channels | ||
| Setup | Set the output on/off delay time. | |||
| Selectable range | 0.0 s to 99.9 s | |||
| Setting resolution | 0.1 s | |||
| Setting accuracy*1 | ±50 ms | |||
| Memory | Saves three combinations of voltage, current, OVP, OCP, and output-on delay/ off delay settings. | |||
| key lock | Select from the following three modes. • Loc1: Lock all keys except the OUTPUT and memory A, B, and C keys. • Loc2: Lock all keys except the OUTPUT key. • Loc3: Lock all keys and the rotary knob. | |||
| Tracking | Applicable channels | All channels | ||
| Operation mode | Tracking function 1 *2 | Absolute value change | ||
| Tracking function 2 *3 | Percentage change | |||
| Setting accuracy | CV setting accuracy | 0.4 % of rating + 40 mV | ||
| CC setting accuracy | 0.7 % of rating + 10 mA | |||
* 1 The difference between the time from when the reference output reaches 5% of the setting to when the target output reaches 5% of the setting and the delay time setting. * 2 In tracking function 1, the output can be varied within the output range of the reference channel voltage or current. * 3 In tracking function 2, the output can be varied at the same percentage as the reference output in reference to the output at the start of the tracking function.
Interface
| Model | PMX32-3DU | PMX32-3TR | PMX32-2QU | |
|---|---|---|---|---|
| Common specifications | Software protocol | IEEE Std 488.2-1992 | ||
| Command language | Complies with SCPI Specification 1990.0 | |||
| RS232C | Hardware | Complies with the EIA232D specifications (excluding the terminal block) D-sub 9-pin terminal block (male) Baudrate: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps Data length: 8 bits, Stop bits: 1 bit, Parity bit: None Flow control: No | ||
| Program message terminator | LF during reception, LF during transmission. | |||
| USB | Hardware | Standard type B socket. Complies with the USB 2.0 specifications; data rate: 12 Mbps (full speed) | ||
| Program message terminator | LF or EOM during reception, LF + EOM during transmission. | |||
| Device class | Complies with the USBTMC-USB488 device class specifications. | |||
| LAN | Hardware | IEEE 802.3 100Base-TX/10Base-T Ethernet IPv4, RJ-45 terminal block | ||
| Compliant standards | LXI Device Specification 2016 LXI HiSLIP Extended Function Rev. 1.0 LXI VXI-11 Extended Function Rev. 1.0 | |||
| Communication protocol | VXI-11, HiSLIP, SCPI-RAW, SCPI-Telnet | |||
| Message terminator | VXI-11, HiSLIP: LF or END during reception, LF + END during transmission. SCPI-RAW: LF during reception, LF during transmission. | |||
General specifications
| Model | PMX32-3DU | PMX32-3TR | PMX32-2QU | |
|---|---|---|---|---|
| Weight (main unit only) | Approx. 13 kg (28.66 lb) | |||
| Dimensions (mm(inches)) | 214(8.46)W×124(4.88)(MAX155(6.10))H×400(15.75)(MAX435(17.13))D | |||
| Environmental conditions | Operating temperature range | 0 °C to 40 °C (32 °F to 104 °F) | ||
| Operating humidity range | 20 %rh to 85 %rh (no condensation) | |||
| Storage temperature range | -25°C to 70°C (-13°F to 158°F) | |||
| Storage humidity range | 90 %rh or less (no condensation) | |||
| Installation location | Indoor use, altitude of up to 2000 m, overvoltage category II | |||
| Isolation voltage | Between channel | ±70 Vdc | ||
| Between the output and chassis | ±70 Vdc | |||
| Withstanding voltage | Between the primary circuit and chassis | No abnormalities at 1500 Vac for 1 minute. | ||
| Between the primary and secondary circuits | No abnormalities at 2600 Vac for 1 minute. | |||
| Between the secondary circuit and chassis | No abnormalities at 1500 Vdc for 1 minute. | |||
| Insulation resistance | Between the primary circuit and chassis | 500 Vdc, 30 MΩ or more | ||
| Between the primary and secondary circuits | ||||
| Between the secondary circuit and chassis | ||||
| Between channel | ||||
| Cooling system | Forced air cooling using a fan motor | |||
| Common | All channels are independent. The withstanding voltage between channels is ±70 V. | |||
| Grounding polarity | Negative grounding or positive grounding possible | |||
| Accessories | Power cord: 1 pc. (The attached power cord varies depending on the shipment destination.) Output terminal cover set: 1 set, CD-ROM: 1 disc, Packing list: 1 copy, Safety Information: 1 copy | |||
| Electromagnetic compatibility (EMC) *1 *2 | Conforms to the requirements of the directive and standard below. EMC Directive 2014/30/EU EN61326-1 (Class A *3), EN 55011(Class A *3, Group 1 *4) EN 61000-3-2, EN 61000-3-3 Applicable under the following conditions The maximum length of all cabling and wiring connected to the PMX-A must be less than 3 m. | |||
| Safety *1 | Conforms to the requirements of the directive and standard below. Low Voltage Directive 2014/35/EU *2 EN 61010-1 (Class I *5 , Pollution Degree 2 *6) | |||
*1 Does not apply to specially ordered or modified products. *2 Only on models that have the CE marking on the panel. *3 This product confirms to Class A. This product is intended for use in an industrial environment. This product may cause interference if used in residential areas. Such use must be avoided unless the user takes special measures to reduce electromagnetic emissions to prevent interference to the reception of radio and television broadcasts. *4 This is a Group 1 instrument. This product does not generate and/or use intentionally radiofrequency energy, in the form of electromagnetic radiation, inductive and/or capacitive coupling, for the treatment of material or inspection/analysis purpose. *5 This product confirms to Class I. Be sure to ground the protective conductor terminal of this product. If not grounded properly, safety is not guaranteed. *6 Pollution is addition of foreign matter (solid, liquid or gaseous) that may produce a reduction of dielectric strength or surface resistivity. Pollution Degree 2 assumes that only nonconductive pollution will occur except for an occasional temporary conductivity caused by condensation.
Line-up
Options
rack adapter
GPIB Converter
Downloads
