High-performance multifunctional AC Power SuppliesPCR-LE/LE2 Series
New stage of AC power supply supporting new energy field

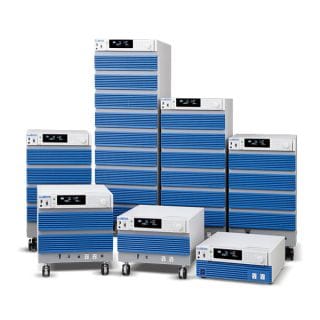

PCR-LE Series
| Product Images | Model | Price | Output capacity | Maximum output current | AC mode (L/H range) | DC mode (L/H range) | ||
|---|---|---|---|---|---|---|---|---|
| Voltage | Maximum output current | Voltage | Maximum output current | |||||
 | PCR500LE | 550,000円 （税込：605,000円） | Single-phase 500 VA | 5 A / 2.5 A | 1 V to 150 V / 2 V to 300 V | 5 A / 2.5 A | ±1.4 V to ±212 V / ±2.8 V to ±424 V | 3.5 A / 1.75 A |
 | PCR1000LE | 760,000円 （税込：836,000円） | Single-phase 1 kVA | 10A / 5A | 10A / 5A | 7A / 3.5A | ||
 | PCR2000LE | 1,060,000円 （税込：1,166,000円） | Single-phase 2 kVA | 20A / 10A | 20A / 10A | 14A / 7A | ||
 | PCR3000LE | 1,700,000円 （税込：1,870,000円） | Single-phase 3 kVA | 30A / 15A | 30A / 15A | 21A / 10.5A | ||
| PCR4000LE | 1,990,000円 （税込：2,189,000円） | Single-phase 4 kVA | 40A / 20A | 40A / 20A | 28A / 14A | ||
 | PCR6000LE | 2,900,000円 （税込：3,190,000円） | Single-phase 6 kVA | 60A / 30A | 60A / 30A | 42A / 21A | ||
 | PCR9000LE | 4,100,000円 （税込：4,510,000円） | Single-phase 9 kVA | 90A / 45A | 90A / 45A | 63A / 31.5A | ||

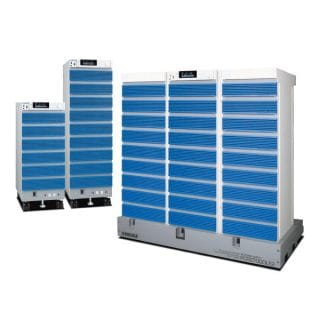

PCR-LE2 Series
| Model | Output capacity | Maximum output current | AC mode (L/H range) | DC mode (L/H range) | Price | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Single-phase, Three phase 4-wire | Single phase 3-wire | Single phase | Single phase 3-wire | Single phase | Three phase 4-wire | Single phase | Single phase 3-wire | ||||
| PCR6000LE2 | 6kVA | 4kVA | 60A/30A | 20A/10A | 1 V to 150 V / 2 V to 300 V | 60A/30A | 20A/10A | ±1.4 V to ±212 V / ±2.8 V to ±424 V | 42A/21A | 14A/7A | 3,700,000円 （税込：4,070,000円） |
| PCR9000LE2 | 9kVA | 6kVA | 90A/45A | 30A/15A | 90A/45A | 30A/15A | 63A/31.5A | 21A/10.5A | 5,800,000円 （税込：6,380,000円） | ||
| PCR12000LE2 | 12kVA | 8kVA | 120A/60A | 40A/20A | 120A/60A | 40A/20A | 84A/42A | 28A/14A | 6,980,000円 （税込：7,678,000円） | ||
| PCR18000LE2 | 18kVA | 12kVA | 180A/90A | 60A/30A | 180A/90A | 60A/30A | 126A/63A | 42A/21A | 10,000,000円 （税込：11,000,000円） | ||
| PCR27000LE2 | 27kVA | 18kVA | 270A/135A | 90A/45A | 270A/135A | 90A/45A | 189A/94.5A | 63A/31.5A | 14,000,000円 （税込：15,400,000円） | ||
Features

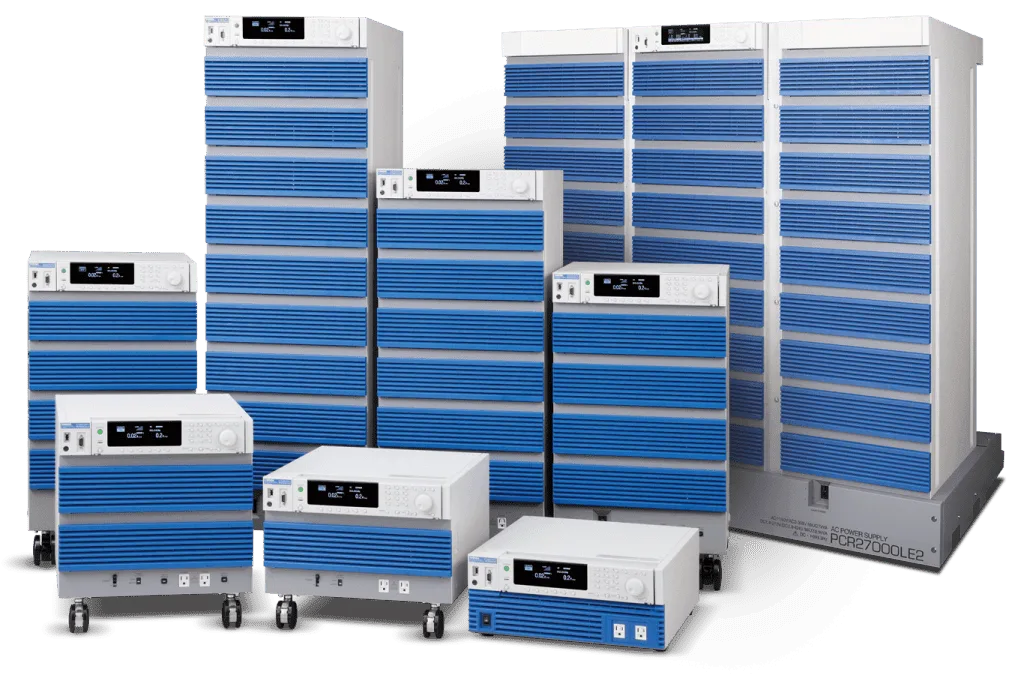

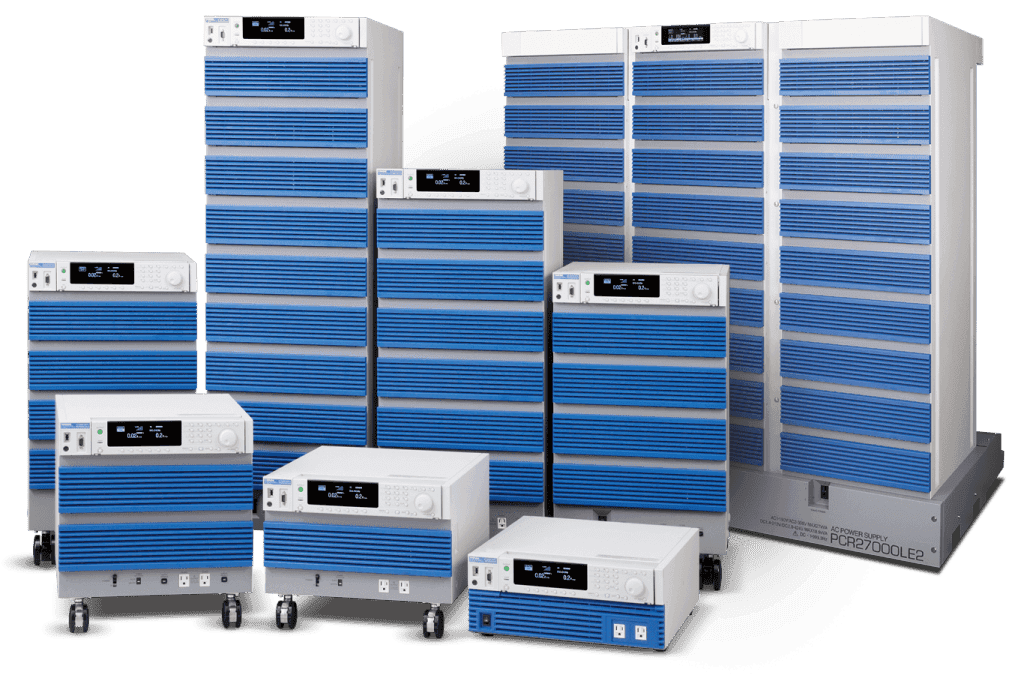

High-performance multifunctional AC Power Supplies
The PCR-LE Series is a new line of advanced multifunctional AC power supply that has been developed from our PCR-L/LA Series (linear amplifier type).
The PCR-LE Series provides high reliability and can be applied to various applications, by taking advantage of the features that can control broadband waveform freely.
Moreover, the PCR-LE Series can be configured as a core device of a test system combined with E-loads and Power Analyzers for “Grid Connection Testing” in regard to dispersed power generation, such as Solar Power, Wind Power, Fuel Cell, and Gas Engine referred to as “New Energy Field”.
With various options, the low frequency immunity test and various power enviroment tests are supported. The options for parallel operation and three-phase operation enable you to expand a single-phase system up-to 27 kVA, single-phase
three wires up-to 54 kVA, and a three-phase system up to 81 kVA. The system can be applied to a largescale EMC site for testing of industrial high-capacity air conditioners.

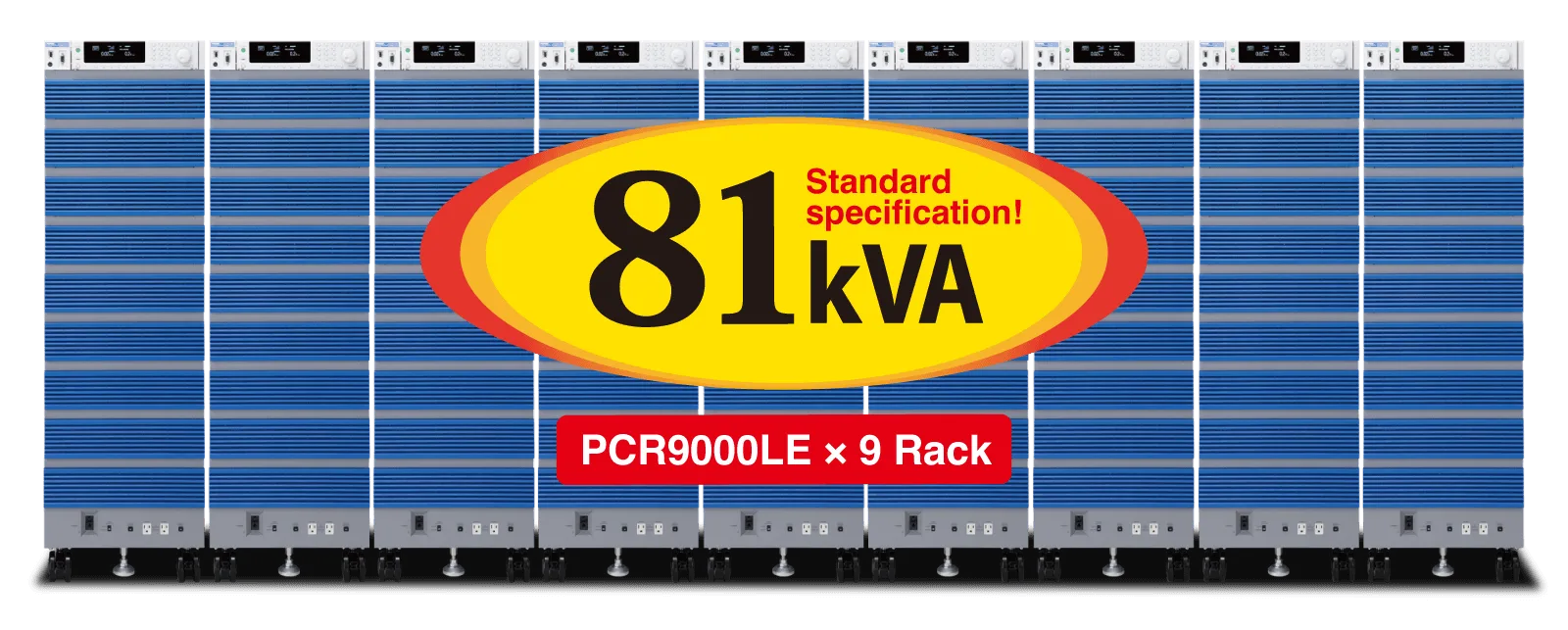

Extended system for large capacity applications. Flexible configuration in models.
It is possible to expand to 27 kVA (single phase), 54 kVA (single phase 3-wire), and 81 kVA (three phase) by using the parallel, single phase 3-wire, and three phase operation options (expansion operation drivers). This allows the system to be used for large-scale EMC site power or as test power for large-capacity industrial air conditioners. *108 kVA and 135 kVA available on special order.

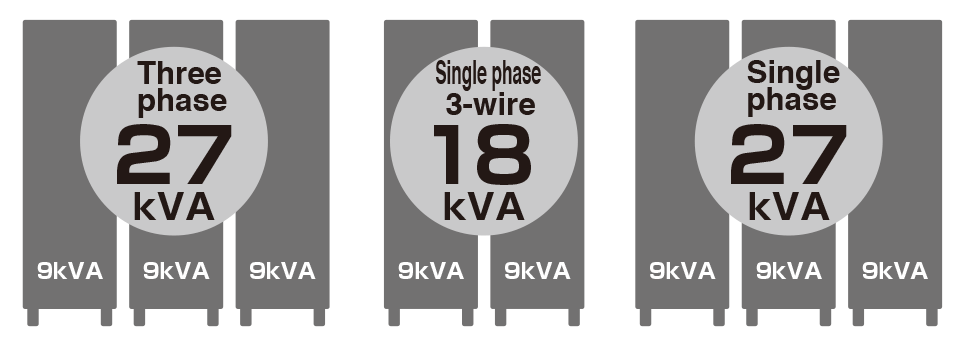

Extensive configuration of the system.
Each unit can be used as either a master or slave, allowing units to be individual or system depends on the requirement.

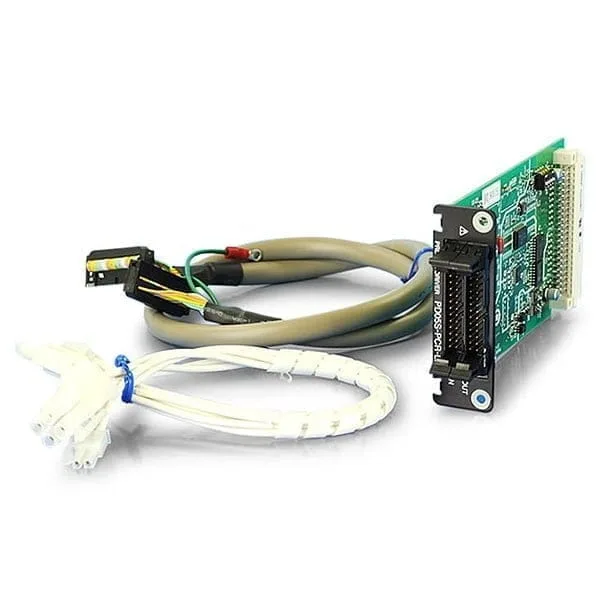

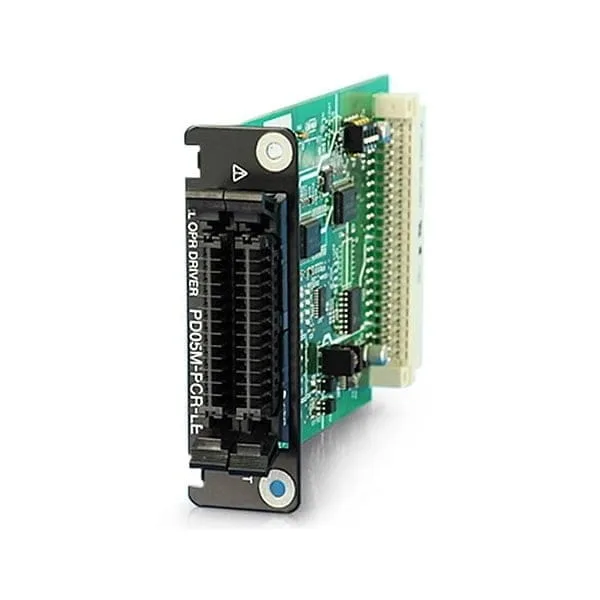

Parallel operation *The separately-sold expansion operation driver is required.
Models with 2 kVA or more / Max. number of units connected: 5 / Max. expansion capacity: single-phase 27 kVA
Can be expanded to 54 kVA (single phase 3-wire) or 81 kVA (three phase) when used
in combination with the single phase 3-wire option or three phase option.
Combinations of different models are possible!

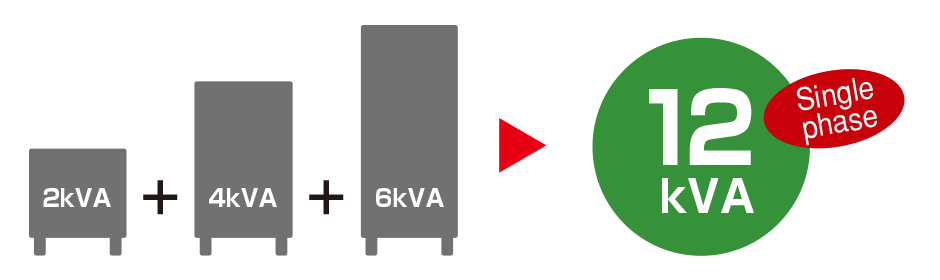

Example: PCR2000LE + PCR4000LE + PCR6000LE = Single phase 12 kVA

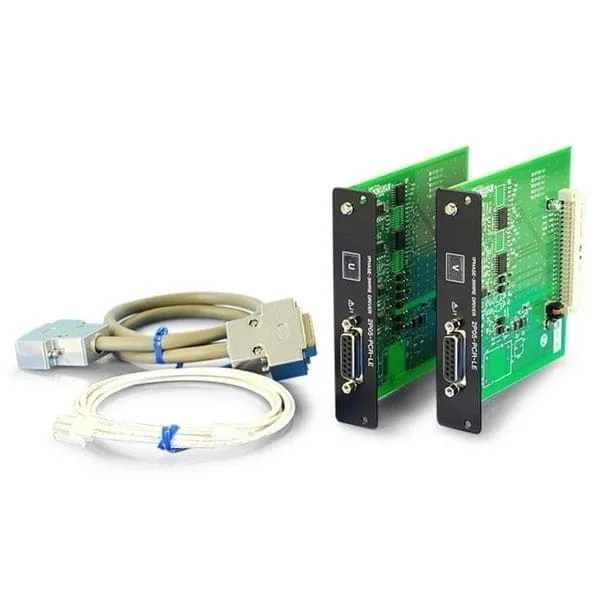

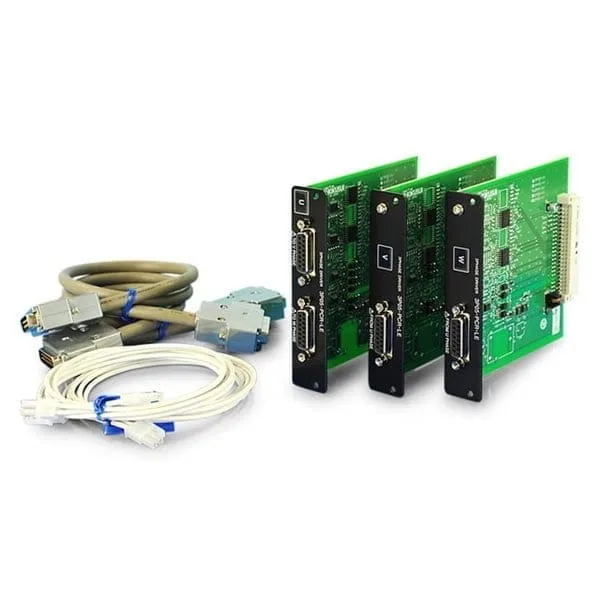

Single phase 3-wire, three phase operation * The separately-sold expansion operation driver is required.
All models / Max. expanded capacity: 54 kVA (single phase 3-wire), 81 kVA (three phase)
When used in combination with the parallel operation option
Combinations of different models are possible!

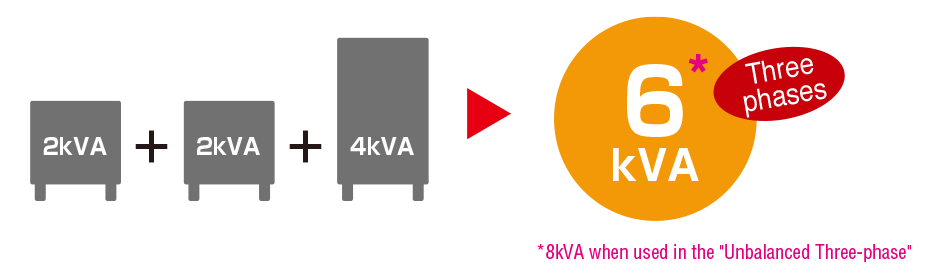

Example:PCR2000LE + PCR2000LE + PCR4000LE = 6kVA “Three-phase” or 8kVA “Unbalanced Three-phase”

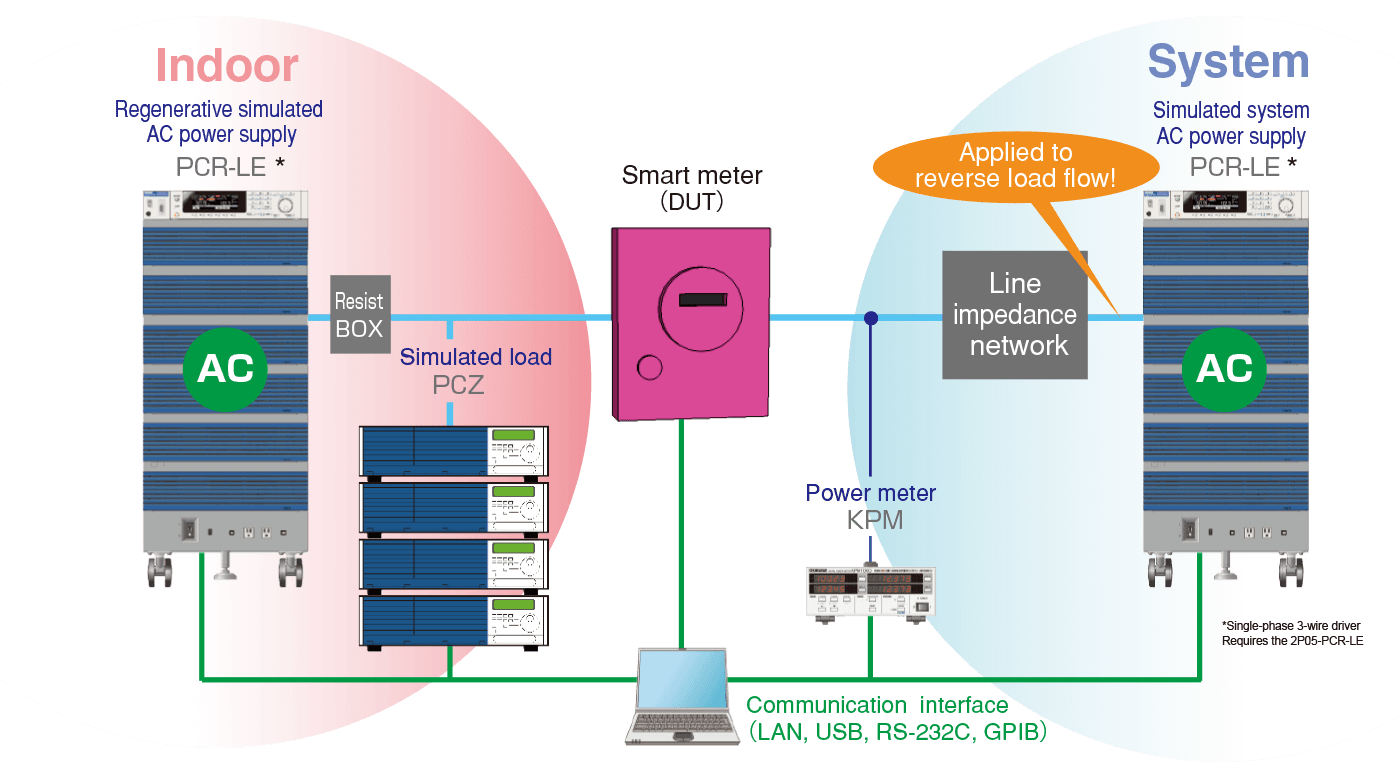

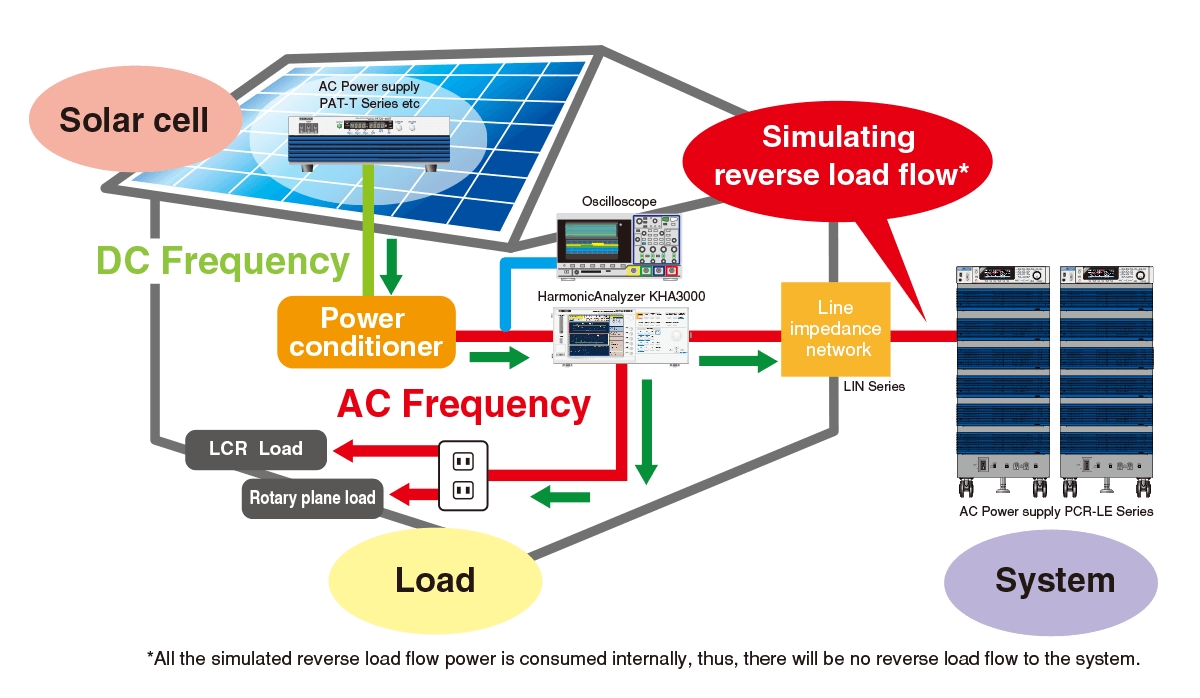

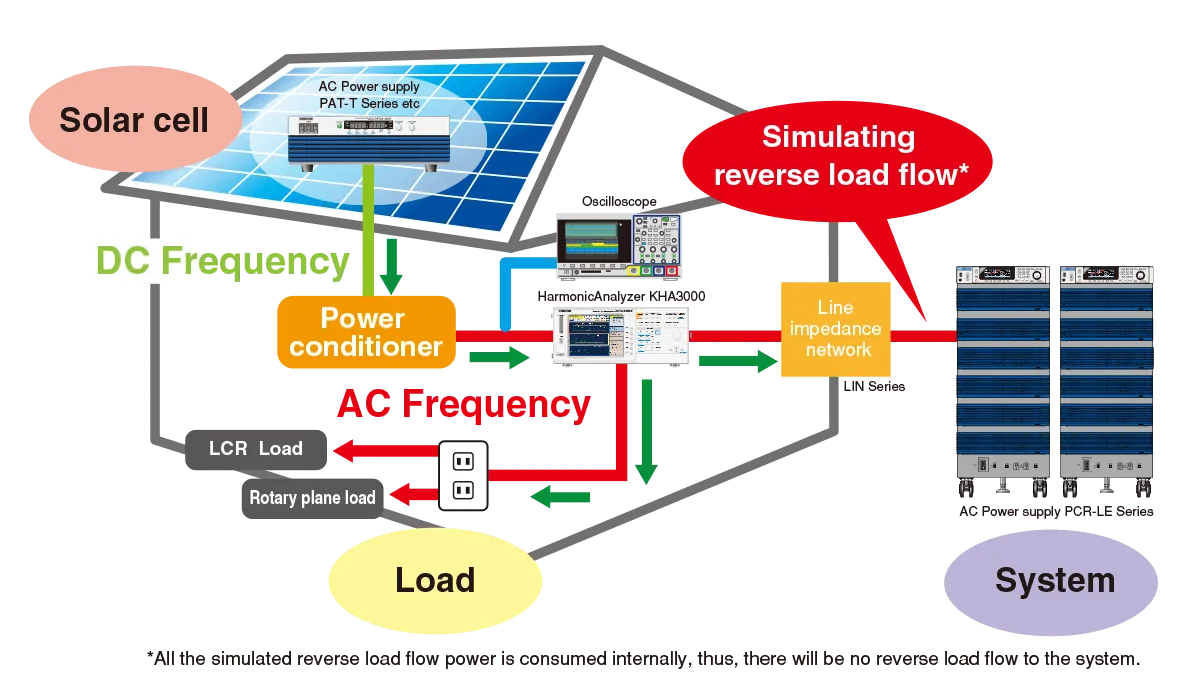

For testing of the “Grid connected system” with reverse load flow
Conforming to the guideline of the Japanese standard requirements of system interconnection technologies
*All simulated reverse power flow is consumed internally and there is no reverse power flow to the grid.
Eco-friendly function (Energy-saving function)
Sleep function
The power unit goes into the sleep mode when no output is detected for a specified period to save the power consumption.
Energy-saving operation function*
You can utilize the energy-saving function to operate only the number of power unit(s) depending on the required supply load.
Downsizing

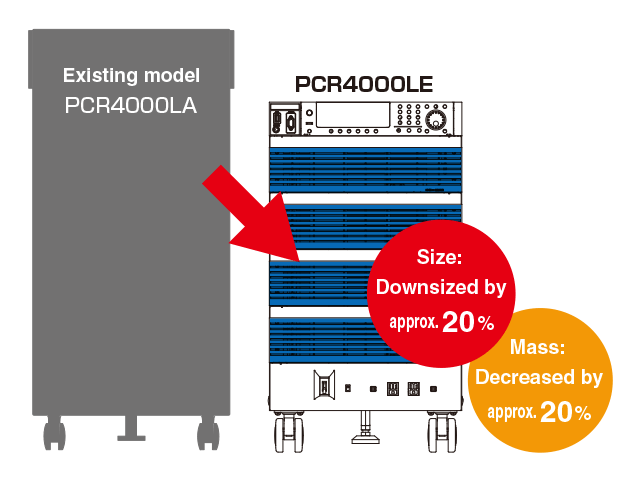

Comparison with the former model PCR-LA (4 kVA)
Input/output terminal block tray for easy connections
The rear input/output terminal block tray is a slide-out type, allowing input/output cables to be connected easily. (Excepting the PCR500LE and PCR12000LE2 and PCR18000LE2 and PCR27000LE2)
Wide-ranging specs DC output also supported
ln addition, the system supports a DC output mode and AC + DC output mode. The system can be useful in a wider range of fields such as chemistry- and physics-related areas.
| Item | Rating |
|---|---|
| Voltage (AC) *1 | 1 V to 150 V (L range), 2 V to 300 V(H range) |
| Frequency | 1 Hz to 999.9 Hz *2 |
| Voltage (DC/AC+DC) *1 | ±1.4 V to ±212 V (L range), ±2.8 V to ±424 V (H range) |
*1: Settings available from 0 V. *2: The frequency is limited to the range from 1 Hz to 500.0 Hz when the 3P05-PCR-LE (500Hz LMT) is installed in the PCR-LE series.
Selectable response mode
Allows select of a response mode for the internal amplifier system depending on the load condition and application.
| Item | Application |
|---|---|
| High-speed response (FAST) * | for requesting a rate of power rise/fall |
| Normal response (MEDIUM) | for testing various power supply environments |
| Highly stable response (SLOW) | for power supply for EMC testing sites |
※ Excluding PCR6000LE, PCR9000LE, PCR6000LE2, PCR9000LE2, PCR12000LE2, PCR18000LE2,PCR27000LE2, three phase operation, parallel operation
Power line abnormality simulation

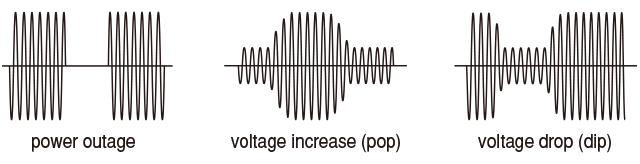

In AC mode, it is possible to simulate power line abnormalities by setting the output of the PCR-LE series system to the state of a power outage, voltage drop (dip), or voltage increase (pop). This allows the ability to test switching power supplies and electronic equipment.
The front panel becomes a remote control.
The control panel angle can be adjusted according to the position where it is used.
The optional control panel extension cable is also available.
External communication interface. Complied to LXI.
RS232C (equipped as a standard). Remote control available with GPIB, USB, and LAN as options. Using LAN makes it possible to configure highly cost-effective systems, as LXI standard is supported.
Other functions
- Various measuring functions
- Sequence function
- Sensing
- Regulation adjustment
- Output current control
- Output Impedance Setting
- Harmonic measurement
- Soft start (Rise time control)
- Internally fixed Vcc
- Control panel angle adjustment
Applications

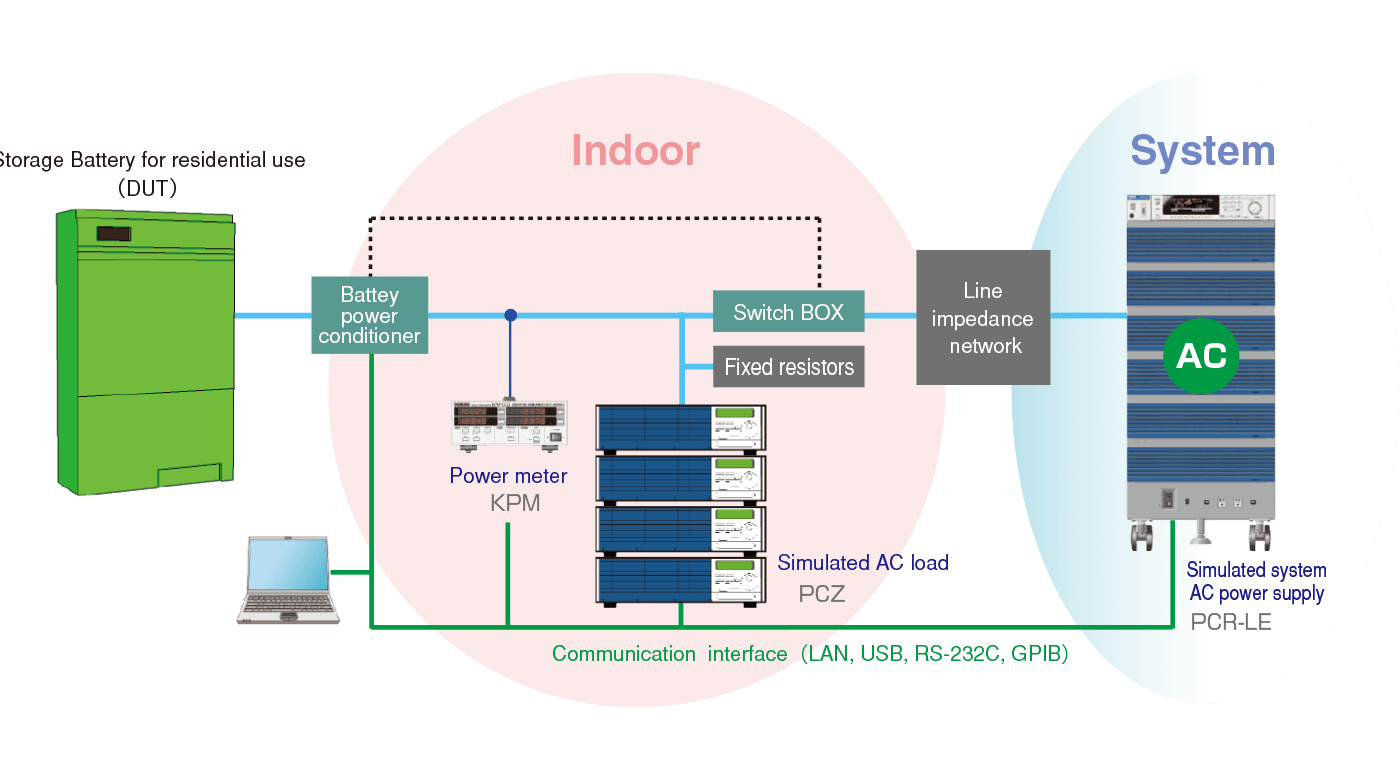

For testing of the Smart Grid related applications

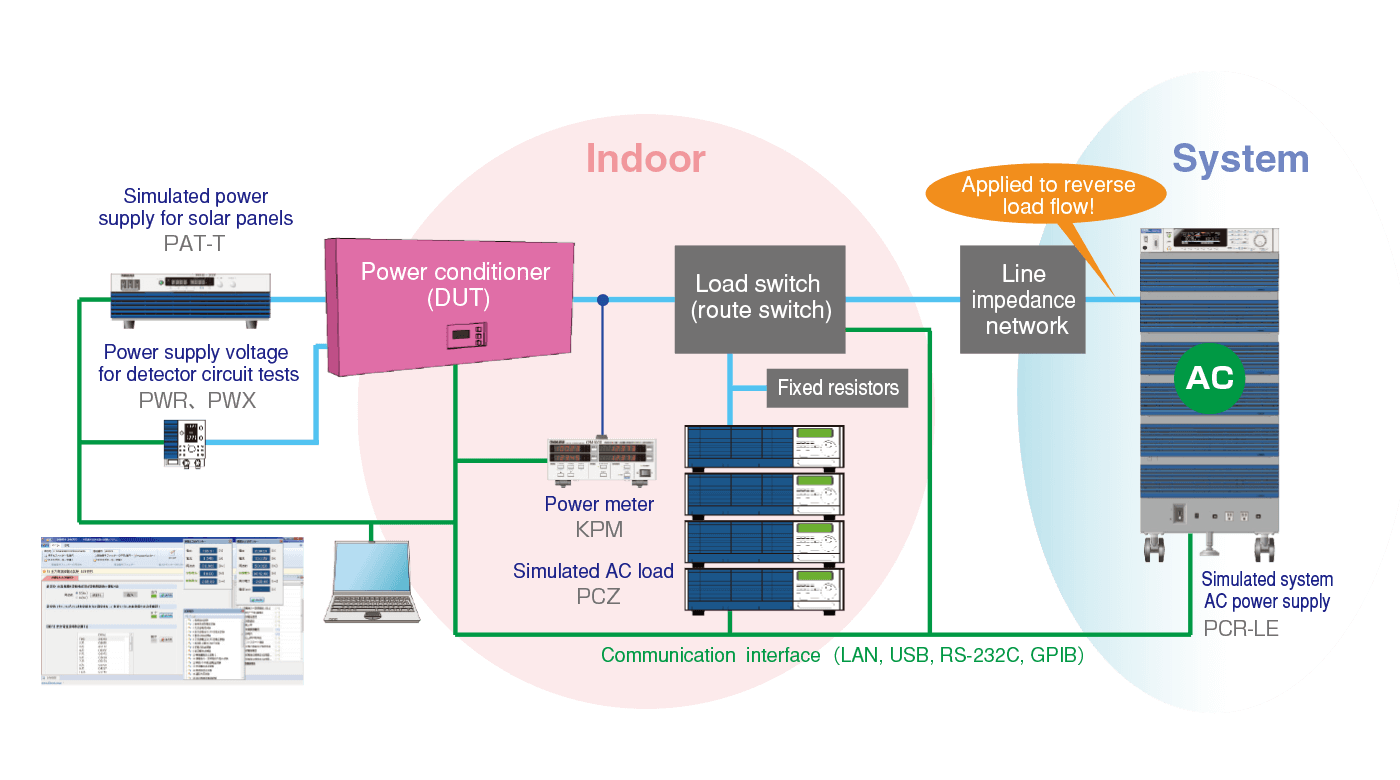

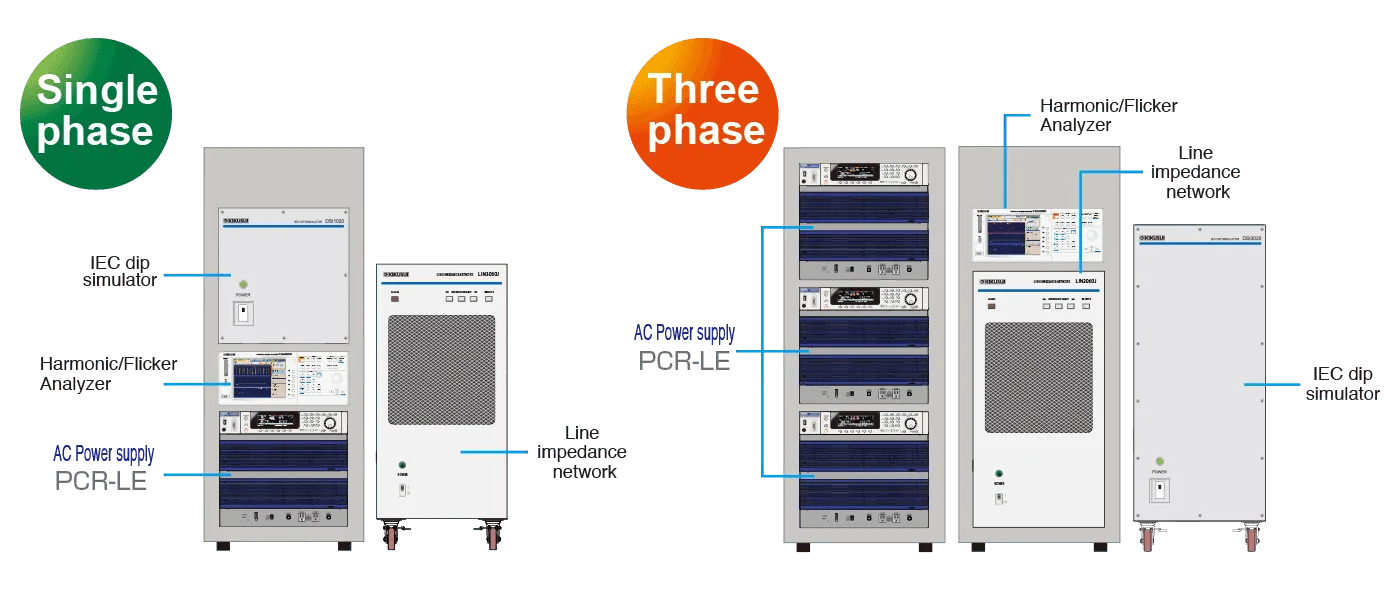

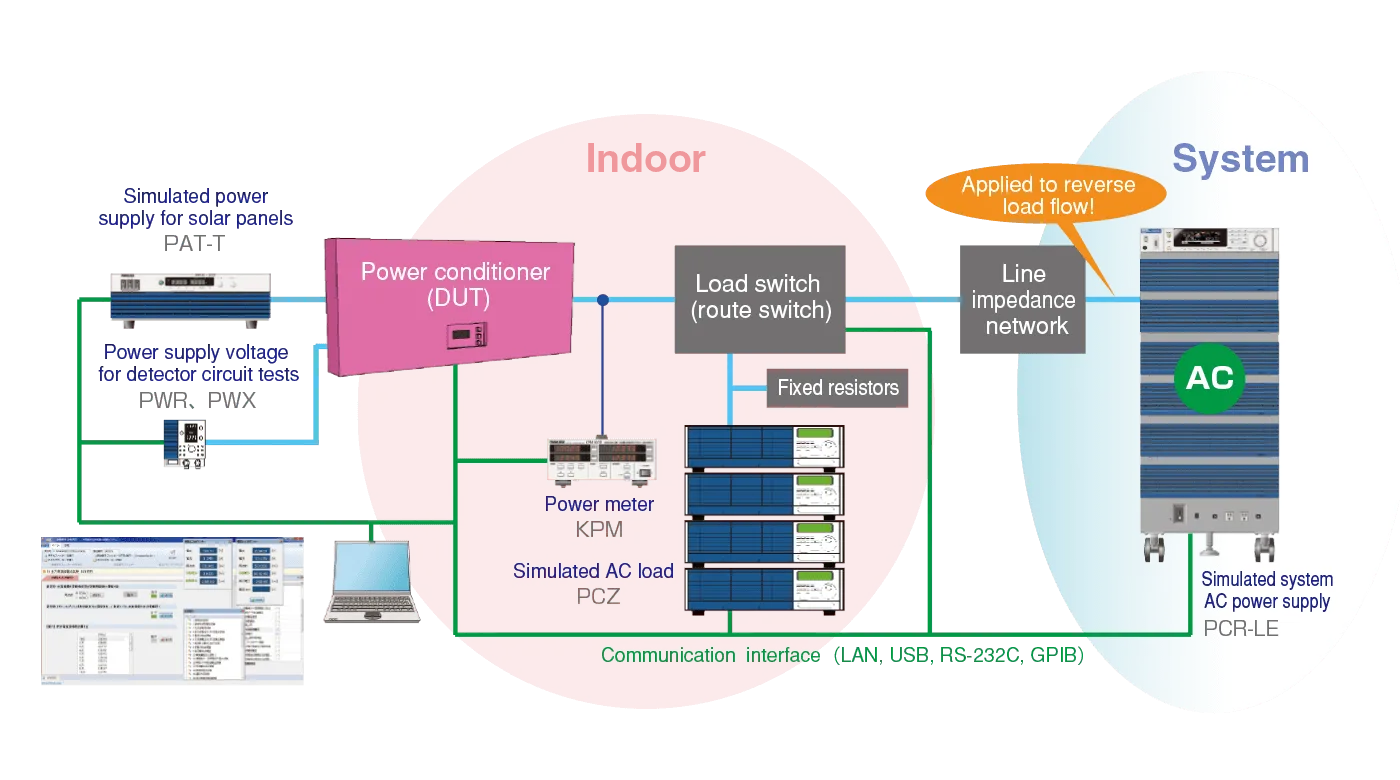

Power conditioner (DUT)

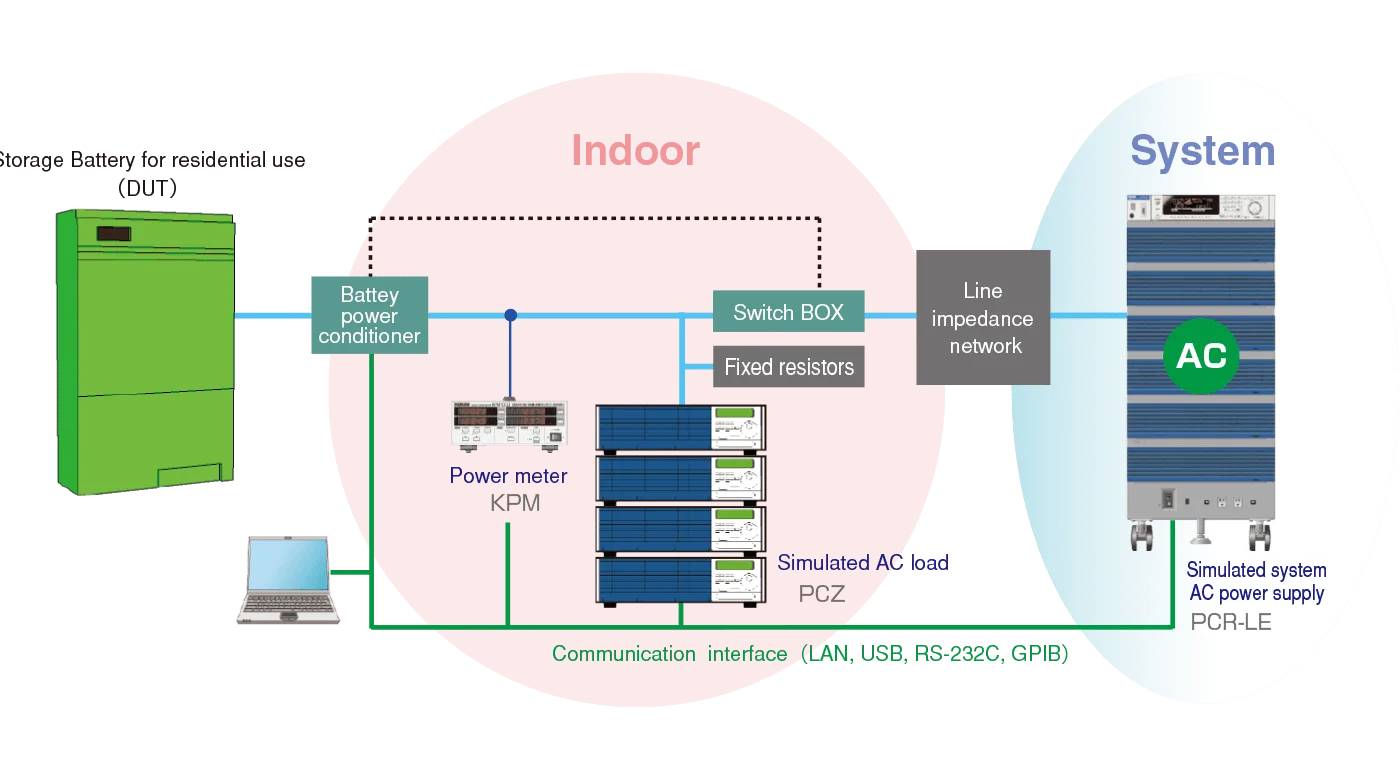

Storage Battery for Residential use (DUT)

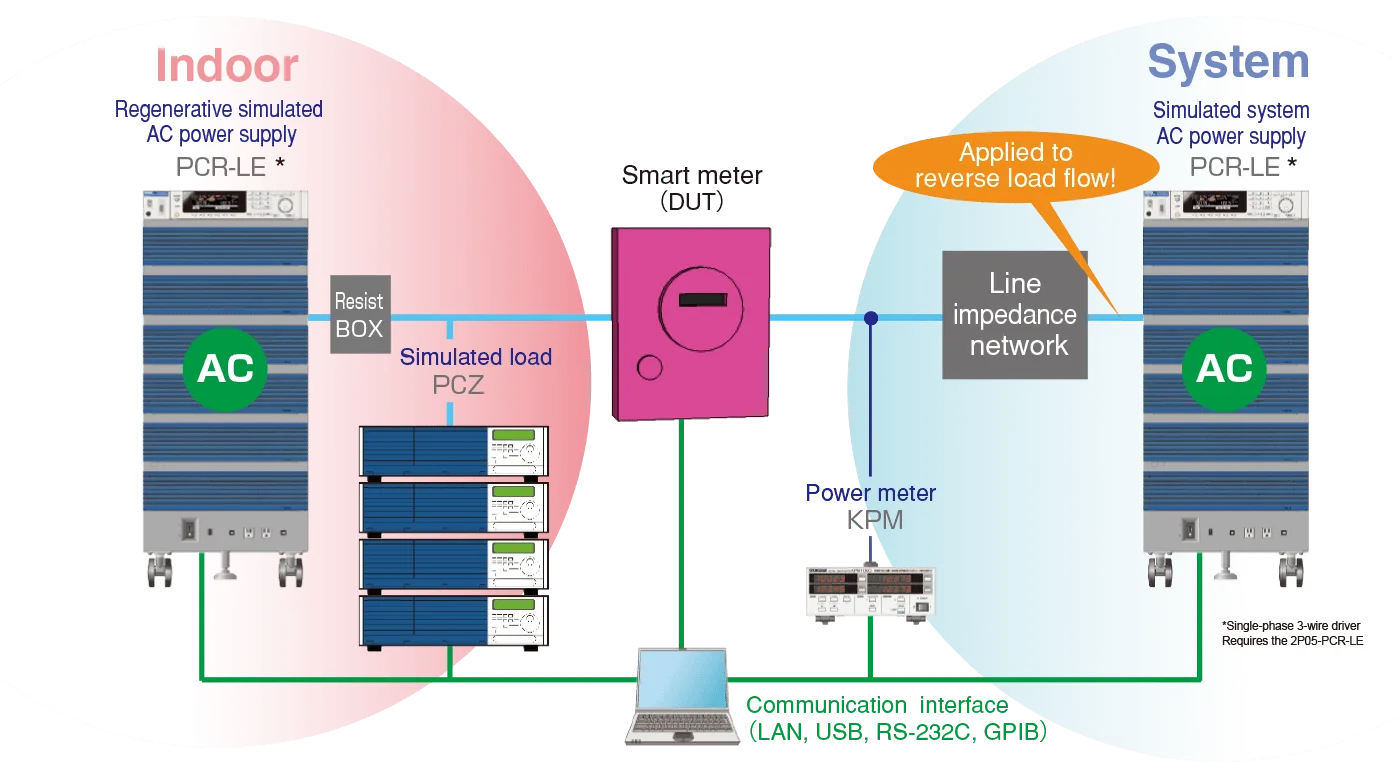

Smart meter (DUT)

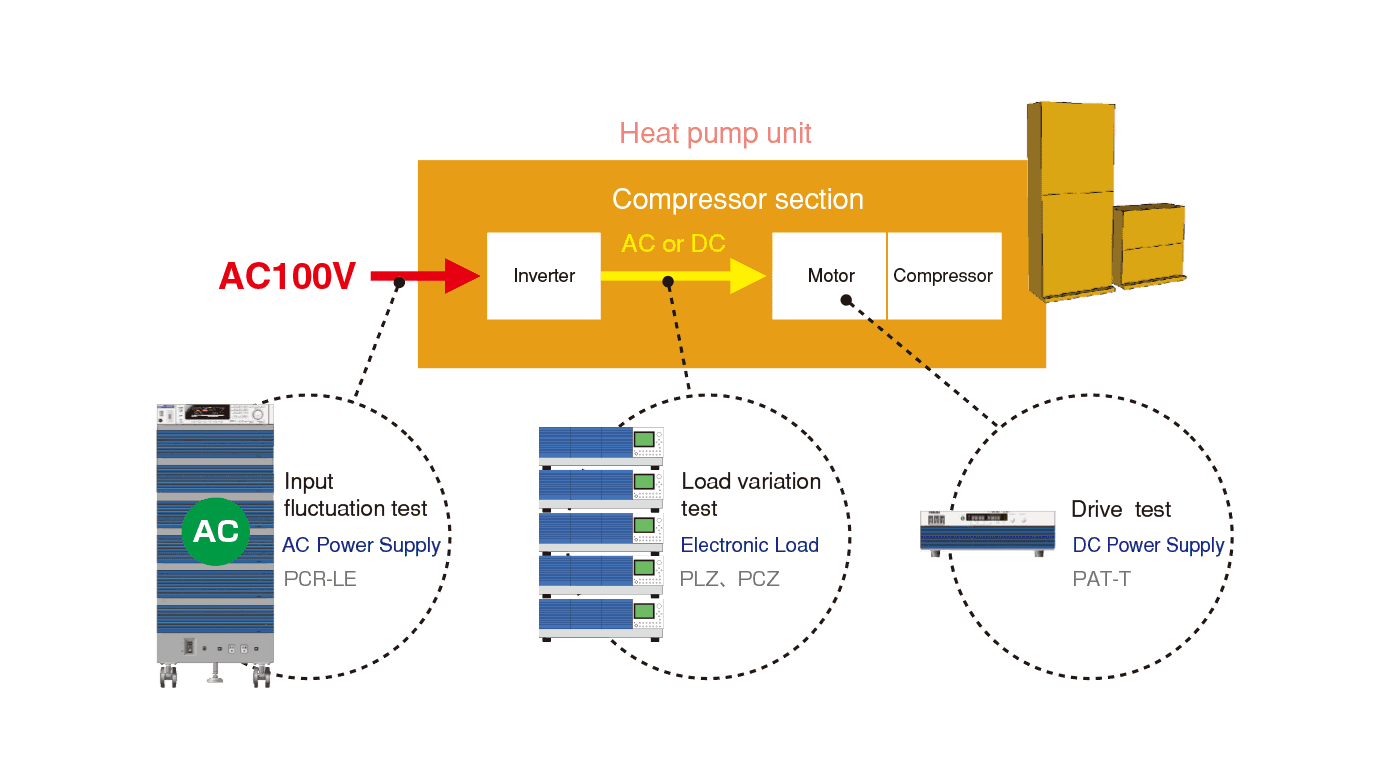

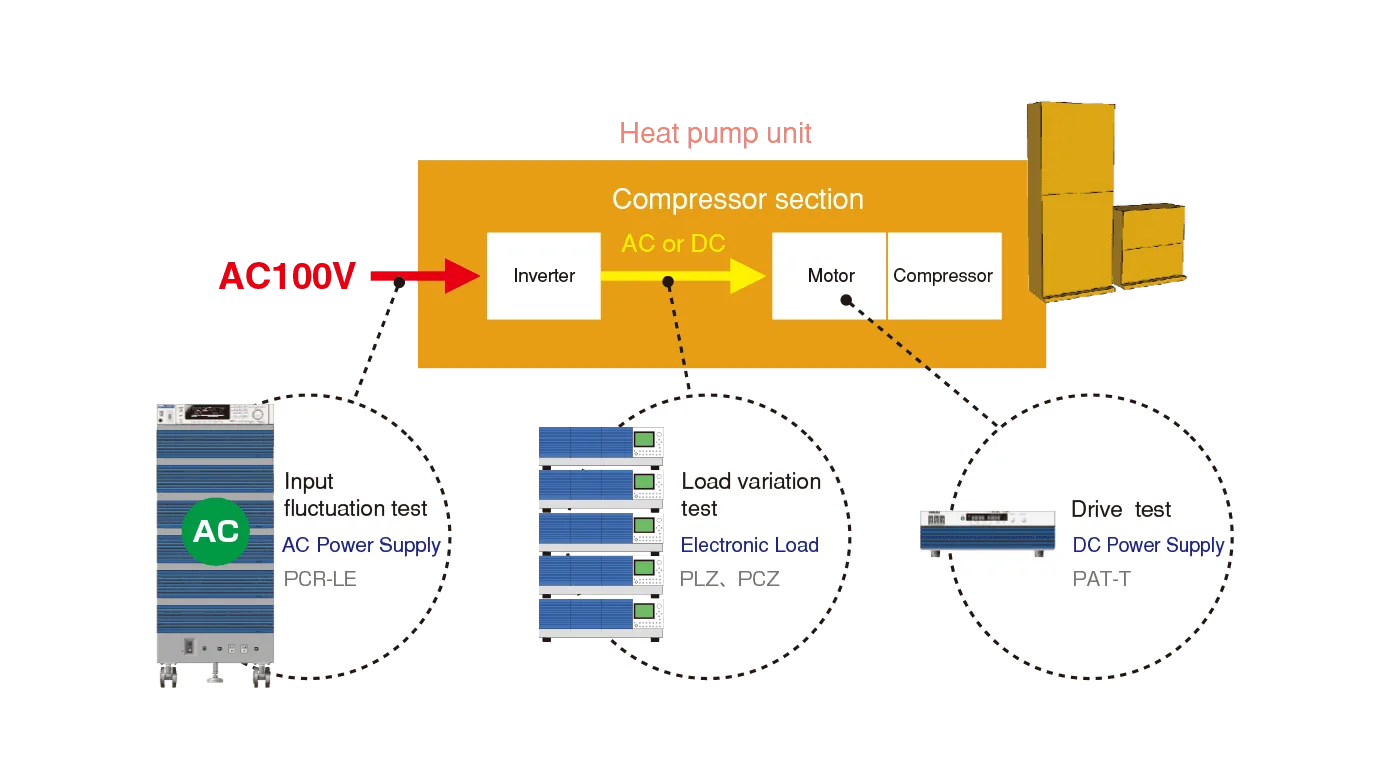

Heat pump (DUT)
Related to IEC 61000 standards
Sihgle phase system / Three phase system

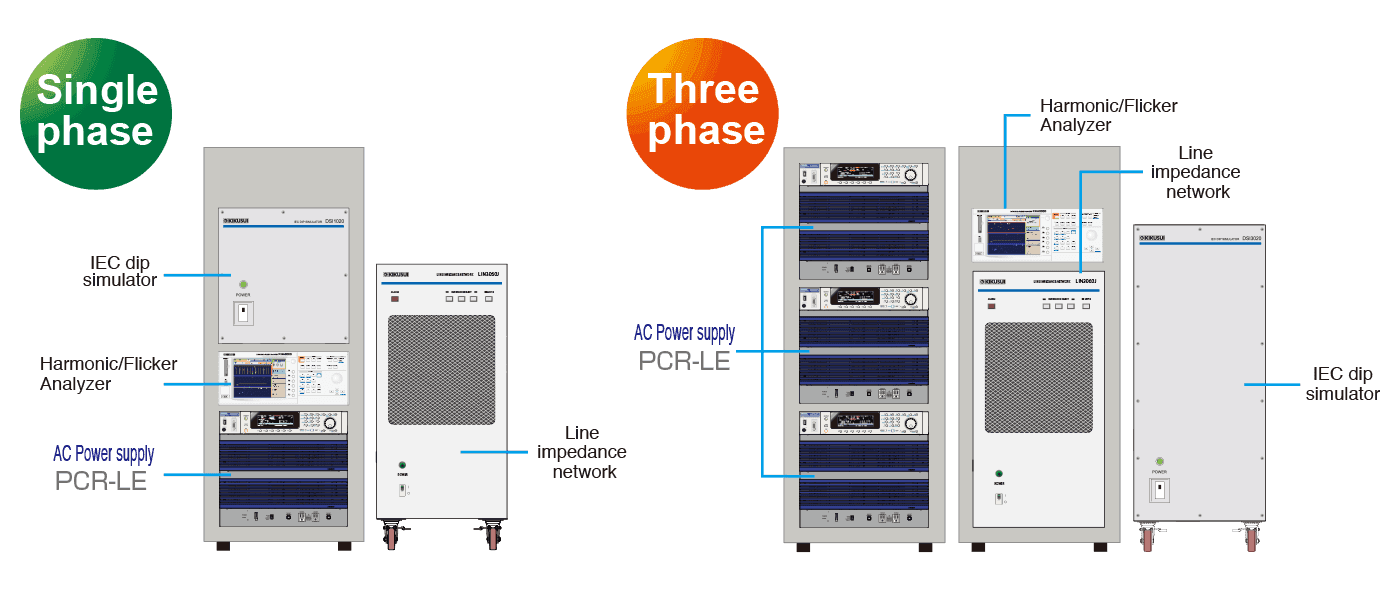

This system can simulate various conditions of phenomena occurring in AC power environments. It can be used for immunity tests of electrical and electronic devices which are connected to a low-voltage distribution system, or which have DC power input ports, under the standard conditions as specified on the right. The test conditons can be set outside the standard range, allowing the system to be used for preliminary tests prior to standard tests, immunity margin tests, and stress tests.
The KHA3000 harmonic/flicker analyzer combines a PCR-LE Series AC power supply, LIN Series * line impedance network, and application software *, allowing tests which conform to IEC standards and JIS standards. *SD009-PCR-LE/WE [Quick Immunity Sequencer 2] is required.
| IEC61000-4-11 | Voltage dipping, instantaneous power failure and voltage variation |
|---|---|
| IEC61000-4-13 | Higher harmonics wave/interharmonic wave |
| IEC61000-4-14 | Voltage swing |
| IEC61000-4-27 | Unbalance in units |
| IEC61000-4-28 | Variation in power supply frequency for units with 16 A/phase |
| IEC61000-4-34 | Voltage drop (dip), instantaneous power failure and voltage variation for units with input current exceeding 16 A/phase * |
| IEC61000-4-17 | Ripple at the DC input power terminal |
| IEC61000-4-29 | Voltage drop (dip), instantaneous power failure and voltage variation in DC* |
| IEC61000-3-2,12 | Harmonic electric current limit level |
| IEC61000-3-3,11 | Voltage fluctuation,Flicka limit level |
* Designed for preliminary test purposes.

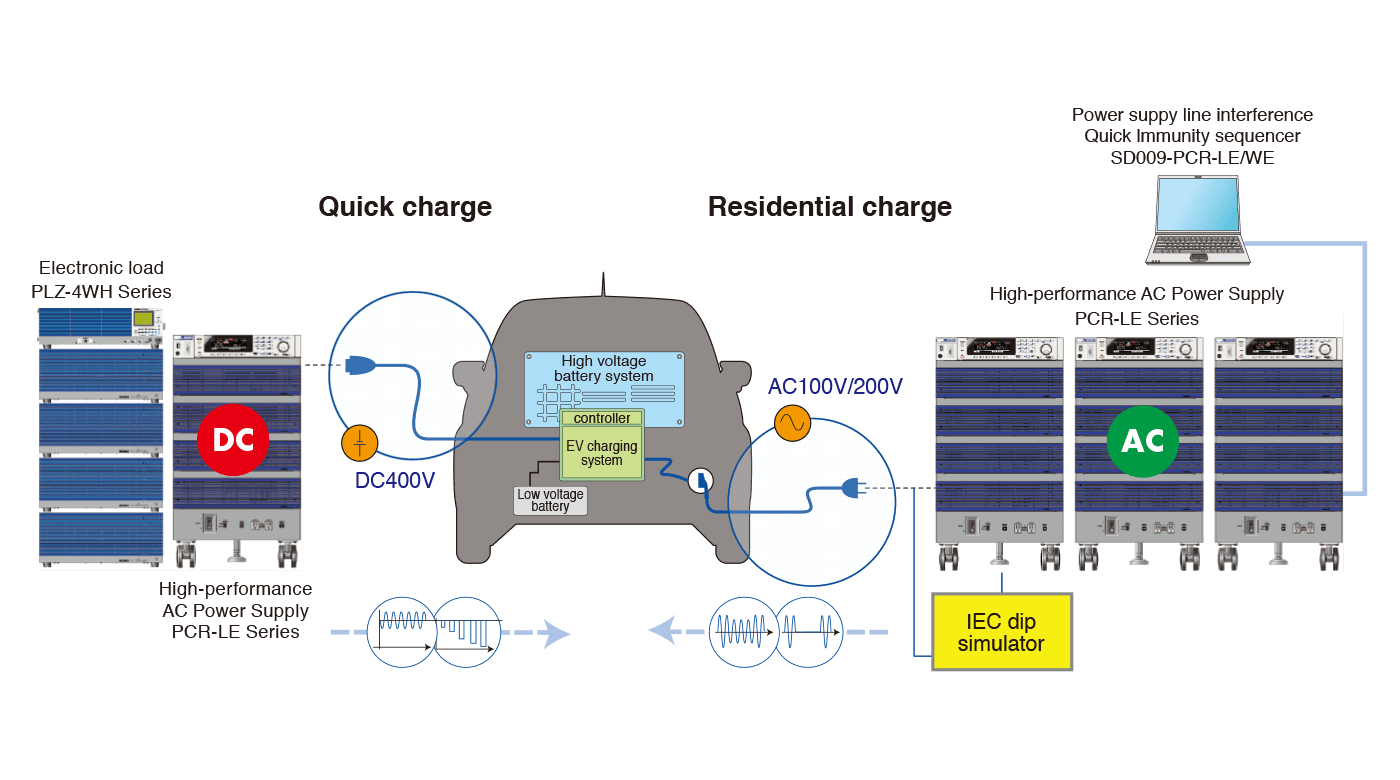

For testing of the EV charging system
EV charging system (Item under test)
EV/PHEVの充電には、直流を使用する急速充電と自宅のコンセントを使用した普通充電があります。PCR-WE2/WE2Rシリーズは、低圧配電系統の試験だけでなく、高電圧・大容量の直流出力模擬にも対応します。
Specifications
PCR-LE Series
Input ratings (AC rms)
| Item/Model | PCR500LE | PCR1000LE | PCR2000LE | PCR3000LE | PCR4000LE | PCR6000LE | PCR9000LE | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 3P3W 200V | 3P4W 400V | 3P3W 200V | 3P4W 400V | |||||||
| Voltage | 85 Vac to 132 Vac /170 Vac to 250 Vac *1 | 170Vac to 250Vac | Line voltage 324 V to 440 V (Phase voltage 187 V to 254 V) | 170Vac to 250Vac | Line voltage 324 V to 440 V (Phase voltage 187 V to 254 V) | |||||
| Phase | Single phase | Single phase | Three phase 3-wire | Three phase 4-wire | Three phase 3-wire | Three phase 4-wire | ||||
| Frequency | 47 Hz to 63 Hz | |||||||||
| Apparent power | Approx. 0.93 kVA | Approx. 1.8kVA | Approx. 3.6kVA | Approx. 5.5kVA | Approx. 7.3kVA | Approx. 10.6 kVA | Approx. 15.7 kVA | |||
| Power factor *2 | 0.97 (TYP) | |||||||||
| Max. current *1 | 11.3A/5.5A | 22A/10.8A | 44A/21.5A | 66A/32A | 88A/43A | 64A | 38A | 21A | 55A | 30A |
*1 100 V input type or 200 V input type *2 When the input voltage is 100 V or 200 V, the output voltage is 100 V or 200 V, the output current is the rated value, the load power factor is 1, and the output frequency is between 40 Hz and 999.9 Hz.
AC mode output ratings (AC rms)
| Item/Model | PCR500LE | PCR1000LE | PCR2000LE | PCR3000LE | PCR4000LE | PCR6000LE | PCR9000LE | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 3P3W 200V | 3P4W 400V | 3P3W 200V | 3P4W 400V | |||||||
| Voltage (output L range, output H range) | 1 V to 150 V / 2 V to 300 V | |||||||||
| Resolution | 0.1 V | |||||||||
| Voltage setting range | 0 V to 152.5 V / 0 V to 305.0 V | |||||||||
| Voltage setting accuracy (output L range, output H range) *3 | ± (0.3 % of set + 0.6 V) | |||||||||
| Max. current*4 | 5 A/2.5 A | 10A/5A | 20A/10A | 30A/15A | 40A/20A | 60A/30A | 90A/45A | |||
| Phase | Single phase | |||||||||
| Power capacity | 500VA | 1kVA | 2kVA | 3kVA | 4kVA | 6kVA | 9kVA | |||
| Maximum peak current *5 | Max. current (rms) × 4 (TYP) | |||||||||
| Max. reverse current *6 | 30 % of the max. current (rms) | |||||||||
| Load power factor | 0 to 1 (leading or lagging) *4 | |||||||||
| Frequency *4 | 1 Hz to 999.9 Hz | |||||||||
| Resolution | 0.01 Hz (1.00 Hz to 100.0 Hz), 0.1 Hz (100.0 Hz to 999.9 Hz) | |||||||||
*3 When the output frequency is between 45 Hz and 65 Hz, with no load, and at room temperature. *4 When the maximum voltage is between 1 V and 100 V (L range) or 2 V and 200 V (H range) and the load power factor is between 0.8 and 1. When the output voltage is between 100 V and 150 V (L range) or 200 V and 300 V (H range), the output current is reduced by the output voltage. When the load power factor is between 0 and 0.8, the output current is reduced by the load power factor. When the output frequency is between 1 Hz and 40 Hz, the output current is reduced by the output frequency. *5 For capacitor-input rectifier loads (however, this is limited by the rated output current’s rms value). *6 When the output voltage is 100 V or 200 V and the output frequency is between 40 Hz and 999.9 Hz (reverse current is -180 deg out of phase with the output voltage).
DC mode output ratings
| Item/Model | PCR500LE | PCR1000LE | PCR2000LE | PCR3000LE | PCR4000LE | PCR6000LE | PCR9000LE | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 3P3W 200V | 3P4W 400V | 3P3W 200V | 3P4W 400V | |||||||
| Voltage (output L range, output H range) | ±1.4 V to ±212 V / ±2.8 V to ±424 V | |||||||||
| Resolution | 0.1 V | |||||||||
| Voltage setting range | -215.0 V to +215.5 V / -431.0 V to +431.0 V | |||||||||
| Voltage setting accuracy (output L range, output H range) *7 | ±(0.05 % of set + 0.05/0.1 V) | |||||||||
| Max. current *8 | 3.5A/1.75A | 7A/3.5A | 14A/7A | 21A/10.5A | 28A/14A | 42A/21A | 63A/31.5A | |||
| Max. instantaneous current *9 | Max. current (rms) × 3.6 | |||||||||
| Power capacity | 350W | 700W | 1.4kW | 2.1kW | 2.8kW | 4.2kW | 6.3kW | |||
*7 With no load at room temperature *8 When the output voltage is between ±100 V and ±212 V (L range) or ±200 V and ±424 V (H range), the output current is reduced by the output voltage. *9 Limited by the rated output current’s rms value
Output voltage stability
| Item/Model | PCR500LE | PCR1000LE | PCR2000LE | PCR3000LE | PCR4000LE | PCR6000LE | PCR9000LE | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 3P3W 200V | 3P4W 400V | 3P3W 200V | 3P4W 400V | |||||||
| Line regulation *10 | Within ±0.1 % | |||||||||
| Load regulation (output L range, output H range) *11 | Within ±0.1 V, within ±0.2 V | |||||||||
| Output frequency FAST variation *12 | FAST | ±0.2 % or less | – | |||||||
| MEDIUM | Within ±0.3 % | |||||||||
| Ripple noise in DC mode (5 Hz to 1 MHz components) | 0.15 Vrms or less | 0.2 Vrms or less | 0.25 Vrms or less | |||||||
| Ambient temperature variation *13 | 100 ppm/°C (TYP) | |||||||||
*10 With respect to changes in the rated range *11 With respect to 0 % to 100 % changes in the rating When the output voltage is between 80 V and 150 V (L range) or 160 V and 300 V (H range) and the load power factor is 1. At the output terminal block. When the response mode is set to FAST or MEDIUM. *12 Between 40 Hz and 999.9 Hz. When the output voltage is between 80 V and 150 V (L range) or 160 V and 300 V (H range) and the load power factor is 1. This is the output line regulation with 200 Hz as the reference. *13 With respect to changes in the rated range When the output voltage range is 100 V or 200 V and the output current is 0 A.
Output frequency stability, output voltage waveform distortion ratio, output voltage response speed, efficiency
| Item/Model | PCR500LE | PCR1000LE | PCR2000LE | PCR3000LE | PCR4000LE | PCR6000LE | PCR9000LE | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 3P3W 200V | 3P4W 400V | 3P3W 200V | 3P4W 400V | |||||||
| Output frequency stability *14 | Within ±5×10– 5 | |||||||||
| Setting accuracy *2 | Within ±1×10– 4 | |||||||||
| Output voltage waveform distortion ratio*15 | FAST | ±0.2 % or less | – | |||||||
| MEDIUM | ±0.3 % or less | |||||||||
| Output voltage response speed*16 | FAST | 20 μs (TYP) | – | |||||||
| MEDIUM | 30 μs (TYP) | |||||||||
| Efficiency *17 | 54 % or more, 56 % or more | 55 % or more, 57 % or more | 58 % or more | |||||||
*14 With respect to changes in all rated ranges *15 When the output voltage is between 80 V and 150 V (L range) or 160 V and 300 V (H range) and the load power factor is 1. *16 When the output voltage is 100 V or 200 V, the load power factor is 1, and the output current changes from 0 A to the rated value and from the rated value to 0 A. *17 When the input voltage is 100 V or 200 V, the output voltage is 100 V or 200 V, the output current is the rated value, the load power factor is 1, and the output frequency is between 40 Hz and 999.9 Hz.
Meters (fluorescent display)
| Item/Model | PCR500LE | PCR1000LE | PCR2000LE | PCR3000LE | PCR4000LE | PCR6000LE | PCR9000LE | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 3P3W 200V | 3P4W 400V | 3P3W 200V | 3P4W 400V | |||||||
| Voltmeter *18 | Resolution | 0.1 V | ||||||||
| Accuracy | ± (1 % of rdng + 2 digits) (10 V to 424 V and at room temperature) | |||||||||
| Ammeter *18 | Resolution | 0.01 A | 0.1 A | |||||||
| Accuracy | ±(1 % of rdng + 2 digits) (5 % of the max. rated current to max. rated current and at room temperature) | |||||||||
| Wattmeter *19 | Resolution | 0.1 W / 1W | 1 W | |||||||
| Accuracy | ±(1 % of rdng +3 digits) (10 % of the rated power capacity to the rated power capacity, when the load power factor is 1, and at room temperature.) | |||||||||
*18 With the true rms display, a waveform with a crest factor of 3 or less, DC, output frequency between 40 Hz and 999.9 Hz, RMS, and AVE. *19 When the output frequency is between 45 Hz and 65 Hz.
BNC terminals
| Item/Model | PCR500LE | PCR1000LE | PCR2000LE | PCR3000LE | PCR4000LE | PCR6000LE | PCR9000LE | ||
|---|---|---|---|---|---|---|---|---|---|
| 3P3W 200V | 3P4W 400V | 3P3W 200V | 3P4W 400V | ||||||
| SEQ TRIG OUT *20 | Pulse width approx. 10 μs, open collector output, pullup at +5 V and approx. 10 kΩ serial resistance approx. 220 Ω, maximum sink current 10 mA, BNC connector | ||||||||
| SEQ STAT OUT *20 | Step time output, open collector output, pullup at +5 V and approx. 10 kΩ serial resistance approx. 220 Ω, maximum sink current 10 mA, BNC connector | ||||||||
| SEQ TRIG IN *20 | Operating pulse width 10 μs or greater, photo-coupler input, driving voltage 5 V, serial resistance approx. 470 Ω, active with 7 mA source, BNC connector | ||||||||
*20 Although signals are insulated with output terminals, each signal is common. Logic setting is also possible.
Limit Values and Protection Functions
| Item/Model | PCR500LE | PCR1000LE | PCR2000LE | PCR3000LE | PCR4000LE | PCR6000LE | PCR9000LE | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 3P3W 200V | 3P4W 400V | 3P3W 200V | 3P4W 400V | |||||||
| Voltage | AC voltage upper limit / AC voltage lower limit | 0.0 V to 305.0 V | ||||||||
| DC voltage upper limit / DC voltage lower limit | -431.0 V to +431.0 V | |||||||||
| Output overvoltage protection AC/AC+DC mode | 0.0 V to 474.1 V | |||||||||
| Output overvoltage protection DC mode | -474.1 V to +474.1 V | |||||||||
| Output undervoltage protection AC/AC+DC mode | 0.0 V to 474.1 V | |||||||||
| Output undervoltage protection DC mode | -474.1 V to +474.1 V | |||||||||
| Resolution | 0.1 V | |||||||||
| Frequency | Upper limit / Lowerlimit | 1 Hz to 999.9 Hz *1 | ||||||||
| Resolution | 0.01 Hz (1.00 Hz to 100.0 Hz), 0.1 Hz (100.0 Hz to 999.9 Hz) | |||||||||
| Current | Current limit*2 AC mode | 0.50A to 5.50A | 1.00A to 11.00A | 2.00A to 22.00A | 3.00A to 33.00A | 4.00A to 44.00A | 6.00A to 66.00A | 9.00A to 99.00A | ||
| Current limit*2 DC/AC+DC mode | 0.35A to 3.85A | 0.70A to 7.70A | 1.40A to 15.40A | 2.10A to 23.10A | 2.80A to 30.80A | 4.20A to 46.20A | 6.30A to 69.30A | |||
| Positive peak current limit*3 | 0.50A to 22.00A | 1.00A to 44.00A | 2.00A to 88.00A | 3.00A to 132.0A | 4.00A to 176.0A | 6.00A to 264.0A | 9.00A to 396.0A | |||
| Negative peak current limit*3 | -0.50A to -22.00A | -1.00A to -44.00A | -2.00A to -88.00A | -3.00A to -132.0A | -4.00A to -176.0A | -6.00A to -264.0A | -9.00A to -396.0A | |||
| Resolution *4 | 0.01 A (0.35 A to 100.0 A), 0.1 A (100.0 A to 396.0 A) | |||||||||
*1 The frequency is limited to the range from 1 Hz to 500.0 Hz when the 3P05-PCR-LE(500HZ LMT) is installed in the PCR-LE series. *2 The current that can actually be supplied is 1.1 times the rated current or the current limit, whichever is less.*3 The current that can actually be supplied is the maximum peak current or the current limit, whichever is less.*4 You can set the current in 0.01 A/ 0.1 A steps, but it may not change at this resolution depending on the relationship with the internal D/A resolution.
General
| Item/Model | PCR500LE | PCR1000LE | PCR2000LE | PCR3000LE | PCR4000LE | PCR6000LE | PCR9000LE | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3P3W 200V | 3P4W 400V | 3P3W 200V | 3P4W 400V | ||||||||
| Insulation resistance | Between input and chassis, output and chassis, and input and output | 500 Vdc, 30 MΩ or more | 500 Vdc, 10 MΩ or more | ||||||||
| Withstanding voltage | Between input and chassis, output and chassis, and input and output | 1.5 kVac for 1 minute | |||||||||
| Circuit method | Linear amplifier system | ||||||||||
| Environmental conditions | Operating environment | Indoor use, overvoltage category II | |||||||||
| Operating temperature range | 0 °C to +50 °C (32 °F to +122 °F) | ||||||||||
| Storage temperature range | -10 °C to +60 °C (14 °F to 140 °F) | ||||||||||
| Operating humidity range | 20 %rh to 80 %rh (no condensation) | ||||||||||
| Storage humidity range | 90 %rh or less (no condensation) | ||||||||||
| Altitude | Up to 2000 m | ||||||||||
| Weight | Approx. 17 kg (37.48 lb) | Approx. 35 kg (77.16 lb) | Approx. 55 kg (121.25 lb) | Approx. 82 kg (180.78 lb) | Approx. 96 kg (211.64 lb) | Approx.140 kg (308.6 Ibs) | Approx.190kg (418.8 Ibs) | ||||
| Input terminal | (Inlet) | M4 | M5 | M8 | M8 | M8 | M5 | M5 | M5 | M5 | |
| Output terminal | M4 | M4 | M4 | M5 | M5 | M8 | M8 | M8 | M8 | M8 | |
| Accessories | Power cord | 1 pc. With plug, Length: 3 m | The input power cable is not included. Please refer to the list of ordering information specified on the last page. | ||||||||
| Heavy Duty Warning Seals | − | 1 disc | |||||||||
| Setup guide | 1 copy | ||||||||||
| Quick Reference | 1 each for English and Japanese | ||||||||||
| Safety information | 1 copy | ||||||||||
| CD-ROM | 1 disc | ||||||||||
| Electromagnetic compatibility (EMC) *5 *6 | Conforms to the requirements of the directive and standard below. EMC Directive 2014/30/EU EN61326-1(ClassA *7), EN55011(ClassA *7, Group1 *8) EN61000-3-2, EN61000-3-3 The maximum length of all cables and wires connected to the PCR-LE Series must be less than 3 m. | Conforms to the requirements of the directive and standard below. EMC Directive 2014/30/EU EN61326-1(ClassA *7), EN55011(ClassA *7, Group1 *8) The maximum length of all cables and wires connected to the PCR-LE Series must be less than 3 m. | |||||||||
| Safety *5 | Conforms to the requirements of the directive and standard below. Low Voltage Directive 2014/35/EU *6 EN 61010-1 Class I *9, Pollution Degree 2 | ||||||||||
*5 Does not apply to specially ordered or modified PCR-LEs. *6 Only on models that have the CE marking on the panel. *7 This is a Class A equipment. This product is intended for use in an industrial environment. This product may cause interference if used in residential areas. Such use must be avoided unless the user takes special measures to reduce electromagnetic emissions to prevent interference to the reception of radio and television broadcasts.*8 This is a Group 1 equipment. This product does not generate and/or use intentionally radio-frequency energy, in the form of electromagnetic radiation, inductive and/or capacitive coupling, for the treatment of material or inspection/analysis purpose. *9 This is a Class I equipment. Be sure to ground this product’s protective conductor terminal. The safety of this product is only guaranteed when the product is properly grounded.
PCR−LE2 Series
Input ratings (AC rms)
| Item/Model | PCR6000LE2 | PCR9000LE2 | PCR12000LE2 | PCR18000LE2 | PCR27000LE2 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3P3W200V | 3P4W400V | 3P3W200V | 3P4W400V | 3P3W200V | 3P4W400V | 3P3W200V | 3P4W400V | 3P3W200V | 3P4W400V | ||
| Voltage | Line voltage 170 V to 250 V | Line voltage 324 V to 440 V (Phase voltage 187 V to 254 V) | Line voltage 170 V to 250 V | Line voltage 324 V to 440 V (Phase voltage 187 V to 254 V) | Line voltage 170 V to 250 V | Line voltage 324 V to 440 V (Phase voltage 187 V to 254 V) | Line voltage 170 V to 250 V | Line voltage 324 V to 440 V (Phase voltage 187 V to 254 V) | Line voltage 170 V to 250 V | Line voltage 324 V to 440 V (Phase voltage 187 V to 254 V) | |
| Phase | Single phase | Three phase 3-wire | Three phase 4-wire | Three phase 3-wire | Three phase 4-wire | Three phase 3-wire | Three phase 4-wire | Three phase 3-wire | Three phase 4-wire | Three phase 3-wire | Three phase 4-wire |
| Frequency | 47 Hz to 63 Hz | ||||||||||
| Apparent power | Approx. 10.6 kVA | Approx. 15.7 kVA | Approx. 23 kVA | Approx. 33 kVA | Approx. 48 kVA | ||||||
| Power factor *1 | 0.97 (TYP) | ||||||||||
| Max. current | 64 A or less | 38A or less | 21A or less | 55A or less | 30A or less | 75A or less | 39A or less | 111A or less | 59A or less | 165A or less | 91A or less |
*1 When the output phase voltage is 100 V or 200 V, the output current is the rated value, the load power factor is 1, and the output frequency is between 40 Hz and 999.9 Hz.
AC mode output ratings (AC rms)
| Item/Model | PCR6000LE2 | PCR9000LE2 | PCR12000LE2 | PCR18000LE2 | PCR27000LE2 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3P3W200V | 3P4W400V | 3P3W200V | 3P4W400V | 3P3W200V | 3P4W400V | 3P3W200V | 3P4W400V | 3P3W200V | 3P4W400V | ||
| Phase voltage (output L range, output H range)*2 | 1 V to 150 V / 2 V to 300 V | ||||||||||
| Voltage setting range | 0 V to 152.5 V / 0 V to 305.0 V | ||||||||||
| Voltage setting accuracy (output L range, output H range)*3 | ±(0.3 % of set + 0.6 V) | ||||||||||
| Max. current*4 | Single phase, poly phase, L range, H range | 60 A, 30 A · 20 A, 10 A | 90 A, 45 A · 30 A, 15 A | 120 A, 60 A · 40 A, 20 A | 180 A, 90 A · 60 A, 30 A | 270 A, 135 A · 90 A, 45 A | |||||
| Phase*5 | Single phase · Single phase3-wire · Three phase 4-wire | ||||||||||
| Power capacity | Single phase, Three-phase 4-wire, Single phase 3-wire | 6 kVA · 4 kVA | 9 kVA · 6 kVA | 12 kVA · 8 kVA | 18 kVA · 12 kVA | 27 kVA · 18 kVA | |||||
| Maximum peak current*6 | Max. current (rms) × 4 (TYP) | ||||||||||
| Max. reverse current*7 | 30 % of the max. current (rms) | ||||||||||
| Load power factor*4 | 0 to 1 (leading or lagging) | ||||||||||
| Frequency*4 *8 *9 | 1 Hz to 999.9 Hz ★ | ||||||||||
*2 L/H range can be changed by means of a switch on the front panel. Resolution: 0.1V
*3 出When the output frequency is between 45 Hz and 65 Hz, with no load, and at room temperature. *4 When the maximum voltage is between 1 V and 100 V (L range) or 2 V and 200 V (H range) and the load power factor is between 0.8 and 1.When the output phase voltage is between 100 V and 150 V or 200 V and 300 V (AC mode) or ±100 V and ±212 V or ±200 V and ±424 V (DC mode), the output current is reduced by the output phase voltage.
When the load power factor is between 0 and 0.8, the output current is reduced by the load power factor. (AC mode) When the output frequency is between 1 Hz and 40 Hz, the output current is reduced by the output frequency. (AC mode) *5 The output phase mode can be changed by means of a key on the operation panel. “Poly” in the table indicates single- phase three-wire mode and three-phase four-wire mode. *6 When the output phase voltage is in the vicinity of the peak (±15 deg) (However, this is limited by the rated output current’s rms value). *7 When the output phase voltage is 100 V or 200 V and the output frequency is between 40 Hz and 999.9 Hz (reverse current is −90 deg to −180 deg / 90 deg to 180 deg out of phase with the output voltage).
*8 Resolution : 0.01Hz (1.00 Hz to 100.0 Hz), 0.1Hz(100.0 Hz to 999.9 Hz) *9 The “500Hz Limit Model” limits the maximum frequency up to 500Hz under the “Three-phase output”.
★ PCR-LE2 Series 500Hz Limit Model
The PCR-LE Series offers the type on each model that limits the maximum output frequency up to 500 Hz.
DC mode output ratings, AC+DC mode (for Single-phase and Single-phase Three-wire output only)
| Item/Model | PCR6000LE2 | PCR9000LE2 | PCR12000LE2 | PCR18000LE2 | PCR27000LE2 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3P3W200V | 3P4W400V | 3P3W200V | 3P4W400V | 3P3W200V | 3P4W400V | 3P3W200V | 3P4W400V | 3P3W200V | 3P4W400V | ||
| Phase voltage (output L range, output H range)*2 | ±1.4 V to ±212 V / ±2.8 V to ±424 V | ||||||||||
| Voltage setting range | -215.5 V to +215.5 V / -431.0 V to +431.0 V | ||||||||||
| Voltage setting accuracy (output L range, output H range) *10 | ± (0.05 % of set + 0.05 V / 0.1 V) | ||||||||||
| Max. current*4 | Single phase, Single phase 3-wire andThree-phase, L range, H range | 42 A, 21 A · 14 A, 7 A | 63 A, 31.5 A · 21 A, 10.5 A | 84 A, 42 A · 28 A, 14 A | 126 A, 63 A · 42 A, 21 A | 189 A, 94.5 A · 63 A, 31.5 A | |||||
| Max. instantaneous current*11 | Max. current (rms) × 3.6 | ||||||||||
| Power capacity | Single phase, Single phase 3-wire, Three-phase | 4.2 kW · 2.8 kW | 6.3 kW · 4.2 kW | 8.4 kW · 5.6 kW | 12.6 kW · 8.4 kW | 18.9 kW · 12.6 kW | |||||
*2 L/H range can be changed by means of a switch on the front panel. Resolution: 0.1V
*4 When the maximum voltage is between 1 V and 100 V (L range) or 2 V and 200 V (H range) and the load power factor is between 0.8 and 1.When the output phase voltage is between 100 V and 150 V or 200 V and 300 V (AC mode) or ±100 V and ±212 V or ±200 V and ±424 V (DC mode), the output current is reduced by the output phase voltage.
When the load power factor is between 0 and 0.8, the output current is reduced by the load power factor. (AC mode) When the output frequency is between 1 Hz and 40 Hz, the output current is reduced by the output frequency. (AC mode) *10 With no load at room temperature
*11 Limited by the rated output current’s rms value
Output voltage stability
| Item/Model | PCR6000LE2 | PCR9000LE2 | PCR12000LE2 | PCR18000LE2 | PCR27000LE2 | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| 3P3W200V | 3P4W400V | 3P3W200V | 3P4W400V | 3P3W200V | 3P4W400V | 3P3W200V | 3P4W400V | 3P3W200V | 3P4W400V | |
| Line regulation(With respect to changes in the rated range) | Within ±0.1 % | |||||||||
| Line regulation(With respect to 0 % to 100 % changes in the rating)*12 | ±0.3 V | ±0.5 V | ||||||||
| Output frequency variation in AC mode(Between 40 Hz and 999.9 Hz)*13 | Within ±0.5 % | Within ±1 % | ||||||||
| Ripple noise in DC mode(5 Hz to 1 MHz components) | 0.25 Vrms or less | 0.5 Vrms or less | ||||||||
| Ambient temperature variation(With respect to changes in the rated range)*14 | 100 ppm/ °C (TYP) | |||||||||
*12 When the output phase voltage is between 80 V and 150 V (L range) or 160 V and 300 V (H range) and the load power factor is 1. At the output terminal block. When the response mode is set to MEDIUM.(There is no F mode)
*13 When the output phase voltage is between 80 V and 150 V (L range) or 160 V and 300 V (H range) and the load power factor is 1. This is the output line regulation with 200 Hz as the reference. When the response mode is set to MEDIUM.(There is no F mode)
*14 When the output phase voltage is 100 V or 200 V and the output current is 0 A.
Output frequency stability, output voltage waveform distortion ratio, output voltage response speed, efficiency
| Item/Model | PCR6000LE2 | PCR9000LE2 | PCR12000LE2 | PCR18000LE2 | PCR27000LE2 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3P3W200V | 3P4W400V | 3P3W200V | 3P4W400V | 3P3W200V | 3P4W400V | 3P3W200V | 3P4W400V | 3P3W200V | 3P4W400V | ||
| Output frequency stability(With respect to changes in all rated ranges) | Within ±5×10– 5, Setting accuracy : Within ±1×10– 4 | ||||||||||
| Output voltage waveform distortion ratio*15 | 0.3 % or less | 0.5% or less | |||||||||
| Output voltage response speed*16 | 30 μs (TYP) | 50μs (TYP) | |||||||||
| Efficiency*1 | 58 % or more | ||||||||||
| Phase difference of the output phase voltage *17 | Resolution | 1deg | |||||||||
| Accuracy | Within ± (0.4° + f0×1.8×10– 3) deg f0 is the output frequency *18 | ||||||||||
*1 When the output phase voltage is 100 V or 200 V, the output current is the rated value, the load power factor is 1, and the output frequency is between 40 Hz and 999.9 Hz. *15 When the output phase voltage is between 80 V and 150 V (L range) or 160 V and 300 V (H range) and the load power factor is 1. When the response mode is set to MEDIUM.(There is no F mode) *16 When the output phase voltage is 100 V or 200 V, the load power factor is 1, and the output current changes from 0 A to the rated value and from the rated value to 0 A. *17 Phase difference between output voltages (phase voltages) when each phase is considered along with the neutral point.
Meters (fluorescent display)
| Item/Model | PCR6000LE2 | PCR9000LE2 | PCR12000LE2 | PCR18000LE2 | PCR27000LE2 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3P3W200V | 3P4W400V | 3P3W200V | 3P4W400V | 3P3W200V | 3P4W400V | 3P3W200V | 3P4W400V | 3P3W200V | 3P4W400V | |||
| Voltmeter *19 *20 | Resolution | RMS,AVE Display mode | 0.1 V | |||||||||
| Accuracy | RMS,AVE Display mode | Within ± (1 % of rdng + 2 digits) (10 V to 848 V and at room temperature) | ||||||||||
| Ammeter *19 *20 | Resolution | RMS,AVE Display mode Single phase · Poly phase | 0.1A · 0.01 A | 0.1 A | 0.1 A / 1 A · 0.1 A | |||||||
| Accuracy | RMS Display mode | Within ± (1% of reading + 2digits) (5 % of the max. rated current to max. rated current and at room temperature) | ||||||||||
| Wattmeter*20 | Resolution | Single phase · Poly phase | 1 W · 0.1 W / 1 W | 1 W | 1 W / 10 W | |||||||
| Accuracy | Within ± (1 % of reading + 3digits) (10 % of the rated power capacity to the rated power capacity, when the load power factor is 1, and at room temperature.) | |||||||||||
| Frequency meter*21 | Resolution | 0.01 Hz / 0.1 Hz | ||||||||||
*19 With the true rms display, a waveform with a crest factor of 3 or less.
*20 When the output frequency is between 45 Hz and 65 Hz.
*21 Displays the output frequency setting (frequency of the internal reference voltage)
General
| Item/Model | PCR6000LE2 | PCR9000LE2 | PCR12000LE2 | PCR18000LE2 | PCR27000LE2 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3P3W200V | 3P4W400V | 3P3W200V | 3P4W400V | 3P3W200V | 3P4W400V | 3P3W200V | 3P4W400V | 3P3W200V | 3P4W400V | |||
| Insulation resistance | Between input and chassis, output and chassis, input and output | 500 Vdc, 10 MΩ or more | ||||||||||
| Withstanding voltage | Between input and chassis, output and chassis, input and output | 1.5 kVac for 1 minute | ||||||||||
| Circuit method | Linear amplifier system | |||||||||||
| Environmental conditions | Operating temperature range / Storage temperature range | 0 °C to +50 °C / -10 °C to +60 °C | ||||||||||
| Operating humidity range / Storage humidity range | 20 % rh to 80 % rh (no condensation) / 90 % rh or less (no condensation) | |||||||||||
| Weight | Approx.140 kg (308.6 Ibs) | Approx.190kg (418.8 Ibs) | Approx.350 kg (771.6 Ibs) | Approx.480 kg (1058.2 Ibs) | Approx.630 kg (1388.9 Ibs) | |||||||
| Input terminal | Input terminal board [3φ] | M8 | M5 | M5 | M8 | M8 | M8 | |||||
| Output terminal | Output terminal board Single phase · Single phase 3-wire,Three-phase 4-wire | M8 · M5 | M8 · M8 | |||||||||
| Input power cord [Sold separately option] | Type | single-core cable | Required for the installation work, contact local distributor. | |||||||||
| The number | 3 pc | 4 pc | 5 pc | 4 pc | 5 pc | |||||||
| Conductor cross section/Length | 14mm2/3m | 8mm2/3m | 5.5mm2/3m | 14mm2/3m | 5.5mm2/3m | |||||||
| Accessories | Setup guide | 1 copy | ||||||||||
| Quick Reference | 1 each for English and Japanese | |||||||||||
| Safety information | 1 copy | |||||||||||
| CD-ROM(User’s manual) | 1 disc | |||||||||||
| Heavy Duty Warning Seals | 1 disc | – | ||||||||||
| Other | Electromagnetic compatibility (EMC) | EMC Directive 2014/30/EU. EN61326-1. EN 55011 The maximum length of all cables and wires connected to the PCR-LE Series must be less than 3 m. | – | |||||||||
| Safety | Low Voltage Directive 2014/35/EU, EN61010-1 (Class I, Pollution Degree2) | IEC 61010-1 (Class I, Pollution Degree2) | ||||||||||
Limit Values and Protection Functions
| Item/Model | PCR6000LE2 | PCR9000LE2 | PCR12000LE2 | PCR18000LE2 | PCR27000LE2 | ||
|---|---|---|---|---|---|---|---|
| Voltage | AC voltage upper limit AC voltage lower limit | 0.0 V to 305.0 V | |||||
| DC voltage upper limit DC voltage lower limit | -431.0 V to +431.0 V | ||||||
| Output overvoltage protection AC/AC+DC mode | 0.0 V to 474.1 V | ||||||
| Output overvoltage protection DC mode | -474.1 V to +474.1 V | ||||||
| Output undervoltage protection AC/AC+DC mode | 0.0 V to 474.1 V | ||||||
| Output undervoltage protection DC mode | -474.1 V to +474.1 V | ||||||
| Resolution | 0.1 V | ||||||
| Frequency | Upper limit Lowerlimit | 1 Hz to 999.9 Hz, 500 Hz LMT model: 1 Hz to 500 Hz (Three-phase output) | |||||
| Resolution | 0.01 Hz (1.00 Hz to 100.0 Hz), 0.1 Hz (100.0 Hz to 999.9 Hz) | ||||||
| Current | Current limit *1 AC mode | Single-phase output | 6.00A to 66.00A | 9.00A to 99.00A | 12.00A to 132.0A | 18.00A to 198.0A | 27.00A to 297.0A |
| Single-phase three-wire output Three-phase output | 2.00A to 22.00A | 3.00A to 33.00A | 4.00A to 44.00A | 6.00A to 66.00A | 9.00A to 99.00A | ||
| Current limit *1 DC/AC+DC mode | Single-phase output | 4.20A to 46.20A | 6.30A to 69.30A | 8.40A to 92.40A | 12.60A to 138.6A | 18.90A to 207.9A | |
| Single-phase three-wire output Three-phase output | 1.40A to 15.40A | 2.10A to 23.10A | 2.80A to 30.80A | 4.20A to 46.20A | 6.30A to 69.30A | ||
| Positive peak current limit *2 | Single-phase output | 6.00A to 264.0A | 9.00A to 396.0A | 12.00A to 528.0A | 18.00A to 792.0A | 27.00A to 1188A | |
| Single-phase three-wire output Three-phase output | 2.00A to 88.00A | 3.00A to 132.0A | 4.00A to 176.0A | 6.00A to 264.0A | 9.00A to 396.0A | ||
| Negative peak current limit *2 | Single-phase output | -6.00A to -264.0A | -9.00 A to -396.0 A | -12.00 A to -528.0 A | -18.00 A to -792.0 A | -27.00 A to -1188 A | |
| Single-phase three-wire output Three-phase output | -2.00A to -88.00A | -3.00 A to -132.0 A | -4.00 A to -176.0 A | -6.00A to -264.0A | -9.00 A to -396.0 A | ||
| Resolution *3 | 0.01 A (0.35 A to 100.0 A) , 0.1A (100.0 A to 1000 A) , 1 A (1000 A to 1188 A) | ||||||
*1 The current that can actually be supplied is 1.1 times the rated current or the current limit, whichever is less. *2 The current that can actually be supplied is the maximum peak current or the current limit, whichever is less. *3 You can set the current in 0.01 A/ 0.1 A/ 1 A steps, but it may not change at this resolution depending on the relationship with the internal D/A resolution.
Line-up
PCR-LE Series
PCR-LE2 Series
The PCR-LE2 Series are designed based on the PCR-LE Series that supports single-phase output, single-phase 3-wire output *, and three-phase output within the rated capacity by selecting the switch from the front panel operation. The PCR-LE2 series offer the same basic performance, using the common power unit of the PCR-LE Series, with providing easier installation and saving the space more efficiently compare to the individual allocation of the system for a singlephase, single-phase 3-wire, and threephase systems. The lineup of PCRLE2 Series are available in 5 models: 6 kVA, 9 kVA, 12 kVA, 18 kVA, and 27 kVA model.
Options
Input power cord/Power-sync cable
For PCR1000LE
For PCR2000LE
For PCR3000LE
For PCR4000LE
For PCR6000LE (single-phase, 2-wire)
For PCR6000LE (three-phase, three-wire)
For PCR9000LE (three-phase, three-wire)
For PCR6000LE / PCR9000LE (3-phase 4-wire)
Drivers
Parallel operation – Master *1 *2
Parallel operation – Slave *1 *2
Three-phase output driver / Three-phase output driver(500 Hz LMT)
For single-phase 3-wire output
Rack Mount Bracket
For PCR500LE
For PCR1000LE
For PCR2000LE
Connecting cable (for 2P05,3P05)
Power signal cable
Connecting cable
Power Signal Cable
Interface
For GPIB
for USB
For LAN/LXI
Analog *3 *4 *5 *6
IEC Dip·Simulator
Line Impedance Network
Extension cable for control panel
Base Hold Angles
*1 PCR500LE and PCR1000LE cannot be used. *2 Up to 5 units can be used in parallel. (Power within 27kVA) *3 Input waveforms are amplified and output as they are. *4 Multi-output models (6000LE2, 9000LE2) cannot amplify input waveforms in multi-phase output mode. *5 The output AC voltage value can be varied according to the input DC signal. *6 The multi-output models (6000LE2, 9000LE2) cannot control the amplitude in the multi-phase output mode.
Downloads
