PIA5100
PIA5100
50,000円 （税込：55,000円）
- Converts RS232C or USB interface to IEEE488.2 GPIB
- Easily connected with no driver required
- Communication conditions can be changed in custom mode
Overview

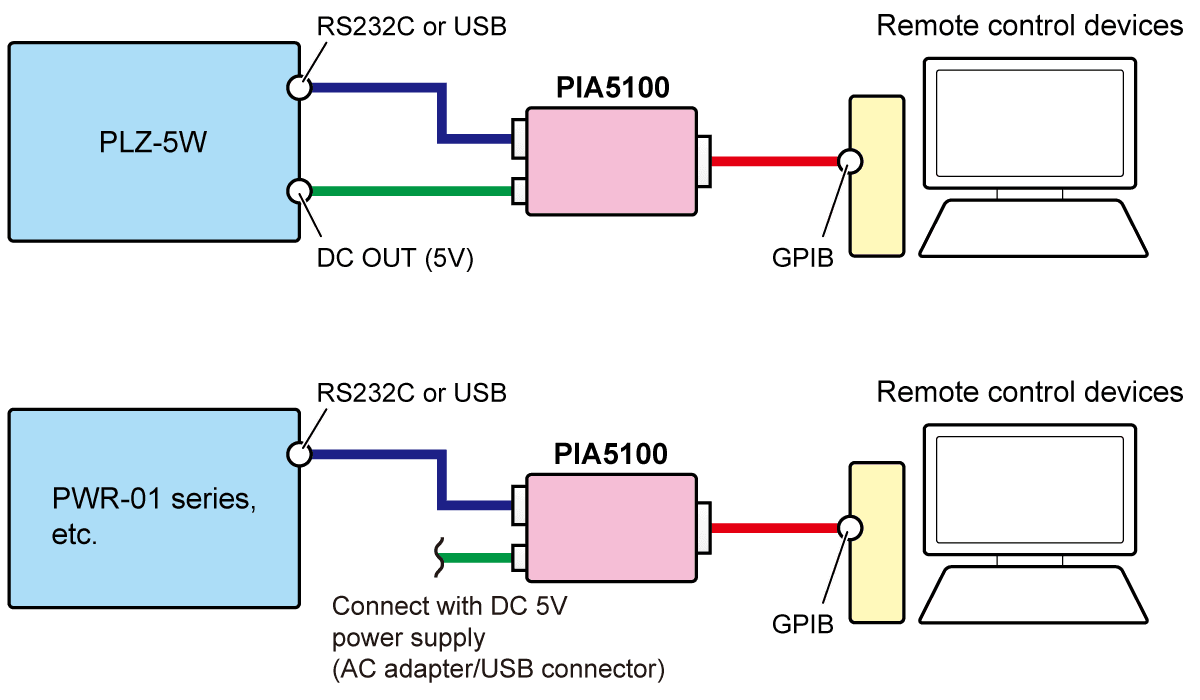

Simple conversion from RS232C/USB to GPIB
The PIA5100 is an interface converter that allows for instruments without a GPIB interface to be easily controlled through RS232C or USB*. This converter allows for communication with IEEE488.2 compatible measuring instruments and power supplies while removing the need for difficult configuration. Instruments not compatible with IEEE488.2 are also supported through communication programming in custom mode.
*Limited to equipment based on USB-TMC
Measuring Instruments/power supplies Whose Operations Have Been Checked
| Model name | Recommended settings |
|---|---|
| PLZ-5W Series Electronic Load | GPIB-CONV settings: RS232 CUSTOM MODE OFF |
| PWX Series Regulated DC Power Supply | GPIB-CONV settings: RS232 CUSTOM MODE OFF Queries need to be inserted periodically to avoid buffer overrun. *1 |
| PMX Series Regulated DC Power Supply | GPIB-CONV settings: RS232 CUSTOM MODE OFF Queries need to be inserted periodically to avoid buffer overrun. *1 |
| PWR-01 Series Regulated DC Power Supply | GPIB-CONV settings: RS232 CUSTOM MODE OFF Queries need to be inserted periodically to avoid buffer overrun. *1 |
| PCZ1000A AC Electronic Load | GPIB-CONV settings: RS232, CUSTOM MODE ON CUSTOM MODE settings: Bitrate = 9600 Stopbits = 2 Flow Control = Software Termination Character = 0x0A 488.2 Block Transfer = No IDN Query = IDN? KISTD Mode = No Queries need to be inserted periodically to avoid buffer overrun. *1 |
| PLZ-5WH2 Series Multifunctional Electronic Load | GPIB-CONV settings: RS232, CUSTOM MODE OFF |
| PXB Series Bidirectional DC power supply | GPIB-CONV settings: RS232, CUSTOM MODE OFF Queries need to be inserted periodically to avoid buffer overrun. *1 |
| PXT series Regulated DC Power Supply | GPIB-CONV settings: RS232, CUSTOM MODE OFF Queries need to be inserted periodically to avoid buffer overrun. *1 |
| PXZ Series Electronic Load | GPIB-CONV settings: RS232, CUSTOM MODE OFF Queries need to be inserted periodically to avoid buffer overrun. *1 |
*1 For the setting procedure, see the manual for the measuring instrument to be connected.
If considering series other than those described above, please contact our office.
Power Supply Methods
DC 5V is required for PIA5100 operations. Please prepare one of the following power sources (power supply methods).

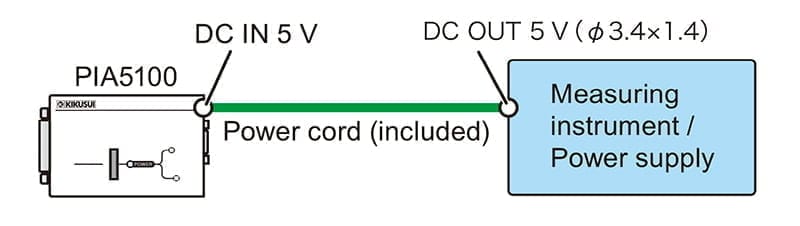

Power supply from the instrument / power supply
If the measuring instrument/power supply has a DC OUT 5V connector, you can use the supplied input power cord to supply power from the instrument/power supply.*Currently, the product with DC 5 V supply function is the PLZ-5W, PLZ-5WH.

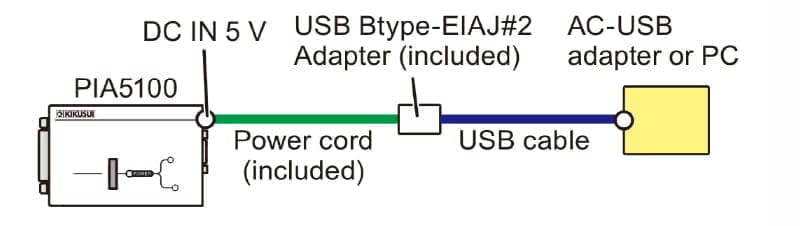

Power supply from the USB port
You can use the power cord set provided to supply power from an AC-USB adapter or a PC USB port.

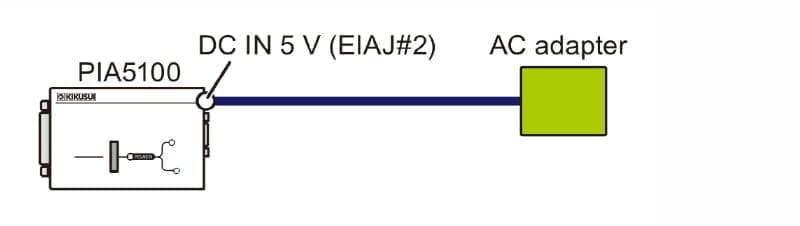

Power supply from the AC adapter
The AC adapter can be used to supply power
Functional Limitations
The following GPIB-specific functions are not available by default (factory default).
- Serial polling, parallel polling
- Remote local control
- Device clear
However, for serial polling and remote local control, equivalent functions can be used through similar commands.
Specifications
USB port
| USB specifications | Standard type A socket, USB1.1 Full-Speed |
|---|---|
| Control target measuring instrument/ power supply | Measuring instrument/power supply with SCPI or IEEE488.2 language specifications complying with USBTMC-USB488. However, operation is guaranteed only for measuring instruments/power supplies listed in “Measuring Instruments/power supplies Whose Operations Have Been Checked” . |
RS232C port
| UART specifications | Dsub 9 pin (Crossover cable connection with the measuring instrument/power supply) |
|---|---|
| Control target measuring instrument/ power supply | Measuring instrument/power supply with SCPI or IEEE488.2 language specifications and whose communication conditions can be set to 19200, no parity, 8, 1, and no flow. However, operation is guaranteed only for measuring instruments/power supplies listed in “Measuring Instruments/power supplies Whose Operations Have Been Checked”. |
SERVICE PORT connector
| USB specifications | Mini B type socket, USB1.1 Full-Speed |
|---|---|
| Supported protocol | Communication Device Class, Abstract Control Model (CDC-ACM) |
General specifications
| Input power supply | 5 V 0.25 A |
|---|---|
| DC IN 5V connector | EIAJ#2 |
| Operating temperature range | 0 °C to 50 °C (32 °F to 122 °F) |
| Operating humidity range | 20%rh to 85%rh (no condensation) |
| Storage temperature range | −20 °C to 70 °C (-4 °F to 158 °F) |
| Storage humidity range | 90 %rh or less (no condensation) |
| Weight | 200 g(0.44 Ibs) |
| Accessories | Power cord set (Input power cord (length: approx. 50 cm), USB Btype-EIAJ#2 adapter for input power supply) Magnetic sheet Operation Manuals |
Operation Manuals
Applications / firmware
firmware update
You can update the firmware of the PIA5100 by downloading the latest version of the firmware from the Downloads page of our website. To update the firmware, use the dedicated application Kikusui DFU GUI.
Changing communication conditions (custom mode)
The dedicated application ‘GPIB-CONVCustom Config’ can be used to change the communication conditions of the PIA5100. This is used when connecting to an instrument/power supply that does not comply with IEEE 488.2 or when communication is not possible under the default (factory default) communication conditions.
RS232C setting items
| Item | Setting range | Description |
|---|---|---|
| Bitrate | 1200 bps to 115200. bps Factory default is 19200 bps. | Sets the bit rate. |
| Stopbits | 1 / 2 | Sets the stop bits. |
| Flow Control | None/ Hardware/ Software | Sets fl ow control X-Flow for software CTS-RTS for hardware. |
| Termination Character | Any ASCII code. Factory default is 0x0A. | Sets the terminator character. |
| 488.2 Block Transfer | NO/ YES | Disables/enables IEEE488.2 block transfer. |
| IDN Query | Any string (up to 15 characters) Factory default is *IDN?. | Query for detecting measuring instru- ments/power supply at startup. |
| KISTD Mode *1 | NO/ YES | Disables/enables the KISTD SAFU protocol for clearing the limita- tion on GPIB-specific functions. |
*1. Only available on KISTD-compatible products. PWX series, PMX series, and PLZ-5W series are compatible (as of February 2016).
On-the-spot graphing of readout data.
| Item | Setting range | Description |
|---|---|---|
| Auto Serial Polling | NO / YES | Disables/enables auto serial polling. |
| Auto Serial Poll Interval | 50 ms〜 | Auto serial polling interval. |
