Dimensions / Weight
| W | H | D | |
|---|---|---|---|
| Dimensions | 214 mm (8.43 inch) | 80 mm (3.15 inch) | 300 mm (11.81 inch) |

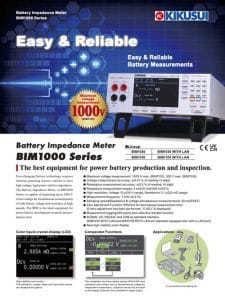

Battery Impedance Meter
BIM1000 Series
Price range: 260,000円 through 420,000円
- Measured voltage: max. 1000V (BIM1100), max. 300V (BIM1030)
- Voltage measurement accuracy: ±(0.01% of reading; 3 digit)
- Resistance measurement accuracy: ±(0.5% of reading; 5 digit)
- Resistance range: 3mΩ / 30mΩ / 300mΩ / 3Ω
- High resolution: voltage 10μV (6V range), resistance 0.1μΩ (3mΩ range)
- Measured frequency: 1kHz ±0.2Hz
- Sampling rate (voltage & resistance measurements): 20 ms (at FAST)
- Zero Adjustment Function: Effective for decreasing measure-ment error.
- Measurement logging (500 pairs) and collective transfer function
- SIGNAL I/O, RS232C, and USB included as standard
- New high visibility color display.
| Image | SKU | 標準価格 | WEBかんたんお見積り | ||
|---|---|---|---|---|---|
 | BIM1030 | ±300 V | - | 260,000円 （税込：286,000円） | |
| BIM1030 with LAN | ±300 V | with LAN | 280,000円 （税込：308,000円） | |
| BIM1100 | ±1000 V | - | 400,000円 （税込：440,000円） | |
| BIM1100 with LAN | ±1000 V | with LAN | 420,000円 （税込：462,000円） |
