Charge/Discharge System Controller

PFX2512

PFX2512

680,000 (税込:748,000

  • Maximum voltage: 60.0000 V /Maximum current: 50.0000 A
  • Capable of seamless charging/discharging (high speed charging/discharging transfer control)
  • Capable of high-precision measurement of cumulative capacities and amount of power as well as voltage and current
  • Pattern charging/discharging capabilities by 10000 steps are installed
  • Supporting temperature measurement and capable of monitoring temperatures during charging/discharging
  • High speed sampling with maximum 1 ms can be realized
  • A 6 V range is newly installed and is capable of high-precision measurement
  • Fully equipped with safety features of the overcharge protection using voltage, electric charge and temperature
  • Battery deterioration is prevented by turning off the output after detecting wobbling and shock with vibration sensor
  • LAN as standard equipment

*In addition to this product, a DC power supply, an electronic load, and a personal computer are required for the system configuration.


LAN LXIUKCA
カート機能が動くまでの

Specifications

Rated output
Open in a new windowZOOM
PFX2512PFX2532
Number of outputs1 ch
Charge current range *10.000 A to 50.000 A0.000 A to 200.000 A
Charge voltage range *160 V range0.000 V to 60.000 V
6 V range0.000 V to 6.000 V
Discharge current range *10.000 A to 50.000 A0.000 A to 200.000 A
Discharge voltage range *1 *260 V range0.000 V to 60.000 V
6 V range0.000 V to 6.000 V

*1 The range varies depending on factors such as the connected DC power supplies and electronic loads, the wiring configuration of the system, and the charge/discharge operation. *2 The minimum voltage that can be discharged varies depending on factors such as the connected electronic load models and the wiring configuration.

Accuracy of setting
Open in a new windowZOOM

Static

Constant current charge/discharge

PFX2512PFX2532
Range *10.000 A to 50.000 A0.000 A to 200.000 A
Accuracy *2*3
Resolution1 mA

Constant voltage charge/discharge

PFX2512PFX2532
Range *160 V range0.000 V to 60.000 V
6 V range0.000 V to 6.000 V
Accuracy *2*3
Resolution1 mV

Constant cell voltage charge/ discharge *4

PFX2512PFX2532
Range *10.000 A to 20.000 V
Accuracy *2*3
Resolution1 mV

Constant power discharge

PFX2512PFX2532
Range *10.1 W to 3000.0 W1 W to 12000 W
Accuracy *2±(0.5 % of set + 1 W) *5±(0.5 % of set + 10 W) *5
Resolution10 mW1 W

Pattern *6

Pattern constant current

PFX2512PFX2532
Range *1-50.000 A to 50.000 A-200.000 A to 200.000 A
Accuracy *2*3
Resolution1 mA
Number of settings10000 values (Maximum number of steps)
Time widthRange0.1 s to 9999.9 s (Time width for 1 step)
Accuracy *2±(0.05 % of set + 10 ms)
Resolution100 ms

Pattern constant power

PFX2512PFX2532
Range *1-3000.00 W to 3000.00 W-12000 W to 12000 W
Accuracy *2 *7±(0.5 % of set + 1 W) *5±(0.5 % of set + 10 W) *5
Resolution10 mW1 W
Number of settings10000 values (Maximum number of steps)
Time widthRange0.1 s to 9999.9 s
Accuracy *2±(0.05 % of set + 10 ms)
Resolution100 ms

*1 The range varies depending on factors such as the connected DC power supplies and electronic loads and the wiring configuration of the system. *2 Ambient temperature at 18 °C to 28 °C *3 The external devices are controlled through software so that the measured values are equal to the settings. The accuracy of the settings is the same as the measurement accuracy. Because this is dependent on the control cycle, correct control may not be possible for a DUT (battery) with high impedance or a DUT whose circuit is open. Control cycle for constant current / constant voltage control is 1 ms and for constant cell voltage control is 100 ms. *4 Can be set only when the optional Volt / Thermometer Unit OP02-PFX or OP03-PFX Voltmeter Unit is installed. *5 The battery voltage is measured, and the control current (constant current control) is calculated from the set power value through software calculation. The time required to process one calculation (from the voltage measurement to the output setting) is approximately 1 ms. *6 The operating voltage range is 1 V or more (when the TL10-PFX is being used; regardless of whether a bias DC power supply is being used). *7 With battery voltage of 2 V or more.

Measurement accuracy
Open in a new windowZOOM

Static

Charge / discharge current measurement

PFX2512PFX2532
Range0.0000 A to 50.0000 A *10.000 A to 200.000 A *1
Accuracy *2± (0.15 % of reading + 0.02 % of rating)± (0.2 % of reading + 0.1 % of rating)
Resolution0.1 mA1 mA

Voltage measurement

PFX2512PFX2532
Range60 V range-6.0000 V to 60.0000 V *3
6 V range-6.0000 V to 60.0000 V *4
Accuracy *2 *560 V range± (0.05 % of reading + 0.02 % of rating)
6 V range± (0.05 % of reading + 0.04 % of rating)
Resolution *50.1 mV

Power measurement

PFX2512PFX2532
Range0.000 W to 3000.000 W0.0 W to 12000.0 W
AccuracySoftware calculation (voltage measurement ✕ current measurenent)
Resolution1 mW100 mW

Current capacity calculation

PFX2512PFX2532
Range0.000 Ah to 2000.000 Ah
Accuracy *2Depends on the current measurement accuracy and the time accuracy
Resolution1 mAh

Power capacity calculation

PFX2512PFX2532
Range0.000 Wh to 120000.000 Wh
Accuracy *2Depends on the voltage measurement accuracy, current measurement accuracy and the time accuracy
Resolution1 mWh

Time *6

PFX2512PFX2532
Accuracy *2 *7±10 ppm (TYP values)

Pattern

Charge / discharge current measurement

PFX2512PFX2532
Range-50.0000 A to 50.0000 A *1-200.000 A to 200.000 A *1
Accuracy *2± (0.2 % of reading + 0.03 % of rating)± (0.2 % of reading + 0.1 % of rating)
Resolution0.1 mA1 mA
Measured valueAverage current, Update a data per period of 1 s

Voltage measurement

PFX2512PFX2532
Range60 V range-6.0000 V to 60.0000 V *3
 6 V range-1.0000 V to 6.0000 V *4
Accuracy *260 V range± (0.05 % of reading + 0.02 % of rating)
 6 V range± (0.05 % of reading + 0.04 % of rating)
Resolution *50.1 mV

Power measurement

PFX2512PFX2532
Range-3000.000 W to 3000.000 W-12000.00 W to 12000.00 W
Accuracy *2Software calculation (voltage measurement ✕ current measurenent)
Resolution1 mW10 mW

Current capacity calculation

PFX2512PFX2532
Range-2000.000 Ah to 2000.000 Ah
Accuracy *2Depends on the current measurement accuracy and the time accuracy
Resolution1mAh

Power capacity calculation

PFX2512PFX2532
Range-120000.000 Wh to 120000.000 Wh
Accuracy *2Depends on the voltage measurement accuracy, current measurement accuracy and the time accuracy
Resolution1 mWh

Time *6

PFX2512PFX2532
Accuracy *2 *7±10 ppm (TYP values)

*1 Measurable range: -210.000 A to 210.000 A (TYP). However, the accuracy is not guaranteed for values outside of the range listed in the table. *2 Ambient temperature at 18 °C to 28 °C. *3 Measurable range: -6.500 V to 65.000 V (TYP). However, the accuracy is not guaranteed for values outside of the range listed in the table. *4 Measurable range: -6.500 V to 6.500 V (TYP). However, the accuracy is not guaranteed for values outside of the range listed in the table. *5 The same for the 6 V range and 60 V range. *6 Accuracy of the elapsed time (Cutoff condition) when charging / discharging or resting. *7 Monthly error: approximately 30 seconds.

High speed sampling

Current measurement

PFX2512PFX2532
Range *1-50.0000 A to 50.0000 A-200.000 A to 200.000 A
Accuracy *1 *2 *31 ms sampling± (0.2 % of reading + 0.5 % of rating)± (0.4 % of reading + 0.5 % of rating)
10 ms sampling± (0.15 % of reading + 0.05 % of rating)± (0.3 % of reading + 0.1 % of rating)
100 ms sampling± (0.15 % of reading + 0.02 % of rating)± (0.2 % of reading + 0.1 % of rating)
Resolution1 ms sampling0.1 mA1 mA
10 ms sampling
100 ms sampling

Voltage measurement

PFX2512PFX2532
Range *160 V range-6.0000 V to 60.0000 V *4
6 V range-6.0000 V to 60.0000 V *5
Accuracy *1 *2 *31 ms sampling *6± (0.1 % of reading + 0.1 % of rating)
10 ms sampling *6± (0.1 % of reading + 0.05 % of rating)
100 ms sampling60 V range: ± (0.05 % of reading + 0.02 % of rating)
6 V range: ± (0.05 % of reading + 0.04 % of rating)
Resolution1 ms sampling0.1 mV. The same for all sampling settings.
10 ms sampling
100 ms sampling

*1 The accuracy is not guaranteed for values outside of the rated output range. *2 Ambient temperature at 18 °C to 28 °C. *3 The wavering caused by the ripple noise and AC line noise (50 Hz/ 60 Hz) of the DC power supply that you are using is not included. *4 Measurable range: -6.500 V to 65.000 V (TYP). However, the accuracy is not guaranteed for values outside of the range listed in the table. *5 Measurable range: -6.500 V to 6.500 V (TYP). However, the accuracy is not guaranteed for values outside of the range listed in the table. *6 The same for the 6 V range and 60 V range.

Temperature measurement
Open in a new windowZOOM

*The thermistor 103AT-2 (SEMITEC Corporation) is used for temperature detecting element.

Resistor (temperature) measuring section *1

 PFX2512PFX2532
Measurement range-40.0 °C to 100.0 °C
Measurement resolution0.1 °C
Measurement accuracy *2 *3± 0.5 °C (measurement temperature at 0 °C to 40.0 °C)
± 1 °C (measurement temperature at -20 °C to 80 °C)

Reference (thermistor 103AT)

 PFX2512PFX2532
Model103AT-2 by SEMITEC Corporation
R25Nominal zero-load resistance at 10.0 kΩ, 25 °C
Operating temperature range-50.0 °C to 110.0 °C
Temperature accuracy *3± 0.5 °C (measurement temperature at 0 °C to 40.0 °C)
Tolerance±1 %
Constant-B3435 K ± 1 % (measurement temperature at 25 °C)

*1 The temperature measurement does not trace the absolute temperature. Temperature converted from resistance. *2 Excludes temperature detector errors. *3 Ambient temperature at 18 °C to 28 °C

Protection functions
Open in a new windowZOOM
 PFX2512PFX2532
Overvoltage (overcharge) protectionSoftware OVP, Hardware OVP
Undervoltage (overdischarge) protectionSoftware UVP, Hardware UVP
Overcurrent protectionSoftware OCP *1, Hardware OCP Load shorting protection
Capacity (overcharge/overdischarge) protectionSoftware OAH *2
Overtemperature (DUT) protectionSoftware OTP
OtherVibration alarm

*1 For the software OCP, the application software automatically sets a value obtained by adding 5 A to the preset current. *2 The application software calculates the value by multiplying the nominal capacity by the preset percentage and sets the capacity.

General specifications
Open in a new windowZOOM
PFX2512PFX2532
Nominal input rating100 Vac to 240 Vac, 50 Hz/60 Hz
Input voltage range90 Vac to 250 Vac
Power consumption60 VAmax (when three OP02-PFXs are installed: 80 VAmax)
Operating temperature and humidity range0 °C to 40 °C (32 °F to 104 °F), 20 %rh to 85 %rh (no condensation)
Storage temperature and humidity range-10 °C to 60 °C (14 °F to 140 °F), 0 %rh to 90 %rh (no condensation)
Operating environmentIndoors, overvoltage category II
AltitudeUp to 2000 m
Isolation voltageBetween I/O terminals and chassis± 60 Vmax± 60 Vmax
Insulation resistance *4Between primary and chassis500 Vdc, 30 MΩ or greater, 70 %rh humidity or less
Primary and across the I/O terminals
Withstanding voltageBetween primary and chassisNo abnormalities at 1500 Vac for 1 minute
Primary and across the I/O terminals
Safety *1Complies with the require- ments of the following directive and standard. Low Voltage Directive 2014/35/EU *2 EN61010-1 (Class I *3, Pol- lution degree 2 *4)
Electromagnetic compatibility *1 *2Complies with the require- ments of the following directive and standard. EMC Directive 2014/30/EU EN61326-1 (Class A *5) EN55011 (Class A *5, Group 1 *6) EN61000-3-2, EN61000-3-3
Applicable under the following conditions. The maximum length of all cabling and wiring connected to the PFX2512 is less than 5 m.Applicable under the following conditions. The maximum length of all cabling and wiring connected to the PFX2532 is less than 3 m.
DimensionsSee the outline drawing
WeightApprox. 7 kg (15.43 lb)Approx. 17 kg (37.48 Ib)
AccessoriesPower cord *71 pc1 pc
Cable with Solderless terminal4 pcs (Red: 2 pcs, White: 2 pcs) 45 cm each (17.72 inch)
I/O terminal cover setThree terminal covers, six cable ties for locking
I/O terminal M8 screw set6 sets
Load input terminal cover setCover, four auxiliary bands
26-core flat cable1 pc1 pc
20-core flat cable1 pc1 pc
26-core cable (with ferrite core)1 pc
Sensing connector1 pc1 pc
Sensing connector cover setOne cover set, one cable tie for locking
Thermistor1 pc1 pc
Lock lever2 pcs2 pcs
LAN cable1 pc. Straight type1 pc. Straight type
Operation Manuals1 copy1 copy

*1 DoesnotapplytospeciallyorderedormodifiedPFX2512sandPFX2532s. *2 Limited to products that have the CE/UKCA mark on their panels. When the optional OP03-PFX Voltmeter Unit is used, compliance is achieve by using the optional TL12-PFX sensing cable (length: approx. 3 m, connector area: with cover, with core). *3 ThisisaClassIequipment.BesuretogroundthePFX2512’sandPFX2532’sprotectiveconduc- tor terminal. The safety of this product is only guaranteed when the product is properly grounded. *4 Pollution is addition of foreign matter (solid, liquid or gaseous) that may produce a reduction of dielectric strength or surface resistivity. Pollution Degree 2 assumes that only non-conductive pol- lution will occur except for an occasional temporary conductivity caused by condensation. *5 This is a Class A equipment. The PFX2512 and PFX2532 is intended for use in an industrial environment. This product may cause interference if used in residential areas. Such use must be avoided unless the user takes special measures to reduce electromagnetic emissions to prevent interference to the reception of radio and television broadcasts. *6 This is a Group 1 equipment. The PFX2512 and PFX2532 does not generate and/or use intention- ally radio-frequency energy, in the from of electromagnetic radiation, inductive and/or capacitive coupling, for the treatment of material or inspection/analysis purpose. *7 Because the power cord does not comply with CE/UKCA, it may not be included depending on the shipment destination.

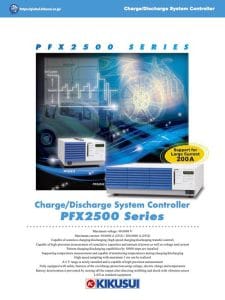

Product Catalog
