Smart Variable-switching Regulated DC Power Supply PAV Series

Communication Interface
New regular testing power supply with high performance switching system

Smart Variable-switching Regulated DC Power Supply PAV Series

Features

Smart Variable-switching Regulated DC Power Supply PAV Series

Palm-sized with
maximum power output at 800 W.

The PAV series is a compact, high power density, high performance constant voltage (CV) / constant current (CC) variable switching power supply.
The PAV consists of 64 models total* with 4 types of maximum power outputs
at 200 W, 400 W, 600 W and 800 W and output voltages from 10 V through 650 V.
All models are standardized to a same size with 2U high (approximately 88 mm) and have high power density for bench-top use.
The PAV series allows sequence settings with an embedded CPU as well as analog control.
A harmonic current control circuit is embedded with a power factor of 0.99 to take power environment into account.
* LAN model included (with LAN)

Versatile external control applications

Analog control/monitoring terminals support various applications.

Remote sensing

These features compensate voltage drops in wires from the output terminals to the load terminals of the PAV series.

Remote sensing

Output voltage and output current control using external voltage

It is possible to control the output voltage/output current of the PAV series by using an external voltage.

Output voltage and output current control using

Output voltage and output current control using external resistance

It is possible to control the output voltage/output current of the PAV series by using an external variable resistor.

Output voltage and output current control using

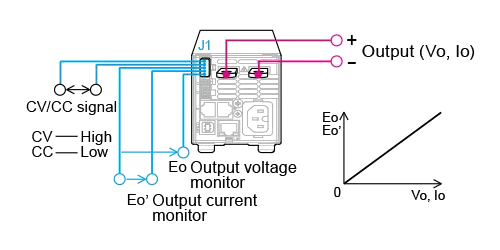

Output voltage/current remote monitoring and CV/CC signals

Voltages from 0 V to 5 V or 0 V to 10 V are output proportionally to the output voltage/current from the PAV series. The operation state becomes HIGH in CV constant voltage mode and LOW in CC constant current mode.

monitoring

Output on/off control

It is possible to turn the output ON/OFF of the PAV series by using an external contact.

Output on/off control

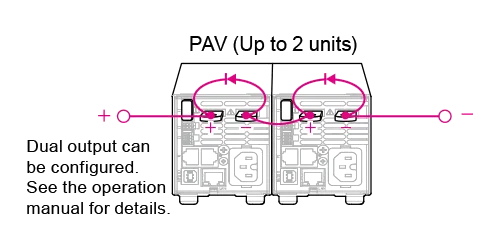

Series operation

You can connect PAV series with the same rating in series to increase the output voltage. (up to 2 units) Dual output configuration is also supported.

Series operation

Models whose rated output voltage is 10 V, 20 V or 36 V : ±60 Vdc or less
Models whose rated output voltage is 60 V or 100 V : ±100 Vdc or less
Models whose rated output voltage is 160 V, 320 V, or 650 V : ±650 Vdc or less

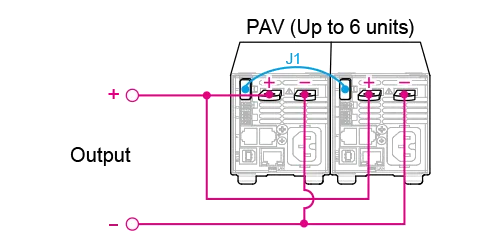

Master-slave parallel operation

The PAV series allows up to 6 parallel connections to increase the output current.

Parallel operation

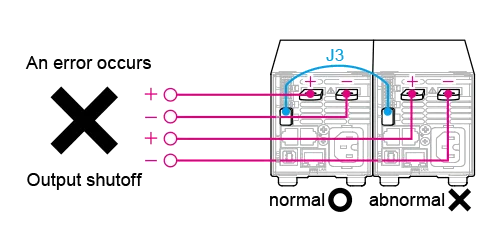

Daisy chain connection

A multiple power supply system configured with more than one PAV series allows to create a multi-power supply system that stops all the power supply outputs if any power supply fails.

Daisy chain connection

PS_OK signal

A failure is notified by a TTL level signal if the protection function is activated. The PS_ OK level is HIGH in normal operating state.

PS_OK signal

Communication Interface

J1 connector specificationsJ1 connector specifications

J3 connector specifications

J3 connector specifications Signals and functionsSignals and functions

USB/RS232C/RS485 Control

The PAV series employs USB/RS232C/RS485 interfaces as a standard. Up to 31 PAV series power supplies can be connected and controlled.
The USB/RS232C/RS485 interfaces are integrated in the PAV series main body.

RS232C/RS485 Control

Parallel operation/Synchronized operation

Parallel operation (PAV series with the same rating) and synchronized operation (trigger synchronization) are available.
Use of optional rack-mount adapter KRA2-PAV (allows up to 6 units) and half-size integrated chassis cover CC01- PAV (allows up to 3 units) allows integration for smart rack mounting and transportation.
*Parallel operation and synchronized operation can be achieved without the optional KRA2-PAV and CC01-PAV.

Parallel operation
Parallel operation/Synchronized operation
Synchronized Operation

example of using option

example of using option

PAV Series Rear Panel

Specifications

200W Type
Open in a new windowZOOM
SpecificationsOutputRippleLine regulationLoad regulationDimensionsWeightAC input
ModelCVCCCVCCCVCCCVCCTypeApprox.Voltagecurrent *1
PAV10-20
(with LAN)
0 to 10V0 to 20A5mVrms25mArms0.01%+2mV0.01%+2mA0.01%+2mV0.01%+5mAI2 kg (4.4 lbs)85 to 265V2.65/1.31A
PAV20-10
(with LAN)
0 to 20V0 to 10A6mVrms15mArms0.01%+2mV0.01%+2mA0.01%+2mV0.01%+5mAI2 kg (4.4 lbs)85 to 265V2.62/1.29A
PAV36-6
(with LAN)
0 to 36V0 to 6A6mVrms8mArms0.01%+2mV0.01%+2mA0.01%+2mV0.01%+5mAI2 kg (4.4 lbs)85 to 265V2.76/1.37A
PAV60-3.5
(with LAN)
0 to 60V0 to 3.5A7mVrms4mArms0.01%+2mV0.01%+2mA0.01%+2mV0.01%+5mAI2 kg (4.4 lbs)85 to 265V2.69/1.33A
PAV100-2
(with LAN)
0 to 100V0 to 2A8mVrms3mArms0.01%+2mV0.01%+2mA0.01%+2mV0.01%+5mAI2 kg (4.4 lbs)85 to 265V2.55/1.26A
PAV160-1.3
(with LAN)
0 to 160V0 to 1.3A10mVrms1.2mArms0.01%0.02%0.01%0.09%II2 kg (4.4 lbs)85 to 265V2.64/1.30A
PAV320-0.65
(with LAN)
0 to 320V0 to 0.65A25mVrms0.8mArms0.01%0.02%0.01%0.09%II2 kg (4.4 lbs)85 to 265V2.64/1.30A
PAV650-0.32
(with LAN)
0 to 650V0 to 0.32A60mVrms0.5mArms0.01%0.02%0.01%0.15%II2 kg (4.4 lbs)85 to 265V2.64/1.30A

*1 Input voltage 100 Vac / 200 Vac, at the rated output power, ambient temperature 25°C, If the LAN option is built in, the efficiency decreases by 0.5% and the input current increases by 0.5%.

400W Type
Open in a new windowZOOM
SpecificationsOutputRippleLine regulationLoad regulationDimensionsWeightAC input
ModelCVCCCVCCCVCCCVCCTypeApprox.Voltagecurrent *1
PAV10-40
(with LAN)
0 to 10V0 to 40A5mVrms70mArms0.01%+2mV0.01%+2mA0.01%+2mV0.01%+5mAI2 kg (4.4 lbs)85 to 265V5.05/2.47A
PAV20-20
(with LAN)
0 to 20V0 to 20A6mVrms40mArms0.01%+2mV0.01%+2mA0.01%+2mV0.01%+5mAI2 kg (4.4 lbs)85 to 265V4.98/2.45A
PAV36-12
(with LAN)
0 to 36V0 to 12A6mVrms15mArms0.01%+2mV0.01%+2mA0.01%+2mV0.01%+5mAI2 kg (4.4 lbs)85 to 265V5.25/2.57A
PAV60-7
(with LAN)
0 to 60V0 to 7A7mVrms8mArms0.01%+2mV0.01%+2mA0.01%+2mV0.01%+5mAI2 kg (4.4 lbs)85 to 265V5.10/2.50A
PAV100-4
(with LAN)
0 to 100V0 to 4A8mVrms3mArms0.01%+2mV0.01%+2mA0.01%+2mV0.01%+5mAI2 kg (4.4 lbs)85 to 265V4.80/2.37A
PAV160-2.6
(with LAN)
0 to 160V0 to 2.6A10mVrms1.5mArms0.01%0.02%0.01%0.09%II2 kg (4.4 lbs)85 to 265V5/2.44A
PAV320-1.3
(with LAN)
0 to 320V0 to 1.3A25mVrms1mArms0.01%0.02%0.01%0.09%II2 kg (4.4 lbs)85 to 265V5/2.44A
PAV650-0.64
(with LAN)
0 to 650V0 to 0.64A60mVrms0.6mArms0.01%0.02%0.01%0.09%II2 kg (4.4 lbs)85 to 265V5/2.44A

*1 Input voltage 100 Vac / 200 Vac, at the rated output power, ambient temperature 25°C, If the LAN option is built in, the efficiency decreases by 0.5% and the input current increases by 0.5%.

600W Type
Open in a new windowZOOM
SpecificationsOutputRippleLine regulationLoad regulationDimensionsWeightAC input
ModelCVCCCVCCCVCCCVCCTypeApprox.Voltagecurrent *1
PAV10-60
(with LAN)
0 to 10V0 to 60A5mVrms150mArms0.01%+2mV0.01%+2mA0.01%+2mV0.01%+5mAI2 kg (4.4 lbs)85 to 265V7.48/3.69A
PAV20-30
(with LAN)
0 to 20V0 to 30A5mVrms75mArms0.01%+2mV0.01%+2mA0.01%+2mV0.01%+5mAI2 kg (4.4 lbs)85 to 265V7.22/3.56A
PAV36-18
(with LAN)
0 to 36V0 to 18A5mVrms25mArms0.01%+2mV0.01%+2mA0.01%+2mV0.01%+5mAI2 kg (4.4 lbs)85 to 265V7.70/3.80A
PAV60-10
(with LAN)
0 to 60V0 to 10A12mVrms8mArms0.01%+2mV0.01%+2mA0.01%+2mV0.01%+5mAI2 kg (4.4 lbs)85 to 265V7.13/3.52A
PAV100-6
(with LAN)
0 to 100V0 to 6A15mVrms5mArms0.01%+2mV0.01%+2mA0.01%+2mV0.01%+5mAI2 kg (4.4 lbs)85 to 265V7.13/3.52A
PAV160-4
(with LAN)
0 to 160V0 to 4A10mVrms2mArms0.01%0.02%0.01%0.09%II2 kg (4.4 lbs)85 to 265V7.47/3.69A
PAV320-2
(with LAN)
0 to 320V0 to 2A30mVrms1.5mArms0.01%0.02%0.01%0.09%II2 kg (4.4 lbs)85 to 265V7.47/3.69A
PAV650-1
(with LAN)
0 to 650V0 to 1A60mVrms1mArms0.01%0.02%0.01%0.09%II2 kg (4.4 lbs)85 to 265V7.59/3.75A

*1 Input voltage 100 Vac / 200 Vac, at the rated output power, ambient temperature 25°C, If the LAN option is built in, the efficiency decreases by 0.5% and the input current increases by 0.5%.

800W Type
Open in a new windowZOOM
SpecificationsOutputRippleLine regulationLoad regulationDimensionsWeightAC input
ModelCVCCCVCCCVCCCVCCTypeApprox.Voltagecurrent *1
PAV10-72
(with LAN)
0 to 10V0 to 72A5mVrms180mArms0.01%+2mV0.01%+2mA0.01%+2mV0.01%+5mAI2 kg (4.4 lbs)85 to 265V9.00/4.45A
PAV20-40
(with LAN)
0 to 20V0 to 40A5mVrms100mArms0.01%+2mV0.01%+2mA0.01%+2mV0.01%+5mAI2 kg (4.4 lbs)85 to 265V9.65/4.75A
PAV36-24
(with LAN)
0 to 36V0 to 24A5mVrms31mArms0.01%+2mV0.01%+2mA0.01%+2mV0.01%+5mAI2 kg (4.4 lbs)85 to 265V10.30/5.10A
PAV60-14
(with LAN)
0 to 60V0 to 14A12mVrms28mArms0.01%+2mV0.01%+2mA0.01%+2mV0.01%+5mAI2 kg (4.4 lbs)85 to 265V10.00/4.95A
PAV100-8
(with LAN)
0 to 100V0 to 8A15mVrms12mArms0.01%+2mV0.01%+2mA0.01%+2mV0.01%+5mAI2 kg (4.4 lbs)85 to 265V9.5/4.7A
PAV160-5
(with LAN)
0 to 160V0 to 5A10mVrms2mArms0.01%0.02%0.01%0.09%II2 kg (4.4 lbs)85 to 265V9.34/4.61A
PAV320-2.5
(with LAN)
0 to 320V0 to 2.5A30mVrms1.5mArms0.01%0.02%0.01%0.09%II2 kg (4.4 lbs)85 to 265V9.34/4.59A
PAV650-1.25
(with LAN)
0 to 650V0 to 1.25A60mVrms1mArms0.01%0.02%0.01%0.09%II2 kg (4.4 lbs)85 to 265V9.43/4.66A

*1 Input voltage 100 Vac / 200 Vac, at the rated output power, ambient temperature 25°C, If the LAN option is built in, the efficiency decreases by 0.5% and the input current increases by 0.5%.
