Bidirectional High-Capacity DC Power Supply (CV/CC)
For progressive
PXB Series
electric applications
Our goal was to create a bidirectional power supply
that could meet “X” various requirements.
Ultra-compact: 20 kW in a single 3U size frame.
It can handle not only high voltages of 1500V but also has both power and regenerative modes.
Guarantees optimal operation at any stage of research, development, and manufacturing.
Bidirectional High-Capacity DC Power Supplies PXB Series
Condenses a 20 kW large-capacity output into a 3U-size chassis. Not only handling high voltages of 1500V, but also capable of both power and regeneration in both directions in a single unit.
We provide a new power supply test environment for electrical and electronic equipment that is becoming increasingly high-powered. In addition, a variety of analog, digital, and communication interfaces are provided for optimal operation at any stage of research, development, and manufacturing! A new generation of bidirectional DC power supplies that support the progression of advanced technologies.
High power density
high-power & compact
Condenses a 20 kW large-capacity output into a 3U-size chassis.
Bidirectional output
A single unit handles both power and regeneration.
For test applications such as inverters with increasing capacity.
1500V
Maximum voltage: 1500V high voltage compatible.
Selectable power input
Choose from 3-phase 3-wire 200 V or 400 V models. No output limitation for either input voltage.
Features
Click on an item to open its description.
Output power range 2 to 3 times mains-powered operation
Mains-powered power supply with a wide range of operating ranges and combinations of voltage and current settings. If the voltage of the connected DUT is lower than the voltage setting of the PXB series, current flows from the PXB series to the DUT. If the voltage of the connected DUT is higher than the voltage setting of the PXB series, current flows from the DUT to the PXB series.
Achieves high-speed rise and fall times
Achieves a rise/fall time of 10 ms, which is several tens of times faster than conventional switching power supplies. Enabling high-speed power fluctuation testing that cannot be handled by ordinary DC power supplies.
Highly stable operation with high resistance to capacitive loads
Designed for highly stable operation, without oscillation or overshoot even when a load with a large capacitive component is connected.
Slew rate and response can be varied to match the characteristics of the connected load, suppressing oscillation and overshoot.
Optimized for different purposes and applications, with selectable response speeds
The required power supply response time varies depending on the test conditions and load specifications. The response speed of the PXB Series power supply can be changed to suit different applications.
Up to 25 units can be operated in parallel, achieving 500 kW *
Including master machine, up to 25 units (500 kW) can be operated in parallel. Connection is with one-control parallel operation, and the panel of the master machine can control and display the entire system. With the automatic recognition function, the need for complicated settings is eliminated, allowing the construction of high-capacity systems.
* Parallel operation is possible between models with different input rated voltages. Please contact us if you wish to operate more than 10 units in parallel.
Click on an item to open its description.
Sequence function
Preset operations can be run continuously. Total of 30 programs, and up to 10,000 steps can be created for all programs. Programs stored in the unit’s memory, and data can be exported to a USB memory stick from the front panel.
Pulse function / Sign function
“Pulse” operation can be set, which repeatedly executes a binary setting, or “sine” operation, changing the current in a sinusoidal manner.
Regenerative function (on-premises) contributes to carbon neutrality.
When power is regenerated to the main unit from an inverter or battery, the load power is converted to reusable power and regenerated to the AC LINE. This can contribute to reducing the amount of heat exhaust and saving energy.
*Regenerative efficiency 90% or more (at rated load in Typ)
*The PXB series is designed for on-site regenerative power. Use in an environment where the power in the premises is greater than the regenerative power.
Selectable power input
Full output at rated power regardless of input voltage. Choose from 3-phase 3-wire 200 V or 400 V models. No output limitation for either input voltage.
Equipped with touch panel display
By pressing or swiping the display with a finger, the user can select an item on the screen or set a numerical value. The display is pressure-sensitive and can be operated even with gloves on.
Output power range 2 to 3 times mains-powered operation
Mains-powered power supply with a wide range of operating ranges and combinations of voltage and current settings. If the voltage of the connected DUT is lower than the voltage setting of the PXB series, current flows from the PXB series to the DUT. If the voltage of the connected DUT is higher than the voltage setting of the PXB series, current flows from the DUT to the PXB series.
Achieves high-speed rise and fall times
Achieves a rise/fall time of 10 ms, which is several tens of times faster than conventional switching power supplies. Enabling high-speed power fluctuation testing that cannot be handled by ordinary DC power supplies.
Highly stable operation with high resistance to capacitive loads
Designed for highly stable operation, without oscillation or overshoot even when a load with a large capacitive component is connected.
Slew rate and response can be varied to match the characteristics of the connected load, suppressing oscillation and overshoot.
Optimized for different purposes and applications, with selectable response speeds
The required power supply response time varies depending on the test conditions and load specifications. The response speed of the PXB Series power supply can be changed to suit different applications.
Up to 25 units can be operated in parallel, achieving 500 kW *
Including master machine, up to 25 units (500 kW) can be operated in parallel. Connection is with one-control parallel operation, and the panel of the master machine can control and display the entire system. With the automatic recognition function, the need for complicated settings is eliminated, allowing the construction of high-capacity systems.
* Parallel operation is possible between models with different input rated voltages. Please contact us if you wish to operate more than 10 units in parallel.
Sequence function
Preset operations can be run continuously. Total of 30 programs, and up to 10,000 steps can be created for all programs. Programs stored in the unit’s memory, and data can be exported to a USB memory stick from the front panel.
Pulse function / Sign function
“Pulse” operation can be set, which repeatedly executes a binary setting, or “sine” operation, changing the current in a sinusoidal manner.
Regenerative function (on-premises) contributes to carbon neutrality.
When power is regenerated to the main unit from an inverter or battery, the load power is converted to reusable power and regenerated to the AC LINE. This can contribute to reducing the amount of heat exhaust and saving energy.
*Regenerative efficiency 90% or more (at rated load in Typ)
*The PXB series is designed for on-site regenerative power. Use in an environment where the power in the premises is greater than the regenerative power.
Selectable power input
Full output at rated power regardless of input voltage. Choose from 3-phase 3-wire 200 V or 400 V models. No output limitation for either input voltage.
Touch panel display
By pressing or swiping the display with a finger, the user can select an item on the screen or set a numerical value. The display is pressure-sensitive and can be operated even with gloves on.
SEAM mode
Equipped with SEAM mode allowing current to flow in both directions without changing voltage values. Suitable for charging and discharging storage batteries. Can suppress current overshoots and undershoots which may often occur during operation mode switching after charge/ discharge.
Variable internal resistance feature
Function can change the output voltage value in constant voltage operation, according to the output current value based on the set resistance value. Simple simulation of Internal resistance of rechargeable batteries and wire harnesses etc.
Setting range | PXB20K-50 | 0 mΩ to 63 mΩ |
---|---|---|
PXB20K-250 | 0 mΩ to 1575 mΩ | |
PXB20K-500 | 0 mΩ to 5250 mΩ | |
PXB20K-1000 | 0 mΩ to 21000 mΩ | |
PXB20K-1500 | 0 mΩ to 63000 mΩ |
I-V characteristic function
By registering multiple arbitrary points on the I-V characteristics, arbitrary I-V characteristics can be set for each CC and CV operation mode. Arbitrary points can be registered from 3 to 100, making it possible to simulate the I-V characteristics of rechargeable batteries and other devices.
Reliable and solid performance even under high temperatures
Solid performance under operating temperatures of 0°C to 50°C. Exhibits full performance even in environments with severe ambient temperatures, such as when installed in equipment.
Caution: PXB20K-50 and PXB20K-250 operates in the temperature range of 0°C to +40°C.
Protection Functions for Safety Operation
- OVP (Over voltage protection)
- UVP (Under voltage protection)
- WDOG (Communication error protection)
- OPP (Over power protection)
- OCP (Over current protection)
- EXT LOW (External input alarm detection)
Priority Operation Mode
Mode of operation can be set, as constant voltage (CV), constant current (CC), or constant power (CP), when output is turned on. Overshoot can be prevented by setting CC mode priority when batteries, power supplies, etc. are connected.
External Control Function
The EXT CONT connector on the rear panel can be used to control the PXB series with external devices. The general-purpose digital input and output terminals can be assigned any function, facilitating system construction in combination with other measurement devices.
Digital I/O standard for both NPN and PNP type PLCs. Analog I/O is isolated from output terminals as standard, allowing safe analog control from PLC.
Terminal No. | Method | I/O | Name | Description |
---|---|---|---|---|
1 | Digital | O | OUT Ch.1 | General-purpose output terminal |
2 | Digital | O | OUT Ch.2 | General-purpose output terminal |
3 | Digital | O | OUT Ch.3 | General-purpose output terminal |
4 | – | – | DO COM | Digital output common |
5 | – | – | DI COM | Digital input common |
6 | Digital | I | IN Ch.1 | General-purpose input terminal |
7 | Digital | I | IN Ch.2 | General-purpose input terminal |
8 | Digital | I | IN Ch.3 | General-purpose input terminal |
9 | – | O | +12V OUT | 12 V reference voltage available for digital input |
10 | – | – | – | Not used |
11 | – | – | A COM | Analog signal common |
12 | Analog | O | VMON | Voltage monitor |
13 | Analog | O | IMON | Current monitor |
14 | Digital | O | OUT Ch.4 | General-purpose output terminal |
15 | Digital | O | OUT Ch.5 | General-purpose output terminal |
16 | Digital | O | OUT Ch.6 | General-purpose output terminal |
17 | – | – | DO COM | Digital output common |
18 | – | – | DI COM | Digital input common |
19 | Digital | I | IN Ch.4 | General-purpose input terminal |
20 | Digital | I | IN Ch.5 | General-purpose input terminal |
21 | Digital | I | H ALARM IN | HIGH alarm EXT HIGH occurrence |
22 | – | – | 12V COM | 12 V reference voltage common |
23 | – | – | A COM | Analog signal common |
24 | Analog | I | EXT CV | Voltage control in the constant voltage mode |
25 | Analog | I | EXT CC/CP | Current control in the constant current / power modes |
Method | Function |
---|---|
Analog input | Voltage and current value settings |
Analog output | Monitoring of voltage and current values |
General-purpose isolated digital input (Ch.1 to ch.5) *Photocoupler isolated input (Supports both current sink and source) |
|
Digital input (Ch.6) | HIGH alarm generation (Fixed) |
General-purpose isolated digital output (Ch.1 to ch.6) *Semiconductor relay output |
|
General-purpose isolated digital input terminals are available from Ch.1 to Ch.5. Any setting value from the items listed on the right can be selected.
General-purpose isolated digital output terminals are available from Ch.1 to Ch.6. Any setting value from the items listed on the right can be selected.
Applications
Specifications
Output rating
Item | PXB20K-50 | PXB20K-250 | PXB20K-500 | PXB20K-1000 | PXB20K-1500 |
---|---|---|---|---|---|
Rated power | ±20000 W | ±20000 W | ±20000 W | ±20000 W | ±20000 W |
Rated voltage (source) *1 | 0 V to 50 V | 0 V to 250 V | 0 V to 500 V | 0 V to 1000 V | 0 V to 1500 V |
Operating voltage (sink) *2 | 3 V to 50 V | 15 V to 250 V | 10 V to 500 V | 20 V to 1000 V | 30 V to 1500 V |
Rated current *1 | ±800 A | ±200 A | ±120 A | ±60 A | ±30 A |
*1. Limited by the maximum output power. *2. Operating voltage at which the rated sink current can be applied.
Output voltage
Item | PXB20K-50 | PXB20K-250 | PXB20K-500 | PXB20K-1000 | PXB20K-1500 | ||
---|---|---|---|---|---|---|---|
Maximum settable voltage | 52.5 V | 262.5 V | 525 V | 1050 V | 1575 V | ||
Setting accuracy | ±(0.2 % of setting + 0.1 % of rating) | ||||||
Setting resolution | 0.005 V | 0.02 V | 0.05 V | 0.1 V | 0.1 V | ||
Power fluctuation *1 | ±10 mV | ±50 mV | ±100 mV | ±200 mV | ±300 mV | ||
Load variation *2 | ±40 mV | ±125 mV | ±250 mV | ±500 mV | ±750 mV | ||
Remote sensing Maximum compensation voltage (reciprocating) | 10 % of rating | ||||||
Internal resistance setting upper limit | 63 mΩ | 1575 mΩ | 5250 mΩ | 21000 mΩ | 63000 mΩ | ||
Internal resistance setting resolution | 1 mΩ | 1 mΩ | 1 mΩ | 2 mΩ | 5 mΩ | ||
Response switching | FAST、SLOW | ||||||
Slew rate switching (TYP) | 12.5 V/ms or more *3 | 62.5 V/ms or more *3 | 125 V/ms or more *3 | 250 V/ms or more *3 | 375 V/ms or more *3 | ||
12.5 V/ms | 62.5 V/ms | 125 V/ms | 250 V/ms | 375 V/ms | |||
1.25 V/ms | 6.25 V/ms | 12.5 V/ms | 25.0 V/ms | 37.5 V/ms | |||
0.125 V/ms | 0.625 V/ms | 1.25 V/ms | 2.50 V/ms | 3.75 V/ms | |||
0.0125 V/ms | 0.0625 V/ms | 0.125 V/ms | 0.250 V/ms | 0.375 V/ms | |||
Source only *4 | Transient response *5 | 8 ms or less | 8 ms or less | 8 ms or less | 10 ms 以下 | 10 ms 以下 | |
Ripple noise *6 | p-p*7 | 250 mV | 375 mV | 1000 mV | 1500 mV | 2500 mV | |
rms*8 | 30 mV | 125 mV | 250 mV | 500 mV | 750 mV | ||
Rise time *9 | Full load *10 | 10 ms | |||||
No load | 10 ms | ||||||
Fall time *11 | Full load *10 | 10 ms | |||||
No load | 10 ms |
*1. 180 Vac to 252 Vac for 200 Vac input, 342 Vac to 504 Vac for 400 Vac input. At the constant load. *2. The amount of change that occurs when the load is changed from no load to full load (rated output power/rated output voltage) with rated output voltage. The value is measured at the sensing point. *3. MAX will appear on the display. *4. In the case that the CV mode response setting is set to FAST. *5. The amount of time required for the output voltage to return to a value within “rated output voltage ±(0.1 % + 10 mV).” The load current fluctuation is 50 % to 100 % of the maximum current with the set output voltage. *6. At the rated output current. Values measured using JEITA RC-9131C probe and 100:1 probe. *7. Measurement frequency band: 10 Hz to 20 MHz *8. Measurement frequency band: 10 Hz to 1 MHz *9. 10 % to 90 % of the rated output voltage. *10.For a pure resistance. *11. 90 % to 10 % of the rated output voltage.
Output current
Item | PXB20K-50 | PXB20K-250 | PXB20K-500 | PXB20K-1000 | PXB20K-1500 |
---|---|---|---|---|---|
Settable maximum source current *1 | +840 A | +210 A | +126 A | +63 A | +31.5 A |
Settable maximum sink current *1 | -840 A | -210 A | -126 A | -63 A | -31.5 A |
Seamless setting current range *1 | -840 A to +840 A | -210 A to +210 A | -126 A to +126 A | -63 A to +63 A | -31.5 A to +31.5 A |
Setting accuracy | ±(0.75 % of rating) | ||||
Setting resolution | 0.1 A | 0.02 A | 0.01 A | 0.005 A | 0.002 A |
Line regulation | ±1600 mA | ±400 mA | ±240 mA | ±120 mA | ±60 mA |
Load regulation | ±1600 mA | ±400 mA | ±240 mA | ±120 mA | ±60 mA |
Rise time (Short-circuit) (TYP) *2 | 5 ms | ||||
Fall time (Short-circuit) (TYP) *3 | 5 ms | ||||
Charge/discharge switching time (TYP) | 10 ms | ||||
Response switching | FAST, SLOW | ||||
Slew rate switching (TYP) *4 | 200 A/ms or more *3 | 50 A/ms or more *3 | 30 A/ms or more *3 | 15 A/ms or more *3 | 7.5 A/ms or more *3 |
200 A/ms | 50 A/ms | 30 A/ms | 15 A/ms | 7.5 A/ms | |
20 A/ms | 5 A/ms | 3 A/ms | 1.5 A/ms | 0.75 A/ms | |
2 A/ms | 0.5 A/ms | 0.3 A/ms | 0.15 A/ms | 0.075 A/ms | |
0.2 A/ms | 0.05 A/ms | 0.03 A/ms | 0.015 A/ms | 0.0075 A/ms |
*1. During parallel operation, this will be the value multiplied by the number of units in the configuration. *2. In the case that the CC mode response setting is set to FAST: Applied in response to changes from 10 % to 90 % of rated output current. *3. In the case that the CC mode response setting is set to FAST: Applied in response to changes from 90 % to 10 % of rated output current. *4. MAX will appear on the display.
Output power
Item | Common to all models |
---|---|
Settable maximum source power | +21000 W |
Settable maximum sink power | -21000 W |
Seamless setting power range | -21000 W to +21000 W |
Setting accuracy *1 | ±(0.5 % of power rating + 0.5 % of current rating × Vout) |
Resolution | 2 W |
*1. Equal to or higher than 5 % of the rated power is guaranteed. Less than 5 % of the rated power is guaranteed as a TYP value.
200 V three-phase three-wire input
Item | Common to all models |
---|---|
Nominal input rating | 200 Vac to 240 Vac, 50 Hz to 60 Hz |
Input voltage range | 180 Vac to 252 Vac |
Input frequency range | 47 Hz to 63 Hz |
Input current (MAX)*1 | 80 A (180 V) |
Input power (MAX)*1 | 24 kVA |
Inrush current (TYP)*2 | 90 A |
Power factor (TYP)*1 | 0.96 |
Output hold time | 10 ms or more |
*1. At the rated output power for the rated output current. *2. Maximum peak current value when the POWER switch is turned on. (Excluding the surge current to the input filter capacitor.)
400 V three-phase three-wire input
Item | Common to all models |
---|---|
Nominal input rating | 380 Vac to 480 Vac, 50 Hz to 60 Hz |
Input voltage range | 342 Vac to 504 Vac |
Input frequency range | 47 Hz to 63 Hz |
Input current (MAX)*1 | 40 A (342 V) |
Input power (MAX)*1 | 24 kVA |
Inrush current (TYP)*2 | 70 A |
Power factor (TYP)*1 | 0.96 |
Output hold time | 10 ms or more |
*1. At the rated output power for the rated output current. *2. Maximum peak current value when the POWER switch is turned on. (Excluding the surge current to the input filter capacitor.)
Display
Item | PXB20K-50 | PXB20K-250 | PXB20K-500 | PXB20K-1000 | PXB20K-1500 | |
---|---|---|---|---|---|---|
Voltmeter | Maximum display | ±60.000 V | ±300.00 V | ±600.00 V | ±1200.00 V | ±1800.00 V |
Display accuracy | ±(0.1 % of reading + 0.2 % of rating) | |||||
Ammeter | Maximum display | ±1120.000 A | ±336.000 A | ±168.000 A | ±84.000 A | ±42.000 A |
Display accuracy | ±(0.75 % of rating) | |||||
Wattmeter | Maximum display *1 | ±24.000 kW | ||||
Display accuracy | Display the integrated value of voltmeter and ammeter | |||||
Operation display | Output ON / OFF | The OUTPUT LED on the front panel lights in green | ||||
Operation mode | Indicate the followings on the upper left part of the display | |||||
CV: CV icon | ||||||
CC: CC icon | ||||||
CP: CP icon | ||||||
Remote (LAN) | Indicate the followings on the upper left part of the display | |||||
Not connected: Red LAN icon | ||||||
Preparing for connection: Orange LAN icon | ||||||
Connected: Green LAN icon | ||||||
Alarm | Indicate the details of activated protection function on the display | |||||
SCPI error | Indicate the error occurring at present on the display | |||||
POWER off | Indicate residual charge warning and an instruction to turn off the display, then reboot | |||||
key lock | Indicate the key lock status on the upper right part of the display | |||||
Sensing | When sensing is enabled, indicate the sensing icon on the upper right part of the display | |||||
During parallel operation | Displaying the slave state on the slave unit | |||||
External control | When digital input/output is enabled, indicate the EXT icon on the upper right part of the display |
*1 The unit will be W if it is less than 10 kW.
Protection specifications LOW alarm
Item | PXB20K-50 | PXB20K-250 | PXB20K-500 | PXB20K-1000 | PXB20K-1500 | |
---|---|---|---|---|---|---|
OVP (Over Voltage Protection) | Protective operation | Output off, indicate “OVP” on the display. SLV OVP is displayed on the slave unit. | ||||
Selectable range | 5 V to 55 V | 25 V to 275 V | 50 V to 550 V | 100 V to 1100 V | 150 V to 1650 V | |
Setting accuracy | ±(0.1 % of setting + 0.2 % of rating) | |||||
Resolution | 0.005 V | 0.02 V | 0.05 V | 0.1 V | 0.1 V | |
OCP (Over Current Protection) | Protective operation | Output off, indicate “OCP” on the display. SLV OCP is displayed on the slave unit. | ||||
Setting range (Source) *1 | 80 A to 880 A | 20 A to 220 A | 12 A to 132 A | 6 A to 66 A | 3 A to 33 A | |
Setting range (Sink) *1 | -80 A to -880 A | -20 A to -220 A | -12 A to -132 A | -6 A to -66 A | -3 A to -33 A | |
Setting accuracy | ±(0.75 % of rating) | |||||
Resolution | 0.1 A | 0.02 A | 0.01 A | 0.005 A | 0.002 A | |
OPP (Over Power Protection) | Protective operation | Output off, indicate “OPP” on the display. SLV OPP is displayed on the slave unit. | ||||
Setting range (Source) *1 | 2 kW to 24 kW | |||||
Setting range (Sink) *1 | -2 kW to -24 kW | |||||
Setting accuracy | ±(1.0 % of power rating +1.0 % of current rating × Vout) | |||||
Resolution | 2 W | |||||
UVP (Under Voltage Protection) | Protective operation | Output off, indicate “UVP” on the display. SLV UVP is displayed on the slave unit. | ||||
Selectable range | 0 V to 50 V | 0 V to 250 V | 0 V to 500 V | 0 V to 1000 V | 0 V to 1500 V | |
Selectable | Enable/Disable | |||||
Setting accuracy | ±(0.1 % of setting + 0.2 % of rating) | |||||
Resolution | 0.005 V | 0.02 V | 0.05 V | 0.1 V | 0.1 V | |
Watchdog Alarm (Communication error protection) | Protective operation | Output off, indicate “WDOG” on the display | ||||
Selectable range | 1 s to 3600 s | |||||
Selectable | Enable/Disable | |||||
External Alarm LOW Level (external input alarm detection) | Protective operation | Output off, indicate “EXT LOW” on the display |
*An alarm not requiring a reboot to be cleared. *1. During parallel operation, this will be the value multiplied by the number of units in the configuration.
Protection Specifications HIGH alarm
Item | Common to all models | |
---|---|---|
Reverse Alarm (Reverse-connection detection protection) | Protective operation | Output off, indicate “REVE” on the display |
OHP (Overheat protection) | Protective operation | Output off, indicate “OHP” on the display. SLV OHP is displayed on the slave unit. |
Line OVP (Grid overvoltage protection) | Protective operation | Output off, indicate “LOVP” on the display. SLV LOVP is displayed on the slave unit. |
Selectable range | Input voltage rating 200 Vac model: 200 V to 258 V Input voltage rating 400 Vac model: 380 V to 516 V | |
Line UVP (Grid undervoltage protection) | Protective operation | Output off, indicate “LUVP” on the display. SLV LUVP is displayed on the slave unit. |
Selectable range | Input voltage rating 200 Vac model: 175 V or less. Input voltage rating 400 Vac model: 333 V or less. | |
Line Frequency Error (Grid abnormal frequency protection) | Protective operation | Output off, indicate “FREQ” on the display. SLV FREQ is displayed on the slave unit. |
Detection value | 42 Hz/68 Hz | |
External Alarm HIGH Level (External input alarm detection) | Protective operation | Output off, indicate “EXT HIGH” on the display |
SENS Alarm (incorrect sensing connection detection) | Protective operation | Output off, indicate “SENS” on the display |
Setting range | Enable/Disable | |
Parallel Communication Error (Parallel operation communication error detected) | Protective operation | Output off, indicate “PARA COM” on the display |
Para Other Slave Alarm (Parallel operation slave error occurred) | Protective operation | Output off, indicate “SLV OTHR” on the display |
Incorrect Slave Alarm (Not applicable device connected) | Protective operation | Output off, indicate “SLV INC” on the display |
Too many connections (Too many parallel connections) | Protective operation | Output off, indicate “TOO MANY” on the display |
Hardware ERR *1 (Hardware error) | Protective operation | Output off, indicate “ERRH” on the display. SLV ERRH is displayed on the slave unit. |
Software ERR *2 (Software error) | Protective operation | Output off, indicate “ERRS” on the display. SLV ERRS is displayed on the slave unit. |
*An alarm requiring a reboot to be cleared. *1. It occurs when an abnormality related to the hardware is detected and the internal unit comes to an emergency stop. *2. It occurs when an abnormality related to the software is detected and the internal unit comes to an emergency stop.
External analog I/O
Item | Common to all models | ||
---|---|---|---|
Input | Input points | 2 points | |
Voltage (CV) control | Setting range | 0 % to 100 % of the rated output voltage | |
Input voltage range | 0 V to +5 V or 0 V to +10 V (Selectable) | ||
Accuracy | ±(1 % of rating) | ||
Current (CC) control Power (CP) control *1 | Setting range | −100 % to +100 % of the rated current and rated power | |
Input voltage range | −5 V to +5 V or −10 V to +10 V (Selectable) | ||
Accuracy | ±(1 % of rating) | ||
Output | Output points | 2 points | |
Voltage monitor (VMON) | Monitor range | 0 % to 100 % of the rated output voltage | |
Output voltage range | 0 V to +5 V or 0 V to +10 V (Selectable) | ||
Accuracy | 1 % of rating | ||
Current monitor (IMON) | Monitor range | −100 % to +100 % of the rated output voltage | |
Output voltage range | −5 V to +5 V or −10 V to +10 V (Selectable) | ||
Accuracy | ±(1 % of rating) |
*1 Select either current control or power control.
External digital input
Item | Common to all models | |
---|---|---|
Fixed input points | 1 point (Polarity switchable) | |
Selected input points | 5 points (Polarity switchable) | |
Input form | Photocoupler isolated input (Applicable to both current sink / source output) | |
Fixed function | ALARM IN | HIGH alarm occurrence |
Selecting function | OFF | Do not use terminals |
OUTPUT ON | Turn on the output | |
OUTPUT OFF | Turn off the output | |
OUTPUT CTRL | Turn on of off the output | |
L ALARM IN | LOW alarm occurrence | |
ALARM CLR | LOW alarm clearance | |
SEQ RUN | Sequence start/end | |
SEQ PAUSE | Sequence pause/resume | |
INTEG CTRL | Starting/stopping integration measurement | |
INTEG RESET | Resetting integration measurement data | |
ACQUIRE TRIG | Input the measurement trigger | |
SEQ TRIG IN | Input the trigger for sequence | |
MEM1 RECALL | Recall preset memory 1 | |
MEM2 RECALL | Recall preset memory 2 | |
External circuit power supply range | 12 V to 24 Vdc (±10 %) |
External digital output
Item | Common to all models | |
---|---|---|
Output points | 6 points (Polarity switchable) | |
Output form | Semiconductor relay output | |
Selecting function | OFF | Do not use terminals |
OUTPUT ON | Outputting the signal while the output is ON | |
POWER ON | Signal is output when power supply is on and output is possible | |
H ALARM OUT | Output a signal when a HIGH alarm occurs | |
L ALARM OUT | Output a signal when a LOW alarm occurs | |
CC STATUS | Output a signal when operating in the CC mode | |
CV STATUS | Output a signal when operating in the CV mode | |
SEQ TRIG OUT | Output the trigger for sequence | |
SEQ STATUS | Signal is output while the sequence is running | |
EXT DIN BUSY | Output a signal when the digital input is in BUSY status | |
MEM1 ACT TIME | Signal is output when the setting is completed for preset memory 1 | |
MEM2 ACT TIME | Signal is output when the setting is completed for preset memory 2 | |
RELAY DRIVE | Output a signal after approx. 100 ms in step with on/off of the DC OUTPUT terminal output. You can set this parameter to only Ch.6. |
Communication interface
Item | Common to all models | |
---|---|---|
Common specifications | Software protocol | IEEE std. 488.2-1992 |
Command language | Complies with SCPI Specification 1999.0 | |
RS232C | Hardware | D-SUB 9-pin connector Baud rate: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps Data length: 8 bits, Stop bits: 1 bit, Parity bit: None Flow control: No, CTS-RTS |
Program message terminator | LF during reception, LF during transmission. | |
USB (device) | Hardware | Standard type B socket. Complies with the USB 2.0 specifications; data rate: 480 Mbps (high speed) |
Program message terminator | LF or EOM during reception, LF + EOM during transmission | |
Device class | Complies with the USBTMC-USB488 device class specifications | |
USB (host) | Hardware | Standard type A socket. Complies with the USB 2.0 specifications; data rate: 480 Mbps (high speed) |
LAN | Hardware | IEEE 802.3 100BASE-TX or 10BASE-T Ethernet |
Communication protocol | SCPI-RAW, SCPI-Telnet, HiSLIP, VXI-11 | |
Program message terminator | SCPI-RAW: LF during reception, LF during transmission HiSLIP: LF or END during reception, LF + END during transmission. | |
Compliant standards | LXI Version 1.5 Specifications 2016 |
Others
Item | Common to all models | ||
---|---|---|---|
Synchronization function (clock synchronization) | Overview | SYNC icon is displayed on the display when synchronization is established with the internal clock after connecting with other PXB series using the EXT SYNC connector. | |
Sequence synchronization | Synchronization of the program start and step start. | ||
Measurement synchronization | Synchronization of the measurement start | ||
Output synchronization | Synchronization of output ON/OFF | ||
Sequence function | Operation mode | CV, CC, and CP modes | |
Maximum number of programs | 30 | ||
Maximum number of steps | 10000 | ||
Step execution time | 1 ms to 3600 000 s | ||
Loop count | 1 to 100000, or infinite | ||
Sine Function | Operation mode | CV/CC mode | |
Frequency setting range | 1 Hz to 1000 Hz | ||
Frequency resolution | 1 Hz to 10 Hz | 0.2 Hz | |
12 Hz to 100 Hz | 2 Hz | ||
120 Hz to 1000 Hz | 20 Hz | ||
CV | Maximum setting | Setting range up to 105 % of rated voltage | |
Maximum offset setting | Setting range up to 105 % of rated voltage | ||
CC | Maximum setting | Setting range up to 210 % of rated current | |
Maximum offset setting | Setting range up to ±105 % of rated current | ||
Pulse function | Operation mode | CV/CC mode | |
Frequency setting range | 1 Hz to 1000 Hz | ||
Frequency resolution | 1 Hz to 10 Hz | 0.01 Hz | |
12 Hz to 100 Hz | 0.1 Hz | ||
120 Hz to 1000 Hz | 1 Hz | ||
CV | High level rated current | Setting range up to 105 % of rated voltage | |
Low level rated current | Setting range up to 105 % of rated voltage | ||
CC | High level rated current | Setting range up to 105 % of rated current | |
Low level rated current | Setting range up to 105 % of rated current | ||
Duty cycle | 2.5 % to 97.5 % | ||
Measurement trigger | Measurement start condition (trigger source) | Conditions for starting measurement can be selected (when inputting from display, when inputting commands by remote control, when inputting signals by external control, and when operating in synchronization) | |
Number of measurements | 1 to 65536 | ||
Measurement delay time | Setting range | 0 s to 100 s | |
Resolution | 0.1 ms | ||
Measurement interval | Setting range | 0.1 ms to 3600 s | |
Resolution | 0.1 ms | ||
Measurement time | Setting range | 0.1 ms to 1 s | |
Resolution | 0.1 ms | ||
I-V characteristic function | Operation mode | CV/CC mode | |
Number of setup items | 3 to 100 items (interpolated between points with straight lines) | ||
Preset memory | Number of memory entries | 20 | |
Saved setting | Values in CV, CC, and CP modes, protection function values, and IR values | ||
Setup Memory | Number of memory entries | 21 | |
Saved setting | On/off of the output from the DC OUTPUT terminal, Output voltage value/Output current value/Output power value, Output current for seamless operation (DC SEAM), Output mode, Response, Slew Rate, Priority operation mode (Priority when output is ON), Impedance Setting When the Output is Off (Impedance when output is OFF), Value of the pulse function (Duty, Frequency, High, Low), Value of the sine function (Amplitude, Frequency, Offset), Number of I-V characteristics (Count), Internal resistance value (IR), Over voltage protection (OVP), Under voltage protection (UVP, UVP Enable), Over current protection (OCP(+), OCP(-), Delay), Over power protection (OPP(+), OPP(-)), Line overvoltage protection (Line OVP), Measurement trigger settings (Source, Count, Delay, Enable, Timer), Integration settings (Gate, Reset) | ||
key lock | Level 1 | Output on/off and preset memory recall are available | |
Level 2 | Output on/off are available | ||
Level 3 | Output off is available | ||
Number of parallel operated load modules | Up to 25 units |
General specifications
Item | PXB20K-50 | PXB20K-250 | PXB20K-500 | PXB20K-1000 | PXB20K-1500 | |
---|---|---|---|---|---|---|
Weight | Approx. 41 kg (90.39 lbs) | Approx. 39 kg(85.98 lbs) | Approx. 38 kg (83.78 lbs) | Approx. 37 kg (81.57 lbs) | Approx. 37 kg (81.57 lbs) | |

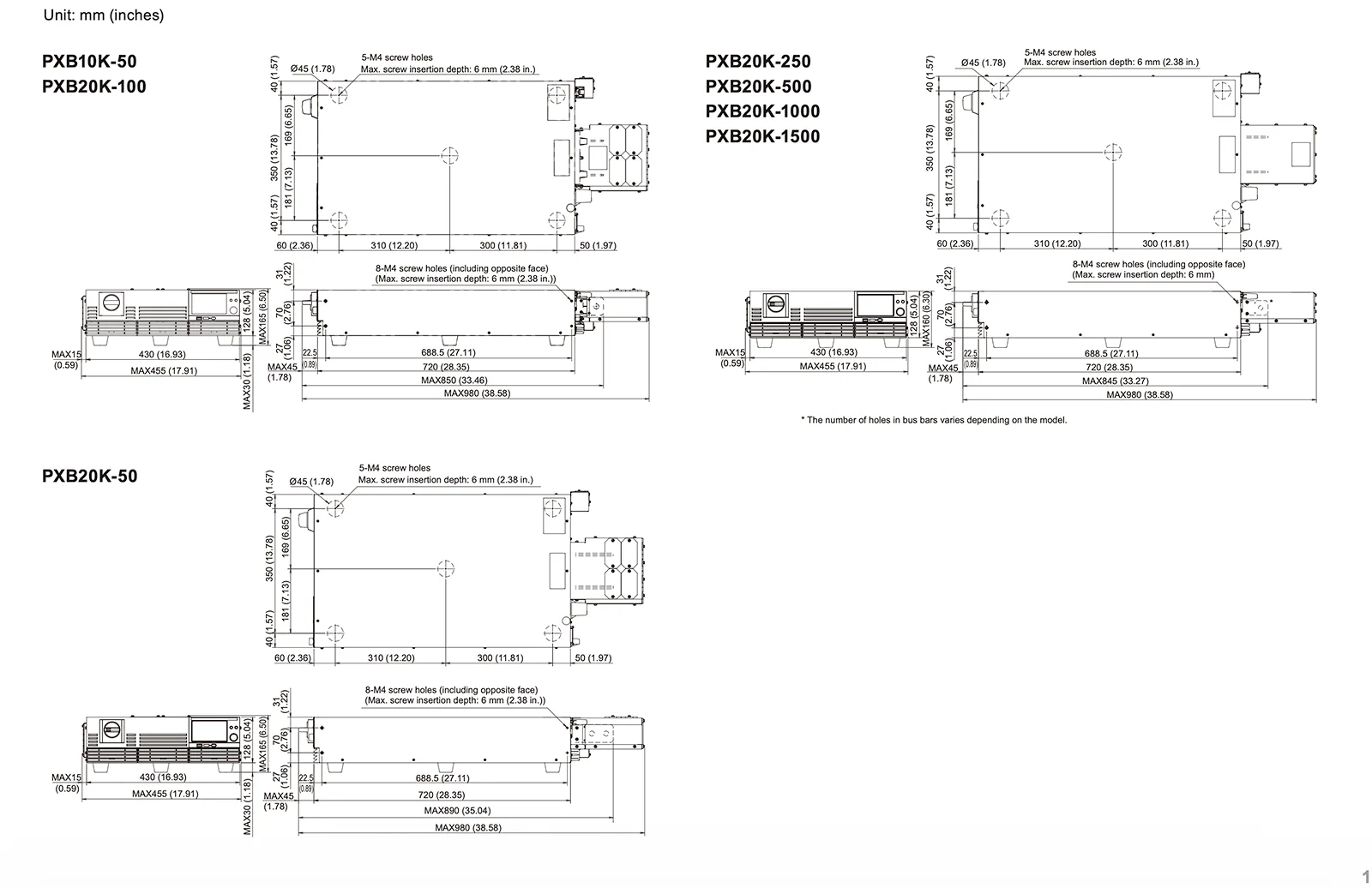

Dimensions | 430 (16.93)W×128 (5.04)H×720 (28.35)Dmm (inches) For details, refer to the dimensional drawing. | |||||
Environmental conditions | Operating environment | Indoor use, overvoltage category II | ||||
Operating temperature | 0 °C to +40 °C (32 °F to +104 °F) | 0 °C to +50 °C (32 °F to +122 °F) | ||||
Operating humidity | 20 % rh to 85% rh (no condensation) | |||||
Storage temperature | −25°C to +60°C (−13 °F to +140 °F) | |||||
Storage humidity | 90 % rh or less (no condensation) | |||||
Altitude | Up to 2000m | |||||
Cooling system | Forced air cooling using fan | |||||
Accessories | Input terminal cover, External control connector kit (1 set), Chassis connection wire, OUTPUT terminal cover, DC OUTPUT terminal screws (1 pair), EXT SYNC connector cover, SENSING connector cover, SENSING connector (2 pc.), Synchronized operation signal cable kit, Safety Information (1 copy), China RoHS sheet (1 sheet), Getting Started Guide (1 copy), Heavy object warning label (1 pc.) | |||||
Withstanding voltage | Between input and GND | 2200 Vac for 1 minute | ||||
Between input and output | ||||||
Between output and GND | 500 Vdc for 1 minute | 1000 Vdc for 1 minute | 1800 Vdc for 1 minute | 1800 Vdc for 1 minute | 3000 Vdc for 1 minute | |
Insulation resistance | Between input and GND | 30 MΩ, 500 Vdc | ||||
Between input and output | 30 MΩ, 500 Vdc | 30 MΩ, 600 Vdc | 30 MΩ, 1000 Vdc | |||
Isolation voltage | ±250 V | ±600 V | ±1000 V | ±1000 V | +2000 V/−1000 V | |
Electromagnetic compatibility (EMC) *1*2 | Complies with the requirements of the following directive and standards. EMC Directive 2014/30/EU EN 61326-1 (Class A*3) | |||||
Safety*1 | Complies with the requirements of the following directive and standards. Low Voltage Directive 2014/35/EU*2 EN 61010-1 (Class I*4, Overvoltage category II, Pollution Degree 2*5) UL 61010-1*6, CAN/CSA -C 22.2 NO.61010-1*6 |
*1 Does not apply to specially ordered or modified products. *2 Only for models with CE marking / UKCA marking on their body. *3 This is a Class A instrument. This product is intended for use in an industrial environment. This product may cause interference if used in residential areas. Such use must be avoided unless the user takes special measures to reduce electromagnetic emissions to prevent interference to the reception of radio and television broadcasts. *4 This is a Class I instrument. Be sure to ground this product’s protective conductor terminal. The safety of this product is guaranteed only when the product is properly grounded. *5 Pollution is addition of foreign matter (solid, liquid or gaseous) that may produce a reduction of dielectric strength or surface resistivity. Pollution Degree 2 assumes that only non-conductive pollution will occur except for an occasional temporary conductivity caused by condensation. *6 Only on models that have cTUVus marking on the panel.
項目 PXB20K-50 PXB20K-500 PXB20K-1000 PXB20K-1500 定格電力 ±20000 W ±20000 W ±20000 W ±20000 W 定格電圧 (ソース) *1 0V ~ 50V 0V ~ 500V 0V ~ 1000V 0V ~ 1500V 動作電圧 (シンク) *2 3V ~ 50V 10V ~ 500V 20V ~ 1000V 30V ~ 1500V 定格電流 *1 ±800 A ±120 A ±60 A ±30 A - *1 最大出力電力によって制限されます。
- *2 定格電流を流すことができる動作電圧
項目 PXB20K-50 PXB20K-500 PXB20K-1000 PXB20K-1500 設定可能最大電圧 52.5V 525V 1050V 1575V 設定確度 ±(0.2 % of setting + 0.1 % of rating) 設定分解能 0.005V 0.05V 0.1V 0.1V 電源変動 *1 ±10mV ±100mV ±200mV ±300mV 負荷変動 *2 ±40mV ±250mV ±500mV ±750mV リモートセンシング 最大補償電圧(往復) 10% of rating 10% of rating 10% of rating 10% of rating 内部抵抗設定上限値 63m Ω 5250m Ω 21000m Ω 63000m Ω レスポンス切り替え FAST、SLOW FAST、SLOW FAST、SLOW FAST、SLOW スルーレート切り替え(TYP) 12.5 V/ms以上 *3 125 V/ms以上 *3 250 V/ms以上 *3 375 V/ms以上 *3 12.5 V/ms 125 V/ms 250 V/ms 375 V/ms 1.25 V/ms 12.5 V/ms 25.0 V/ms 37.5 V/ms 0.125 V/ms 1.25 V/ms 2.50 V/ms 3.75 V/ms 0.0125 V/ms 0.125 V/ms 0.250 V/ms 0.375 V/ms ソース のみ *4 過渡応答 *5 8ms 以下 8ms 以下 10ms 以下 10ms 以下 リップルノイズ*6 p-p *7 250mV 1000mV 1500mV 2500mV rms *8 30mV 250mV 500mV 750mV 立上り時間 *9 全負荷 *10 10ms 10ms 10ms 10ms 無負荷 10ms 10ms 10ms 10ms 立下り時間 *11 全負荷 *10 10ms 10ms 10ms 10ms 無負荷 10ms 10ms 10ms 10ms - *1 200Vac入力では180Vac ~ 252Vac、400Vac入力では342Vac ~ 504Vac です。一定負荷において。
- *2 定格出力電圧で、負荷を無負荷から全負荷(定格出力電力/定格出力電圧)まで変化させたときの変化量です。センシングポイントにて測定。
- *3 ディスプレイにはMAX と表示されます。
- *4 CVモードのレスポンス設定がFASTの場合。
- *5 出力電圧が定格出力電圧の ±(0.1% + 10mV)以内に復帰する時間です。負荷電流の変動値は、設定した出力電圧での最大電流の50% ~ 100%です。
- *6 定格出力電流時。JEITA RC-9131C のプローブを使用し、100:1 プローブを使用して測定した値です。
- *7 測定周波数帯域 10Hz ~ 20MHz
- *8 測定周波数帯域 10Hz ~ 1MHz
- *9 定格出力電圧の10%から90%の変化に対して適用されます。
- *10 純抵抗使用時
- *11 定格出力電圧の90%から10%の変化に対して適用されます。
項目 PXB20K-50 PXB20K-500 PXB20K-1000 PXB20K-1500 設定可能最大ソース電流 +840A +126A +63A +31.5A 設定可能最大シンク電流 -840A -126A -63A -31.5A シームレス設定電流範囲 -840A ~ +840A -126A ~ +126A -63A ~ +63A -31.5A ~ +31.5A 設定確度 ±(0.75% of rating) ±(0.75% of rating) ±(0.75% of rating) ±(0.75% of rating) 設定分解能 0.1A 0.01A 0.005A 0.002A 電源変動 ± 1600mA ± 240mA ± 120mA ± 60mA 負荷変動 ± 1600mA ± 240mA ± 120mA ± 60mA 立上り時間(短絡)(TYP)*1 5ms 5ms 5ms 5ms 立下り時間(短絡)(TYP)*2 5ms 5ms 5ms 5ms 充放電切り替え時間(TYP) 10ms 10ms 10ms 10ms レスポンス切り替え FAST, SLOW FAST, SLOW FAST, SLOW FAST, SLOW スルーレート切り替え(TYP) 200A/ms 以上*3 30A/ms 以上*3 15A/ms 以上*3 7.5A/ms 以上*3 200A/ms 30A/ms 15A/ms 7.5A/ms 20A/ms 3A/ms 1.5A/ms 0.75A/ms 2A/ms 0.3A/ms 0.15A/ms 0.075A/ms 0.2A/ms 0.03A/ms 0.015A/ms 0.0075A/ms - *1 CC モードのレスポンス設定が FAST の場合。定格出力電流の 10% から 90% の変化に対して適用されます。
- *2 CC モードのレスポンス設定が FAST の場合。定格出力電流の 90% から 10% の変化に対して適用されます。
- *3 ディスプレイにはMAX と表示されます。
項目 全機種共通 設定可能最大ソース電力 +21000W 設定可能最大シンク電力 -21000W シームレス設定電力範囲 -21000W ~ +21000W 設定確度 *1 ±(0.5% of power rating + 0.5% of current rating × Vout) 設定分解能 2W - *1 定格電力の 5% 以上から保証されます。定格電力の 5% 未満は TYP 値として保証されます。
項目 全機種共通 公称入力定格 200Vac ~ 240Vac, 50Hz ~ 60Hz 入力電圧範囲 180Vac ~ 252Vac 入力周波数範囲 47Hz ~ 63Hz 入力電流(最大値)*1 80A(180V) 入力電力(最大値)*1 24kVA 突入電流(TYP)*2 130A 力率(TYP)*1 0.96 出力保持時間 10ms 以上 - *1 定格出力電流における定格出力電力のとき。
- *2 POWER スイッチをオンにしたときのピーク電流最大値です。(入力フィルタのコンデンサへのサージ電流は除く)
項目 全機種共通 公称入力定格 380Vac ~ 480Vac, 50Hz ~ 60Hz 入力電圧範囲 342Vac ~ 504Vac 入力周波数範囲 47Hz ~ 63Hz 入力電流(最大値)*1 40A(342V) 入力電力(最大値)*1 24kVA 突入電流(TYP)*2 70A 力率(TYP)*1 0.96 出力保持時間 10ms 以上 - *1 定格出力電流における定格出力電力のとき。
- *2 POWER スイッチをオンにしたときのピーク電流最大値です。(入力フィルタのコンデンサへのサージ電流は除く)
項目 PXB20K-50 PXB20K-500 PXB20K-1000 PXB20K-1500 電圧計 最大表示 ± 60.000V ± 600.00V ± 1200.00V ± 1800.00V 表示確度 ±(0.1% of reading + 0.2% of rating) 電流計 最大表示電流 ± 960.000A ± 168.000A ± 72.000A ± 42.000A 表示確度 ±(0.75 % of rating) 電力計 最大表示電力*1 ± 24.000kW 表示確度 電圧計と電流計の積算値を表示 動作表示 出力オン/オフ 前面パネルの OUTPUT LED が緑色に点灯 動作モード ディスプレイ左上部に下記を表示 CV モード時:CV アイコン CC モード時:CC アイコン CP モード時:CP アイコン リモート(LAN) ディスプレイ左上部に下記を表示 非接続:赤色の LAN アイコン 接続準備中:橙色の LAN アイコン 接続中:緑色の LAN アイコン アラーム 作動した保護機能の内容をディスプレイに表示 SCPI エラー 現在発生しているエラーをディスプレイに表示 POWER オフ 残留電荷警告、ディスプレイが消灯してから再起動をする旨を表示 キーロック キーロックの状態をディスプレイ右上部に表示 センシング センシング有効時にはディスプレイ右上部にセンシングアイコンを表示 並列運転時 スレーブ機にスレーブ機の状態を表示 - *1 10kW未満は単位がWになります。
An alarm not requiring a reboot to be cleared.
項目 PXB20K-50 PXB20K-500 PXB20K-1000 PXB20K-1500 OVP (過電圧保護) 保護動作 出力オフ、ディスプレイに「OVP」表示。スレーブ機では「SLV OVP」表示。 設定範囲 5V 〜 55V 50V 〜 550V 100V 〜 1100V 150V 〜 1650V 設定確度 ±(0.1% of setting + 0.2% of rating) OCP (過電流保護) 保護動作 出力オフ、ディスプレイに「OCP」表示。スレーブ機では「SLV OCP」表示。 設定範囲(ソース) 80A 〜 880A 12A 〜 132A 6A 〜 66A 3A 〜 33A 設定範囲(シンク) -80A 〜 -880A -12A 〜 -132A -6A 〜 -66A -3A 〜 -33A 設定確度 ±(0.75 % of rating) OPP (過電力保護) 保護動作 出力オフ、ディスプレイに「OPP」表示。スレーブ機では「SLV OPP」表示。 設定範囲(ソース) 2kW 〜 24kW 設定範囲(シンク) -2kW 〜 -24kW 設定確度 ±(1.0% of power rating +1.0% of current rating × Vout) UVP (低電圧保護) 保護動作 出力オフ、ディスプレイに「UVP」表示。スレーブ機では「SLV UVP」表示。 設定範囲 0V 〜 50V 0V 〜 500V 0V 〜 1000V 0V 〜 1500V 選択可能 Enable / Disable 設定確度 ±(0.1% of setting + 0.2% of rating) Watchdog Alarm (通信異常保護) 保護動作 出力オフ、ディスプレイに「WDOG」表示 設定範囲 1s 〜 3600s 選択可能 Enable / Disable External Alarm LOW Level (外部入力アラーム検出) 保護動作 出力オフ、ディスプレイに「EXT LOW」表示 An alarm requiring a reboot to be cleared.
項目 全機種共通 Reverse Alarm (逆接続検出保護) 保護動作 出力オフ、ディスプレイに「REVE」表示。 OHP (過熱保護) 保護動作 出力オフ、ディスプレイに「OHP」表示。スレーブ機では「SLV OHP」表示。 Line OVP (系統過電圧保護) 保護動作 出力オフ、ディスプレイに「LOVP」表示。スレーブ機では「SLV LOVP」表示。 設定範囲 入力電圧定格 200Vac モデル:200V 〜 258V
入力電圧定格 400Vac モデル:380V 〜 516VLine UVP (糸統低電圧保護) 保護動作 出力オフ、ディスプレイに「LUVP」表示。スレーブ機では「SLV LUVP」表示。 設定範囲 入力電圧定格 200Vac モデル:175V 以下
入力電圧定格 400Vac モデル:333V 以下Line Frequency Error (系統周波数異常保護) 保護動作 出力オフ、ディスプレイに「FREQ」表示。スレーブ機では「SLV FREQ」表示。 検出値 42Hz / 68Hz External Alarm HIGH Level (外部入力アラーム検出) 保護動作 出力オフ、ディスプレイに「EXT HIGH」表示 SENS Alarm (センシング誤接続検出) 保護動作 出力オフ、ディスプレイに「SENS」表示 設定値 Enable / Disable Parallel Communication Error (並列運転通信異常検出) 保護動作 出力オフ、ディスプレイに「PARA COM」表示 Para Other Slave Alarm (並列運転 Slave 異常発生) 保護動作 出力オフ、ディスプレイに「SLV OTHR」表示 Incorrect Slave Alarm (対象外機器接続) 保護動作 出力オフ、ディスプレイに「SLV INC」表示 Too many connections (過剰並列接続) 保護動作 出力オフ、ディスプレイに「TOO MANY」表示 Hardware ERR *1 (ハードウェアエラー) 保護動作 出力オフ、ディスプレイに「ERRH」表示。スレーブ機では「SLV ERRH」表示。 Software ERR *2 (ソフトウェアエラー) 保護動作 出力オフ、ディスプレイに「ERRS」表示。スレーブ機では「SLV ERRS」表示。 - *1 ハードウェアに関連する異常が検出され、内部ユニットが緊急停止した場合に発生します。
- *2 ソフトウェアに関連する異常が検出され、内部ユニットが緊急停止した場合に発生します。
項目 全機種共通 入力部 入力点数 2点 外部出力電圧制御 (CV) 設定範囲 定格出力電圧の 0% ~ +100% 入力電圧範囲 0V 〜 +5V または 0V 〜 +10V(選択可) 確度 ±(1% of rating) 外部電流制御(CC)
外部電力制御(CP) *1設定範囲 定格電流、定格電力の -100% 〜 +100% 入力電圧範囲 -5V 〜 +5V または -10V 〜 +10V(選択可) 確度 ±(1% of rating) 出力部 出力点数 2点 電圧モニタ(VMON) モニタ範囲 定格出力電圧の 0% 〜 +100% 出力電圧範囲 0V 〜 +5V または 0V 〜 +10V(選択可) 確度 1% of rating 電流モニタ(IMON) モニタ範囲 定格出力電流の -100% 〜 +100% 出力電圧範囲 -5V 〜 +5V または -10V 〜 +10V(選択可) 確度 ±(1% of rating) - *1 電流制御、電力制御のどちらかを選択
項目 全機種共通 固定入力点数 1点(極性切り替え可能) 選択入力点数 5点(極性切り替え可能) 入力形式 フォトカプラ絶縁入力(電流シンク/ソース出力両対応) 固定機能 ALARM IN HIGH アラームの発生 選択機能 OFF 端子を使用しない OUTPUT ON 出力をオンにする OUTPUT OFF 出力をオフにする OUTPUT CTRL 出力をオン/オフする L ALARM IN LOW アラームの発生 ALARM CLR LOW アラームの解除 SEQ RUN シーケンスの開始/終了 SEQ PAUSE シーケンスの停止/再開 INTEG CTRL 積算計測の開始/停止 INTEG RESET 積算計測データをリセット ACQUIRE TRIG 計測用のトリガを入力 SEQ TRIG IN シーケンス用のトリガを入力 MEM1 RECALL プリセットメモリー1を呼び出す MEM2 RECALL プリセットメモリー2を呼び出す 外部回路電源範囲 12V 〜 24Vdc(± 10%) 項目 全機種共通 出力点数 6 点(極性切り替え可能) 出力形式 半導体リレー出力 選択機能 OFF 端子を使用しない OUTPUT ON 出力オン時に信号を出力 POWER ON 電源がオンで出力できるとき信号を出力 H ALARM OUT HIGH アラームが発生したとき信号を出力 L ALARM OUT LOW アラームが発生したとき信号を出力 CC STATUS CC モードで動作したときに信号を出力 CV STATUS CV モードで動作したときに信号を出力 SEQ TRIG OUT シーケンス用のトリガを出力 SEQ STATUS シーケンス実行時に信号を出力 EXT DIN BUSY デジタル入力が BUSY 状態のとき信号を出力 MEM1 ACT TIME プリセットメモリー 1 に設定が完了したとき信号を出力 MEM2 ACT TIME プリセットメモリー 2 に設定が完了したとき信号を出力 RELAY DRIVE DC OUTPUT 端子の出力オン/オフと連動し、時間差約 100 ms の信号を出力。Ch.6 にのみ設定可能。 項目 全機種共通 共通仕様 ソフトウェアプロトコル IEEE std. 488.2-1992 コマンド言語 SCPI Specification 1999.0 仕様に準拠 RS232C ハードウェア D-SUB 9 ピンコネクタ
ボーレート:1200 / 2400 / 9600 / 19200 / 38400 / 57600 / 115200 bps
データ長:8bit、ストップビット:1bit、パリティビット:なし
フロー制御:なし/ CTS-RTSプログラムメッセージターミネータ 受信時 LF、送信時 LF USB
(デバイス)ハードウェア 標準 B タイプソケット
USB2.0 仕様に準拠、通信速度 480 Mbps(High Speed)プログラムメッセージターミネータ 受信時:LF or EOM、送信時:LF + EOM デバイスクラス USBTMC-USB488 デバイスクラス仕様に準拠 USB
(ホスト)ハードウェア 標準 A タイプソケット
USB2.0 仕様に準拠、通信速度 480 Mbps(High Speed)LAN ハードウェア IEEE 802.3 100BASE-TX/10BASE-T Ethernet 通信プロトコル SCPI-RAW、SCPI-Telnet、HiSLIP、VXI-11 プログラムメッセージターミネータ SCPI-RAW:受信時 LF 、送信時 LF
HiSLIP: 受信時 LF または END、送信時 LF + END対応規格 LXI Version 1.5 Specifications 2016 項目 全機種共通 同期機能 (クロック同期) 概要 EXT SYNC コネクタを使用してほかの PXB シリーズと接続したあと、 内部クロックでの同期を確立するとディスプレイに SYNC アイコンが表示される。 シーケンス同期 プログラムの開始、ステップの開始を同期 測定同期 測定の開始を同期 出力同期 出力オン/オフを同期 シーケンス機能 動作モード CVモード、CCモード、CPモード 最大ブログラム数 30 最大ステップ数 10000 ステップ実行時間 1ms 〜 3600000s ループ回数 1 ~ 100000、または無限 サイン機能 動作モード CVモード、CCモード 周波数設定範囲*1 1Hz 〜 1000Hz 周波数設定 分解能 1Hz 〜 10Hz 0.2Hz 12Hz ~ 100Hz 2Hz 120Hz ~ 1000Hz 20Hz CV 最大設定値 定格電圧の105 %まで設定可能 最大オフセット設定 定格電圧の105 %まで設定可能 CC 最大設定値 定格電流の210 %まで設定可能 最大オフセット設定 定格電流の± 105% まで設定可能 バルス機能 動作モード CVモード、CCモード 周波数設定範囲*1 1Hz 〜 1000Hz 周波数設定 分解能 1Hz 〜 10Hz 0.01Hz 12Hz ~ 100Hz 0.1Hz 120Hz ~ 1000Hz 1Hz CV Highレベル定格電流 定格電圧の105%まで設定可能 Lowレベル定格電流 定格電圧の105%まで設定可能 CC Highレベル定格電流 定格電流の105%まで設定可能 Lowレベル定格電流 定格電流の105%まで設定可能 デューティ比 2.5% 〜 97.5% 測定トリガ 測定開始条件(トリガソース) 測定開始の条件を選択可能 (ディスプレイから入力時、 リモートコントロールでコマンド入力時、外部コントロールで信号を入力時、同期操作時) 測定回数 1 ~ 65536 測定遅延時間 設定範囲 0s 〜 100s 設定分解能 0.1ms 測定間隔 設定範囲 0.1ms 〜 3600s 設定分解能 0.1ms 測定時間 設定範囲 0.1ms 〜 1s 設定分解能 0.1ms I-V 特性機能 動作モード CVモード、CCモード 設定項目数 3点~ 100点(点と点との間は直線で補間) プリセットメモリー メモリー数 20 保存項目 CV、CC、CP 各モードでの設定値、保護機能設定値、IR 設定値 セットアップメモリー メモリー数 21 保存項目 積算値を記録する条件、積算値をリセットする条件、プリセットメモリーを呼び出すときの確認動作
DC OUTPUT 端子からの出力オン/オフ、測定 1 回あたりの記録時間、測定値の記録回数
優先動作モード、出力オフ時のインピーダンス設定、負荷設定値(電圧値/電流値/電力値/抵抗値)
出力モード、I-V 特性、保護機能(過電流保護/過電圧保護/低電圧保護/過電力保護/系統過電圧保護)
パルス機能の設定値、サイン機能の設定値、レスポンス、スルーレート
測定トリガ適用の遅延時間、測定間隔、測定のトリガソースキーロック Level1 出力オン/オフとプリセットメモリーの呼び出しが可能 Level2 出力オン/オフが可能 Level3 出力オフが可能 並列運転台数 最大10台 - *1 PXBシリーズの出力ゲイン特性により、Frequencyを100Hz以上に設定すると出力が減衰します。
項目 PXB20K-50 PXB20K-500 PXB20K-1000 PXB20K-1500 質量 約41kg 約38kg 約37kg 約37kg 寸法 430(455)W × 128(160)H × 720(1000)Dmm(最大寸) 詳細は外形寸法図をご参照ください。 環境条件 動作環境 屋内使用、過電圧カテゴリII 動作温度 0°C〜 +40°C 0°C〜 +50°C 動作湿度 20%rh 〜 85%rh (結露なし) 保存温度 -25°C〜 +60°C 保存湿度 90%rh 以下(結露なし) 高度 2000mまで 冷却方式 ファンによる強制空冷 付属品 INPUT 端子カバー、外部コントロール用コネクタキット(1 組)、シャシ接続線、
OUTPUT 端子カバー、DC OUTPUT 端子用ねじ(1 組)、EXT SYNC コネクタカバー、SENSING 端子カバー、
SENSING コネクタ(2 個)、同期運転信号ケーブルキット、安全のために(1 冊)、China RoHS シート(1 枚)、
CD-ROM(1 枚)、セットアップガイド(1 冊)、クイックリファレンス(和文 1 枚、英文 1 枚)、重量物警告シール(1 枚)耐電圧 入力 - GND間 2200Vac、1 分間 入力 - 出力間 2200Vac、1 分間 出力 - GND間 500Vdc、1 分間 1800Vdc、1 分間 1800Vdc、1 分間 3000Vdc、1 分間 絶縁抵抗 入力 - GND間 30M Ω、500Vdc 入力 - 出力間 30M Ω、500Vdc 30M Ω、1000Vdc 対接地電圧 ± 250V ± 1000V ± 1000V +2000V / -1000V 電磁適合性(EMC) *1 *2 以下の指令および規格の要求事項に適合
EMC 指令 2014/30/EU
EN 61326-1(Class A*3)安全性*1 以下の指令および規格の要求事項に適合
低電圧指令 2014/35/EU*2
EN 61010-1(Class I*4, 過電圧カテゴリII , 汚染度 2*5)- *1 特注品、改造品には適用されません。
- *2 本体に CE マーキング/ UKCA マーキングの表示のあるモデルに対してのみ。
- *3 本製品は Class A 機器です。工業環境での使用が意図されています。本製品を住宅地区で使用すると干渉の原因となることがあります。
そのような場合には、ラジオやテレビ放送の受信干渉を防ぐために、ユーザによる電磁放射を減少させる特別な措置が必要となることがあります。 - *4 本製品は Class I 機器です。本製品の保護導体端子を必ず接地してください。正しく接地されていない場合、安全性は保障されません。
- *5 汚染とは、絶縁耐力または表面抵抗率の低下を引き起こし得る異物(固体、液体、または気体)が付着した状態です。
汚染度 2 は、非導電性の汚染だけが存在し、ときどき、結露によって一時的に導電性になり得る状態を想定しています。
Unless specified otherwise, the specifications are for the following settings and conditions.
- The product is warmed up for at least 30 minutes.
The used terminology is as follows:
- TYP: These are typical values that are representative of situations where the product operates in an environment with an ambient temperature of 23°C (73.4°F).
- setting: Indicates a set value.
- reading: Indicates a readout value.
- rating: Indicates a rated value.
- Open: Indicates equivalence to the state in which the DC OUTPUT terminals are opened.
- +, −: + sign indicates source, − sign indicates sink.
- Vout: Indicates output voltage.
Line-up
Downloads
The electric drive changes the power from the engine to the motor, which converts energy in both directions, so the electrical components (inverter, battery, etc.) that drive the motor are subject to bi-directional current flow.
In the evaluation of these electrical components, the market demanded a power supply that could handle bidirectional current, and the power band varied from 10 kW to several 100 kW, depending on the type of EV, so there was a wide range of power needs. At that time, Kikusui did not have a bi-directional DC power supply or a power supply that could handle several hundred kW, and we decided to develop a bi-directional DC power supply that could sufficiently meet market demands, considering that market needs would increase further if not only cars but all forms of transportation became electrically powered.
