DC Power Supply
DC POWER SUPPLY
About 300 models from small to large capacity! Top brand with high performance and reliability
KIKUSUI offers a wide range of compact and versatile switching and dropper-type power supplies that are essential for low-noise testing, in addition to a variety of voltage and current ranges, from small to large capacitance. All models are capable of arbitrary and variable voltage and current settings, making them suitable for a variety of applications from simple stabilization to integration, testing and evaluation.
Bidirectional DC power supply
A better power supply test environment in an increasingly electric and electronic world. Bidirectional power supplies that can flexibly respond to various requirements related to advanced technology!
- Bidirectional output
- Maximum voltage 1500V
- 3U size unit
Bidirectional High-Capacity DC Power Supply (CV/CC)
- Maximum 20 kW output in a 3U size
- A single unit handles both power and regeneration
- Supports a maximum voltage of 1500 V
- Select a model with an input voltage from 200 Vac (3-phase) or 400 Vac (3-phase)
- Continuous operation at rated power at ambient temperature of 50°C (Excluding some models)
Switching
小型軽量を特長とする直流電源。出力容量当たりの実装効率に優れているので、ラックへの組み込みに適しています。
- 3U size unit
- Maximum 20 kW output
- Wide-Range
High-Capacity Wide-Range DC Power Supply
- Maximum 20 kW output in a 3U size
- Supports a maximum voltage of 1500 V
- Continuous full-load operation at ambient temperatures as high as 50°C
- Bleeder ON/OFF function
- Output ON/OFF delay function
- One-control parallel operation function (up to 25 units of the same model)
- Compact size and high performance
- Variable internal resistance function
- Wide-Range
Compact, wide-range DC power supply
- Sequence function (supports triggered synchronization)
- LAN (LXI compliant)/USB/RS232C as standard interface
- A virtual multi-channel bus (VMCB) function makes multi- channel operation more efficient
- All models are equipped with front-facing output terminals as standard (maximum 10 A)
- Supporting universal input voltage (85 V to 265 V)
- Output ON/OFF delay function
- A 19-inch rack width with a thin shape
- Output power rating (3 times)
1U Wide Range Programmable DC Power Supply
- A wide range of voltage and current settings can be combined within its output power rating (3times)
- A thin and lightweight design with a 1U height for increased rack-mounting efficiency
- Rated output power : 750W / 1500W, Rated output power : 30V / 80V / 230V / 650V
- Supporting universal input voltage (85 V to 265 V)
- PFC circuit of 0.99 (with 100 V) or 0.97 (with 200 V) at full load *TYP value
- Palm-sized
- 2U bench-top type
Compact Variable-switching Regulated DC Power Supply
- 2U bench-top type
- Palm-sized, portable power supply
- Output power : 200W / 400W / 600W / 800W 4models
- Output voltage: 10V to 650V (8models)
- 64 models total (LAN model included)
- High-capacity
- A soft switching system
- 力率改善回路標準搭載
High-efficiency, High-capacity Switching DC Power Supply (CV/CC)
- Output capacity of 8kW from a unit of standard rack width(430mm), a height of about 130mm(3U), and a depth of about 550mm
- Equipped with a power factor correction circuit (power factor 0.95) to reduce power consumption.
- Continuous full-load operation at ambient temperatures as high as 50°C
- High noise resistance.
- 4 kW type can operate even with single-phase 200 volt input (However, current is limited to about 75 % of rated value.)
- Conversion efficiency up to 88%
- High power up to 2400 W
Low-profile variable switching power supplies
- High efficiency/high power factor (active filter method)
- Space-saving front air intake fan
- High resolution: 16-bit A/D and D/A converter built-in
- External analogue control possible
- Master-slave parallel operation (up to 4 units) possible
- For high capacity and high power applications
- For smart grid demonstration tests.
Large-capacity regulated DC power supply
- Automatic transition type regulated DC power supply
- Voltage: 60 V to 600 V, current: 200 A to 2000 A.
- Ideal for high power applications such as solar, wind, fuel cells and other smart grid demonstration tests.
Linear
It features low ripple noise. Due to the use of a transformer, they are larger in volume and heavier than switching-based products when compared with the same capacity.
- High resolution DA/AD converter employed.
- Low temperature drift
- Low noise and ripple
High-reliability regulated DC power supplies
- Output capacity: 175 W/350 W/700 W; output voltage: 16 V series/35 V series.
- Low noise, low ripple and highly stable power supply with series regulated system
- Versatile basic power supply
- Low temperature drift, fast transient response
- Series and parallel operation max. 3 units (same model)
- Communication Interface
- Basic DC power supplies superior
- Low temperature drift
- Low ripple noise voltage
High-Reliability DC Power Supplies
- Low temperature drift
- Quick transient response
- Low ripple noise voltage
- Various safety functions
- Voltage and current setting knobs are 10-turn type.
- New Basic Power Supply
- High Performance and High Reliability Power Supplies
Variable Regulated DC Power Supply (CV/CC)
- Use large LED monitor with high visibility for 4 digits display
- Output and Set Switch
- Putting together of the mode setting switches
- Control Terminals
- OCP (Over Current Protection circuit)
- Output monitoring
- ※Discontinued / Limited Stock
- Compact & Low-noise
- Max.500V Output Rating

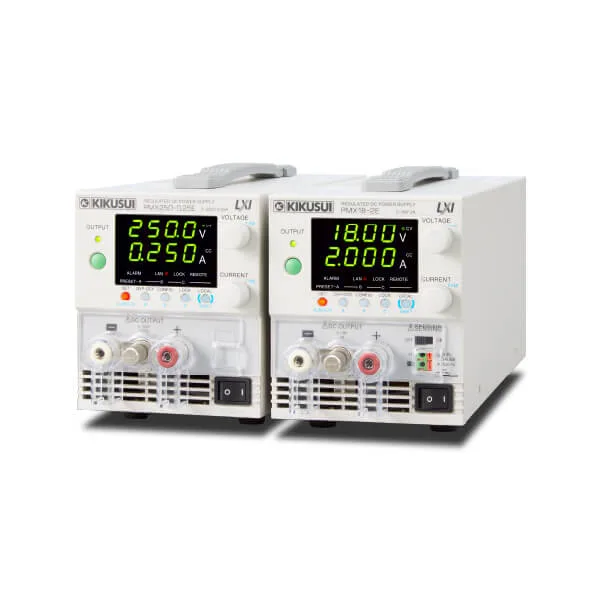

Compact DC Power Supply
- Series regulator system with excellent noise performance
- High setting resolution – Voltage: 1 mV, Current: 0.1 mA (PMX18-2A)
- Wide range of output variations (9 models are available)
- External analog remote control
- Monitoring and status signal output
- Remote sensing function (18V, 35V models)
Multi-Output Power Supply (Linear)
Series dropper (series regulator) type power supplies with two to four output terminals, where each output can be independently or simultaneously variable. These products are useful for loads requiring multiple power supplies, such as operational amplifiers.
- Multi-Output DC Power Supply
- Compact
Compact Multi-Output DC Power Supply (CV/CC)
- Each output is isolated
- High setting resolution (Voltage: 1 mV, Current: 0.1 mA)
- ON/OFF delay of each output
- Simple series/parallel connection between channels (CH1 & CH2)
- Tracking control in all channels
- Maximum output rating : +32V 5A / Maximum capacity : 222W
Programmable Power Supply
Series dropper (series regulator) type power supplies. Highly functional power supplies with fast response performance, set-up functions and output sequencing functions.
- A bipolar type
- The unit equips a signal generator function
- Synchronized operation function
- Parallel operation function
Intelligent Bipolar Power Supply
- Four types of max. output power 400W, ±20V, ±40V, ±60V, ±80V
- Waveform Generation
- Sequence function
- Parallel operation function
- High-speed response 100 kHz (CV)
- Peak Current 6x Rating (±120 Apk CV) : PBZ20-20A
Precision DC Source
- A low-noise / highly stable
- 3-channel output
Precision DC Source
- 3-channel voltage standard
- Voltage setting resolution of 100µV (allows a different voltage to be set independently for each channel)
- Current reading resolution of 0.1µA* (in standard mode) * 1µA resolution for the 200 mA range
- High-resolution meter with an easy-to-view, 6-digit current display (no external ammeter needed)
- GPIB / RS-232C standard equipment
- ※Discontinued / Limited Stock
