Impedance measurement function(factory option)
PLZ-5WZ Series
PLZ-5WZ
399,000円 – 735,000円
- The all-new PLZ-5WZ series allows for easily configured impedance measurements with dedicated impedance measurement software.
- Impedance measurements are made during discharge, allowing for real-time measurement of impedance values from the DUT.
- Capable of R, jX, θ, and Z measurements.
- Measures AC frequency from 100 Hz – 10 kHz (seven fixed settings) and signal levels can be set arbitrarily.
- Equipped with a voltage slope correction function that minimizes the effect of voltage slope during during battery discharge tests.
- Zero adjustment function allows for increased accuracy during critical impedance measurements.
- Measurement results and graphical information can be copied directly from the application software to programs like Excel.
| Image | SKU | Rated operating voltage [V] | Rating current [A] | Rating Power [W] | 標準価格 | WEBかんたんお見積り |
|---|---|---|---|---|---|---|
 | PLZ205WZ | 0.25 to 150 | 40 | 200 | 399,000円 （税込：438,900円） | |
 | PLZ405WZ | 0.25 to 150 | 80 | 400 | 483,000円 （税込：531,300円） | |
 | PLZ1205WZ | 0.25 to 150 | 240 | 1200 | 735,000円 （税込：808,500円） |
Line-up
| Image | SKU | Rated operating voltage [V] | Rating current [A] | Rating Power [W] | 標準価格 | WEBかんたんお見積り |
|---|---|---|---|---|---|---|
| PLZ205WZ | 0.25 to 150 | 40 | 200 | 399,000円 （税込：438,900円） | |
| PLZ405WZ | 0.25 to 150 | 80 | 400 | 483,000円 （税込：531,300円） | |
| PLZ1205WZ | 0.25 to 150 | 240 | 1200 | 735,000円 （税込：808,500円） |
Specifications
Except for the impedance measurement function, the specifications are as per PLZ-5W series product specifications; please check with PLZ-5W Series.
Options
GPIB Converter
Parallel Operation Signal Cable Kit
Rack Adapter/Bracket Option
PLZ205W、PLZ405W
PLZ1205W
*When using a blank panel for rack adapter, use KBP3-2.
Sequence creation software “Wavy”
Software

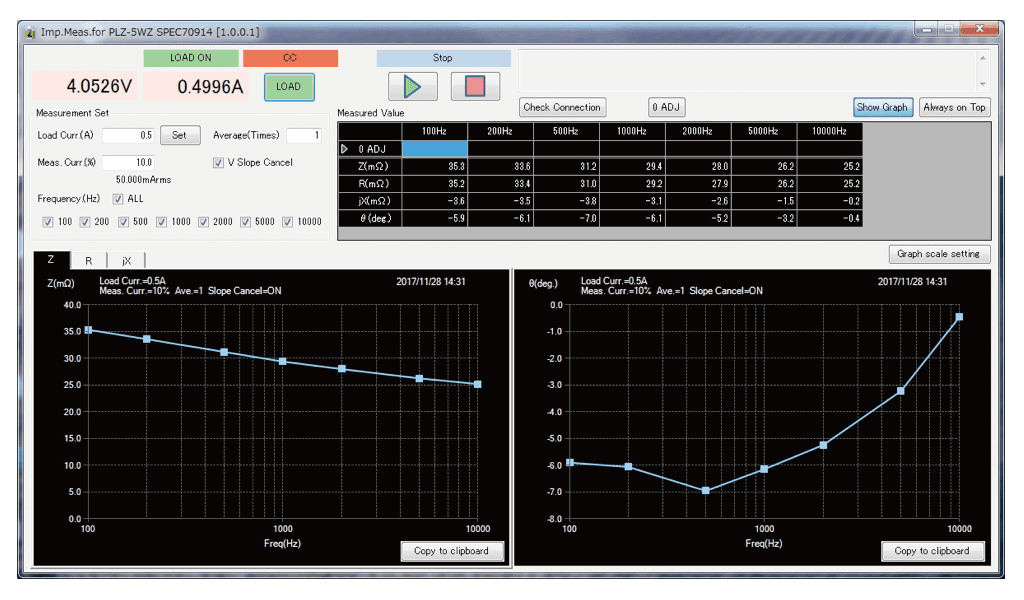

Application software Imp. Meas. for PLZ-5WZ (accessory)

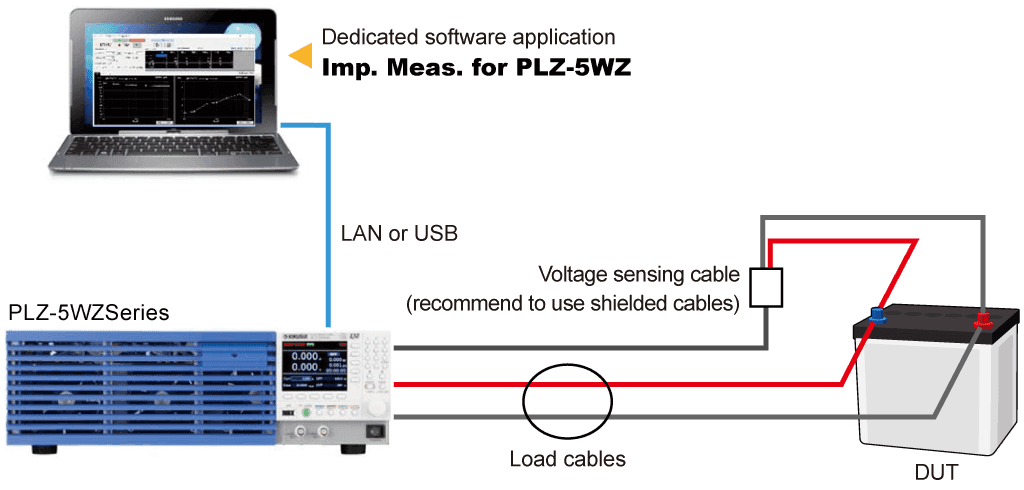

Example of system construction
Impedance measurement function has been added as a factory option for the electronic load PLZ-5W series.Impedance measurement can be easily performed without creating a program by simply using the attached application software Imp. Meas. for PLZ-5WZ.
Measurement function
Measurement function
| Item | Description | Conditions & remarks |
|---|---|---|
| Measurement AC frequency | 100 Hz, 200 Hz, 500 Hz, 1 kHz, 2 kHz, 5 kHz, 10 kHz | Seven fixed settings |

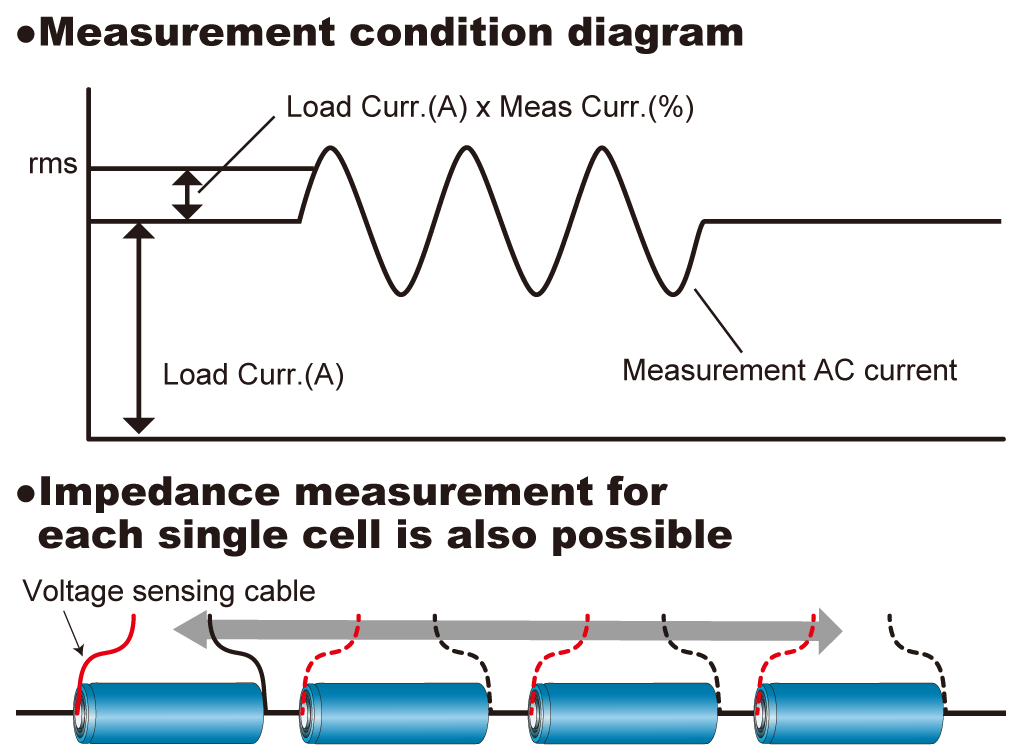

| Measurement AC current (Meas Curr.) | 0.1 % to 10 % of the DC load current (load curr.) | Set as a percentage |
| Measurement time | 50 ms to 5 s | Depends on the measurement AC frequency. |
| Measurement items | R, X, |Z|, θ | θ is calculated from R and X. |
| Measurement average | Averages 1 to 16 measured values. | Function available when using application |
| Zero adjustment (0 ADJ) | Zero adjustment on the DUT voltage sensing end | Function available when using application |
| V Slope Cancel | Eliminates the effect that the slope of the DUT voltage caused by discharge has on measurements | Complete elimination is not possible if the slope is nonlinear |
| Measurement method | 2-phase lock-in amplifier method | Based on digital computation. |
| Operating environment | Windows7/Windows10 (32 bit/64 bit) |
Measurement accuracy
[Conditions] *Ambient temperature: 18°C to 28°C * DUT: Reference resistance *Bias power supply: 12 V 54 Ah lead battery *Measurement AC current: Depends on DUT impedance (refer to the following table).
Voltage range at L range (15 V)
| Percentage of ±Z readout value | Measurement AC frequency | |||
|---|---|---|---|---|
| DUT impedance | Measurement AC current | 100 Hz, 200 Hz, 500 Hz | 1 kHz, 2 kHz | 5 kHz, 10 kHz |
| 1.0 mΩ to 9.9 mΩ | 500 mArms or more | ±（5% of reading+0.5mΩ） | ±（5%of reading+0.5mΩ） | – |
| 10.0 mΩ to 99.9 mΩ | 250 mArms or more | ±（5% of reading+0.5mΩ） | ±（5%of reading+0.5mΩ） | – |
| 100.0 mΩ to 1000.0 mΩ | 150 mArms or more | ±（2% of reading+0.5mΩ） | ±（3%of reading+0.5mΩ） | – |
Voltage range at H range (150 V)
| Percentage of ±Z readout value | Measurement AC frequency | |||
|---|---|---|---|---|
| DUT impedance | Measurement AC current | 100 Hz, 200 Hz, 500 Hz | 1 kHz, 2 kHz | 5 kHz, 10 kHz |
| 1.0 mΩ to 9.9 mΩ | 2 Arms or more | ±（5% of reading+0.5mΩ） | ±（5%of reading+0.5mΩ） | – |
| 10.0 mΩ to 99.9 mΩ | 500 mArms or more | ±（5% of reading+0.5mΩ） | ±（5%of reading+0.5mΩ） | – |
| 100.0 mΩ to 1000.0 mΩ | 250 mArms or more | ±（3% of reading+0.5mΩ） | ±（4%of reading+0.5mΩ） | – |
*Accuracy of measurements outside the measurement range, L range current, and [-] shaded portion is not guaranteed.*θ is calculated from R and X by the application software. *Specifications not listed above are in accordance with PLZ-5W series product specifications.
