SD006-KHA
SD006-KHA
200,000円 （税込：220,000円）
- Harmonics Analyzing Suite Ver 2.6.0 (for KHA3000 only)
- The “SD006-KHA, Harmonics Analyzing Suite” can remotely control the “KHA3000, Harmonic/Flicker Analyzer” from the PC, and acquire the test result file of the harmonic current test. And it also can analyze the test result file. The LIN1020JF/3020JF and PCR-LE/LE2/LA/L can be also controlled remotely.
Overview
Application software for KHA series
This dedicated application software consists of 3 programs. Using this software, you can set test conditions and control the execution of tests. You can also control the AC power supply (PCR-LE) used for tests. Furthermore, you can print the harmonic spectrum, and current and voltage waveforms on your reports.
Program configuration of SD006-KHA Harmonics Analyzing Suite and SD005-KHA Harmonics Explorer
| SD006-KHA | SD005-KHA | Specifications |
|---|---|---|
| HarmoCapture 3 | HarmoCapture | Offers functions to set conditions for harmonic current tests and voltage fluctuation tests, read test conditions, execute tests and save and display test result data.
|
| HA File Analyzer 3 | HA File Analyzer | Offers functions to analyze harmonic test data.
|
| Vf File Analyzer 3 | Vf File Analyzer | Offers functions to analyze voltage fluctuation test data.
|
HarmoCapture 3 / HarmoCapture

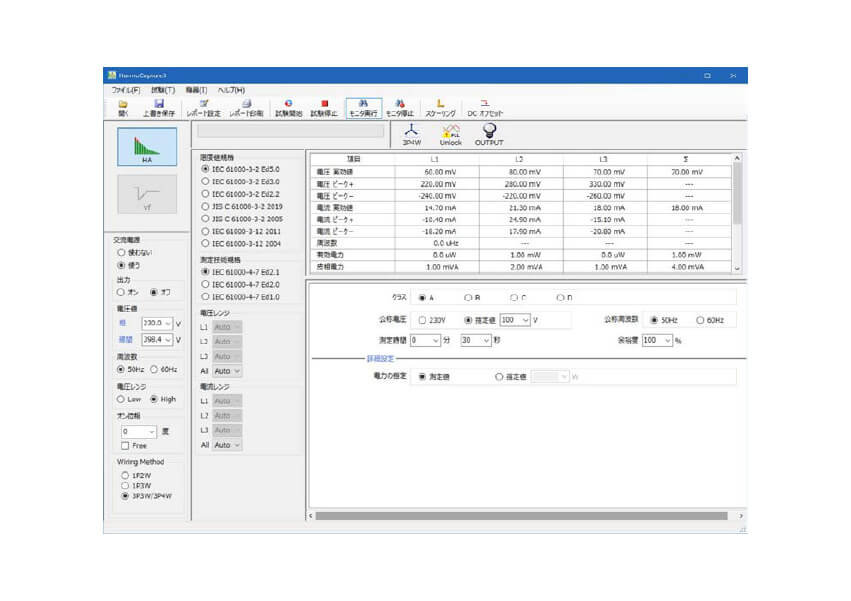

HarmoCapture 3 / HarmoCapture lets you control KHA Series remotely from a PC in the same way you control it from the operation panel of the device. The program will start as appropriate for the test mode.
Test condition setting items for harmonic current tests.
Test condition setting items for flicker and voltage fluctuation tests.
| Common Item Settings | When Pst Auto is selected | When manual switching is selected | IEC61000-3-11 Ed1.0 |
|---|---|---|---|
| Setting the wiring method Limit Standard Measurement Technology Standards Voltage range Current range Designation of input terminal | Nominal Voltage Nominal frequency Pst measurement time Number of Pst measurements dmax limit Flicker Margin d Margin Judgment limit value | Nominal Voltage Nominal frequency d Measurement time d測定回数 dmax limit d Margin Judgment limit value | Nominal Voltage Nominal frequency Pst measurement time Number of Pst measurements Test impedance Judgment limit value |
HA File Analyzer 3 / HA File Analyzer
HA File Analyzer 3 / HA File Analyzer are application programs that allows you to analyze the data in the test result files (xxx.hr3 / xxx.hr) saved by HarmoCapture 3 / HarmoCapture. It is not necessary to connect with KHA Series to run, so, you can analyze test data anywhere you want.
Composition of the screen
| Results List Pane | Lists the test results file for the harmonic current test. |
|---|---|
| Graph and Data Pane | Displays a graph of test results file for the harmonic current test. |
Results of repeatability checks
Displays the decision results between the files in the result list, as well as the decision results for each order. Files can be compared from 2 to a maximum of 15 files.
Save test result files as text
Test result files can be used in Microsoft Excel or as text for use in other application software.
Report printing of test result files
Reports (PDF) can be printed from test result files saved by the KHA series or HarmoCapture 3/HarmoCapture.
Vf File Analyzer 3 / Vf File Analyzer
VF File Analyzer 3 / VF File Analyzer are application programs that allows you to analyze the data in the test result files (xxx.vr3 / xxx.vr) saved by HarmoCapture 3 / HarmoCapture. It is not necessary to connect with KHA Series to run, so, you can analyze test data anywhere you want.
Composition of the screen
| Total Measurement Time Waveform Display Pane | Displays the voltage fluctuation waveform of each measurement time. Each measurement time is connected together along the time axis. The vertical axis represents the voltage ratio with respect to the nominal voltage in terms of a percentage. The horizontal axis represents the elapsed time in unit of seconds. Test data A and B are displayed simultaneously. |
|---|---|
| Test Results / Set Value List Pane | Displays the test results list and test conditions. The judgment result of each segment and the final judgment over all the measurement times are displayed. You can click the tab to switch between the test results list and test conditions data displays. Select test data A or B to be displayed. |
| CPF Waveform Display Pane | Displays a graph of the CPF (cumulative probability function). You can view the probability distribution of voltage fluctuations. Select test data A or B to be displayed. |
List of test results when manual switching is used.
The ‘voltage change caused by manual opening and closing’ specified in IEC 61000-3-3 A1 (2001) Annex B is determined by taking the arithmetic mean of 22 measurements, excluding the largest and smallest of the measurements obtained from a maximum of 24 measurements.
Save test result files as text
Test result files can be saved as text for use in Microsoft Excel or for use in other application software.
Report printing of test result files
Reports (PDF) can be printed from test result files saved by the KHA series or HarmoCapture 3/HarmoCapture.
Operating environment
- Personal computer with Microsoft Windows 11 or 10 or 7 (32-bit or 64-bit)
- At least 2 GB of memory (4 GB or more recommended)
- 1024 x 768 dots or higher resolution
- 20 GB or more free hard disk space (more space required for saving data)
- CD-ROM drive
- Mouse or other pointing device
- VISA libraryNI-VISA 4.1 or later; Keysight IO Libraries Suite 14.1 or later; or KI-VISA 4.2.2 or later
- USB cable (when using USB)
- GPIB card and IEEE488 cable (when using GPIB)
- Cross serial cable (when controlling AC power supply via RS232C)
- CompactFlash Type I (CFA), up to 512 MB (when using KHA3000 files)
