Overview

RMF4 and RMF4M are rack mount frames to be used with standard racks. Designed to meet the EIA/JIS standards, they are used to install models ranging from 1/2 rack to 1/6 rack in width using a rack mount frame bracket.

Rack mount frame

RMF Series

ZOOM
Product nameSeriesTypeWidthRack mount frame model No.Bracket necessary when fastening mainframe to rack mount frame
JIS Standard Rack (Millimeter Size)EIA Standard Rack (Inch Size)Panel width(*1)
DC Power SupplyPAN-E175W1/4RMF4MRMF44(*2)B42
350W 700W1/2B22
PAN-A01/4B42
I2 [I3]1/2B22
PALI2 [I3]1/2
PDM35-31/2
PADI1/2
Electronic loadPLZ-W2I1/6B24(B11)
II1/3
PLZ-152WA1/24B22
PLZ-WI2 [I3]1/24(*2)
Power Supply ControllerPIA4810 PIA48201/24(*2)B2-PIA4810/20
PIA32001/4B4-PIA
DPO2212A(1/2)
B24

※ EIA panel width is 44.45 mm (1 3/4 inch). The panel width does not include the rubber feet, casters, and levelers.※1 Since there are force-aid cooling intake holes in the side or top and bottom of the mainframe, when mounting in the rack, the blank panel at least 1 panel wide must be installed.※2 Because of natural air cooling, heat dissipation measures are required when mounted in a rack.※3 The instrument may fall. Install the suitable support angles applying to the used rack system to support the instrument.

Product Catalog

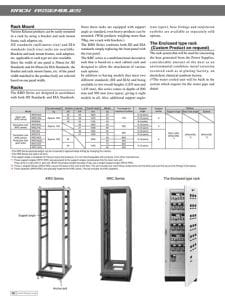

Rack assemblies 10.86 MB
